Haomei Aluminum supplies 1100 color coated aluminum sheet for decorative panels, appliance panels, signage, ceiling systems, aluminum composite panels and other fabricated products that require good formability, weldability and corrosion resistance.
1100 aluminum is a commercially pure aluminum alloy with excellent workability and a relatively soft, ductile structure. After surface preparation and coil coating, it provides a practical combination of appearance, surface protection and fabrication performance.
- Alloy: AA 1100
- Form: Sheet / Coil
- Coating: PE / HDP / PVDF
- Supply: Custom

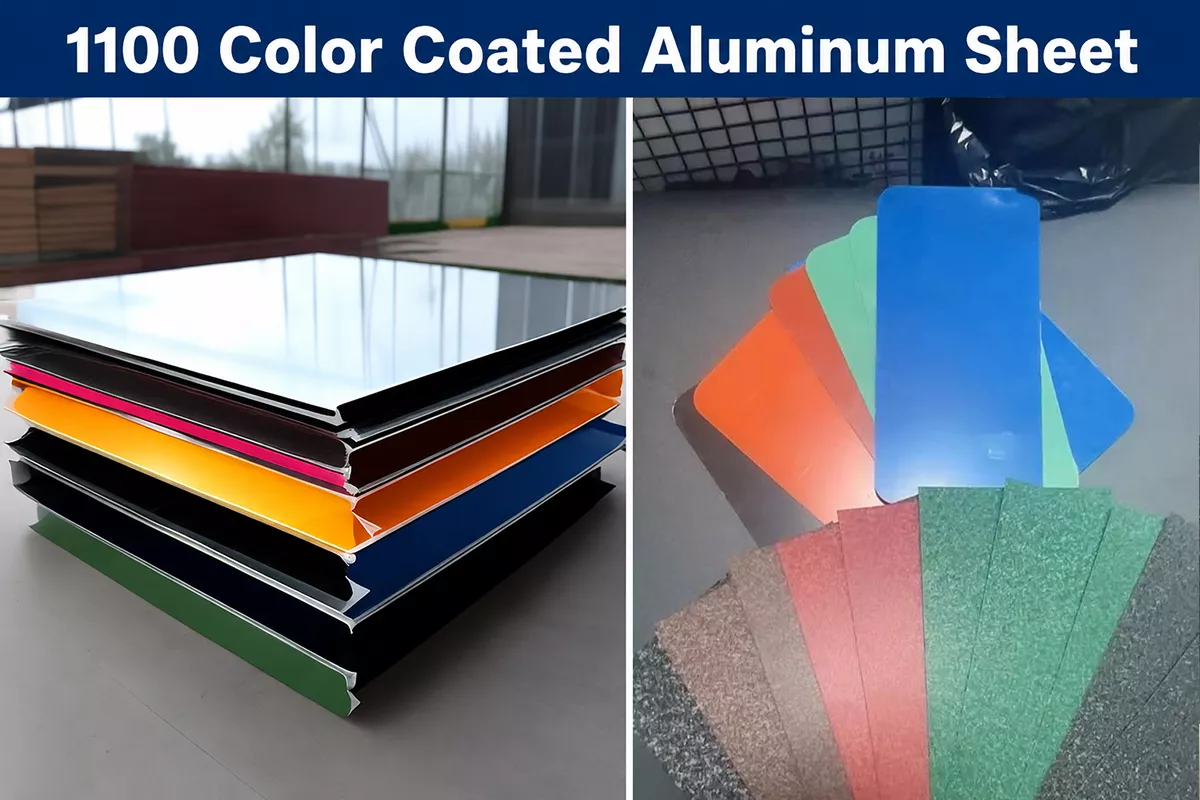

1100 Color Coated Aluminum Sheet in customized colors, widths, coatings and surface finishes.
Why Choose 1100 Color Coated Aluminum Sheet?
1100 aluminum is a widely used pure aluminum grade for coated sheet and coil production. Its relatively low strength is balanced by excellent workability, making it suitable for products with bending, stamping, roll forming and decorative surface requirements.
- Excellent formability for bending, stamping, roll forming and deep drawing
- Good corrosion resistance for indoor and general environmental applications
- Reliable weldability for fabricated decorative and industrial components
- Smooth coated surface with uniform color and gloss
- Lightweight material that reduces transportation and installation costs
- Good thermal and electrical conductivity
- Available in coil, sheet, strip and cut-to-length panels
- Supports customized colors, dimensions and coating systems
If you need more strength than 1100 aluminum can provide, 3003 color coated aluminum coil is a practical alternative for applications where added strength and formability are important. For projects that still call for a commercially pure aluminum substrate, 1050 color coated aluminum sheet and coil is another option to consider.
1100 Color Coated Aluminum Sheet Specifications
Haomei Aluminum can supply 1100 pre-painted aluminum in coil, sheet, strip and cut-to-length formats. Customized specifications are available according to processing requirements and final application conditions.
| Alloy | AA 1100 |
| Aluminum Content | ≥ 99.0% |
| Temper | O, H12, H14, H16, H18, H19, H22, H24 and customized |
| Product Form | Coil, sheet, strip, cut-to-length panel |
| Thickness | 0.20 mm–3.00 mm, or customized |
| Width | 20 mm–1, 650 mm, or customized |
| Coil Inner Diameter | 150 mm, 300 mm, 405 mm, 505 mm, 508 mm |
| Coil Weight | According to customer requirements |
| Surface Finish | Color coated, smooth, embossed, brushed, matte, high gloss |
| Coating Type | PE, HDPE, PVDF, SMP and customized systems |
| Paint Thickness | Customized according to coating type and application |
| Protective Film | Available on request |
| Color Standard | RAL, Pantone, customer sample or customized color |
| Standard | ASTM, EN, JIS, GB/T or customer specification |
| Packaging | Export seaworthy packaging, moisture protection and customized loading requirements |
Actual thickness tolerance, coating thickness, color difference, gloss level and mechanical requirements can be confirmed before production based on the intended use of the product.
PE, HDP and PVDF Coating Options for 1100 Aluminum
The right coating system depends on where the 1100 aluminum will be used, how the material will be formed and the level of outdoor durability required. Haomei Aluminum can supply 1100 color coated aluminum in different coating systems, allowing the same aluminum substrate to be matched to interior, general-purpose or demanding exterior applications.
PE Coating
PE coating is a practical choice for interior panels, ceilings, decorative components and other products where color, surface appearance and cost are key considerations. It is also widely used for general-purpose 1100 coated aluminum products that are not exposed to severe outdoor conditions.
- Broad range of standard and custom colors
- Well suited to interior decorative applications
- Good surface appearance for formed panels
- Cost-effective option for general-purpose products
HDP Coating
HDP coating is worth considering for 1100 aluminum products that will see more outdoor exposure than typical interior applications. Compared with standard polyester coating, HDP is generally selected when better resistance to weathering and longer-lasting surface appearance are needed.
- Better weathering performance than standard PE systems
- Suitable for selected exterior applications
- Available in a wide range of colors and finishes
- A practical choice for medium-duty outdoor exposure
PVDF Coating
PVDF coating is normally chosen for architectural and other demanding exterior applications where long-term color retention, weather resistance and appearance are important. For 1100 color coated aluminum used on building facades, wall systems and other exposed components, PVDF can provide a higher-performance coating solution.
- High resistance to outdoor weathering
- Good color and gloss retention over extended exposure
- Suitable for architectural exterior applications
- Custom colors available for project requirements
Need 1100 Color Coated Aluminum for Your Production?
Send us your alloy, temper, thickness, width, coating type, color, quantity, application and destination. Haomei Aluminum can review the specification and recommend a suitable production option.
Send Your Inquiry1100 Color Coated Aluminum Sheet: Colors and Surface Finishes
Haomei Aluminum supplies 1100 color coated aluminum sheet in a wide range of standard colors and surface finishes for roofing, wall panels, ceilings, signage and decorative components. Custom colors can be matched to RAL or Pantone references, physical samples or an approved production sample before full-scale production.
Color Options
- White, off-white and ivory
- Silver and metallic silver
- Black, light gray and charcoal
- Red, blue, green and yellow
- Champagne, bronze and gold
- Orange, brown and other custom colors
- RAL, Pantone or sample-based color matching
Surface Finish Options
- Smooth painted surface
- Matte or low-gloss finish
- High-gloss finish
- Brushed aluminum appearance
- Stucco embossed surface
- Orange peel texture
- Marble and stone-look effects
- Wood grain decorative finish
- Custom printed or laminated patterns
If the project calls for a wood-look or stone-inspired finish rather than a solid color, see our wood grain aluminum coil or stone grain coated aluminum sheet for decorative aluminum surfaces used in architectural and interior applications.
Chemistry Information 1100 Aluminum
| Element | Percentage |
| Al | 99 min |
| Cu | 0.5–2 |
| Mn | 0.05 max |
| Si + Fe | 0.95 max |
| Zn | 0.1 max |
1100 Color Coated Aluminum Sheet Mechanical Properties
| Property | Value |
| Density | 3 g/cm3 |
| Yield Tensile Strength | 17 KSI |
| Ultimate Tensile Strength | 16–21 KSI |
| Brinell Hardness (500 kg load) | 32 |
| Electrical Conductivity | 59% IACS |
| Elongation (in 2 in.) | 1–10% |
| Shear Strength | 11 KSI |
| Machinability | 30% |
| Melting Point | 1190–1215 °F |
What Is 1100 Color Coated Aluminum Sheet Used For?
1100 is particularly useful when a finished component needs easy fabrication together with a clean decorative surface.
Appliance Panels
Coated 1100 aluminum can be used for selected appliance covers, decorative panels and formed components where lightweight construction, appearance and workability are important.
Decorative Panels
Color coated aluminum provides a lightweight sheet material for decorative panel systems that require cutting, bending and other basic fabrication operations.
Advertising Signage
The smooth coated surface can be used for selected advertising boards, signs and display panels where consistent color and clean appearance are important.
Aluminum Composite Panels
Coated 1100 aluminum can serve as a facing material in selected composite panel constructions where surface appearance and forming characteristics are required.
Interior Ceilings
For interior ceiling products, coated 1100 combines low weight, good workability and flexible color options for decorative systems.
Light-Duty Fabricated Products
Other uses can include covers, trims, profiles and fabricated components where processing performance is more important than high structural strength.
Looking for mill-finish 1100 aluminum or other tempers and product forms? Explore our 1100 aluminum products for additional coil, sheet and customized supply options.
Quality Checks for Color Coated 1100 Aluminum
Base Metal
Alloy, temper, thickness, width and substrate surface condition.
Coating Thickness
Coating thickness can be checked against the agreed specification.
Color Consistency
Color appearance can be evaluated against an approved color reference or agreed standard.
Surface Appearance
Finished surface is checked for visible defects, scratches, contamination and coating irregularities.
Coating Adhesion
Coating adhesion can be evaluated according to the applicable technical requirements.
Packaging
Export packing is selected to reduce the risk of moisture, scratches and handling damage during transportation.
1100 vs. 1050 and 3003 Color Coated Aluminum
The best alloy depends on the finished product and production requirements. 1100, 1050 and 3003 can all be used for coated aluminum products, but they offer different balances of formability and strength.
| Factor | 1100 | 1050 | 3003 |
| Formability | Excellent | Excellent | Very Good |
| General Strength | Low to moderate | Low | Higher than 1100 and 1050 |
| Typical Focus | Formability and decorative products | Very high purity and easy forming | Improved strength and practical fabrication |
| Coating Compatibility | Good | Good | Good |
| Typical Uses | Panels, signage, ceilings and appliance decoration | Decorative and light-duty fabricated products | Roofing, panels, gutters and formed products |
FAQ – 1100 Color Coated Aluminum Sheet
What is 1100 Color Coated Aluminum Sheet?
It is 1100 aluminum sheet coated with an organic coating system such as PE, HDP or PVDF. The coating provides the selected color and additional surface protection, while the 1100 aluminum substrate provides good formability and general corrosion resistance.
Why is 1100 aluminum suitable for color coating?
1100 is a commercially pure aluminum alloy with good ductility and workability. This makes it suitable for decorative panels, signage products and light-duty fabricated components where easy processing is important.
Can 1100 Color Coated Aluminum Sheet be bent?
Yes. 1100 aluminum is generally easy to bend and form. However, the required bend radius should be considered together with thickness, temper, coating system and forming equipment.
Which coating is better: PE or PVDF?
Neither coating is universally better. PE is commonly used for interior and general decorative applications, while PVDF is more appropriate for demanding architectural applications requiring higher weathering performance and long-term appearance.
Can Haomei provide custom colors?
Yes. Haomei can discuss standard colors, RAL-based colors and customized colors according to the application. For critical color-matching projects, an approved sample or reference should be confirmed before mass production.
Is 1100 better than 3003 for coated aluminum panels?
The answer depends on the product requirements. 1100 is attractive when easy forming and decorative appearance are priorities, while 3003 is often considered when higher mechanical strength is more important.
Can 1100 coated aluminum be supplied in coil form?
Yes. Depending on the manufacturing process, coated 1100 aluminum can be supplied in coil format for slitting, roll forming, panel production and other continuous fabrication processes.
What information should I include in an inquiry?
Please provide alloy and temper, thickness, width, sheet or coil format, coating type, color, quantity, application, packaging requirements and destination. This allows the manufacturer to prepare a more accurate quotation.
