Haomei Aluminum supplies color coated aluminum foil with a cured coating applied to one or both sides of the aluminum foil substrate. We match the alloy, temper, foil thickness, coating system, color, finish and roll dimensions to the forming, sealing or laminating process rather than using one specification for every application.
- Alloys
- 8011 / 3003 / Selected Grades
- Temper
- O / H12 / H14 / H16 / H22 / H24
- Foil Thickness
- 0.006–0.20 mm
- Width
- 10–1300 mm
- Coating
- Single / Double Sided
- Supply Form
- Jumbo Roll / Slit Roll
What Is Color Coated Aluminum Foil?
Color coated aluminum foil is aluminum foil with a thin cured coating applied to one or both surfaces to provide a specified color, finish or functional surface property. The aluminum substrate provides the lightweight, formable and barrier characteristics of foil, while the coating controls appearance and application-specific performance.
Depending on the end use, the coating may be selected for adhesion, abrasion resistance, heat resistance, chemical resistance, printability or heat sealing. For this reason, color and coating should be specified together with the alloy, temper and foil thickness rather than treated as separate purchasing items.
The coating system is not selected from color alone. Substrate alloy, temper, foil thickness, coating chemistry, coating side and downstream processing should be considered together.
Color Coated Aluminum Foil Specifications
| Item | Haomei Supply Options |
| Alloy | 1050, 1060, 1200, 3003, 3105, 5052, 8006, 8011, 8079 etc. |
| Temper | O, H12, H14, H16, H22, H24 |
| Thickness | 0.006–0.20 mm, subject to alloy and coating specification |
| Width | Up to approximately 1300 mm in the current standard configuration |
| Coating Sides | One side or both sides |
| Surface | Gloss, matte, metallic and specified decorative finishes |
| Core | Paper, steel or aluminum core depending on order requirements |
| Printing color | gold, silver, red, blue, black, gray, white, green, copper, brown, wood, etc. can be customized according to customer requirements |
| Service | Coating, lacquering, brushed, mirror, embossed, lubricating, slitting and cutting, etc. |
Aluminum Foil Coating Options and Color Finishes
The right coating depends on how the aluminum foil will be used. Packaging may require a heat-sealable surface, while industrial applications may need chemical resistance, weather protection or electrical conductivity. Color availability depends on the coating system and should be confirmed alongside thickness, finish and performance requirements.
PE Coated Aluminum Foil
Polyethylene (PE) gives aluminum foil a heat-sealable surface and helps protect it from moisture. It is commonly used in flexible packaging and laminated barrier materials. The PE grade and coating thickness should match the intended sealing conditions and package structure. For food-contact applications, compliance must be verified for the finished material.
PVDF Coated Aluminum Foil
PVDF coatings are often selected where weather resistance and color retention matter. They can suit aluminum foil used in exterior-facing laminates and other exposed constructions, provided the substrate and coating process are compatible. Available colors, gloss levels and durability depend on the formulation and curing conditions.
Epoxy Coated Aluminum Foil
An epoxy coating forms a protective layer that can improve adhesion and resistance to certain chemicals. Typical uses include protective laminates and industrial barrier components. Selection should be based on the substances the foil will contact, its operating temperature and any forming or bonding steps after coating.
PTFE Coated Aluminum Foil
PTFE provides a low-friction, non-stick surface for specialist release and separation applications. Chemical compatibility and service temperature need to be checked for the complete coated foil—not just the PTFE itself. Foil thickness and processing conditions also affect whether this coating is suitable for the final part.
Carbon Coated Aluminum Foil
Carbon coated aluminum foil is used as a current collector in certain lithium-ion battery and supercapacitor designs. The conductive layer can improve contact between the aluminum and electrode material, helping reduce interfacial resistance. Key specifications include coating uniformity, adhesion, coat weight and electrical resistance. Its dark appearance is functional rather than decorative.
Solvent-Free Epoxy Coated Aluminum Foil
Solvent-free epoxy systems provide a protective coating without a conventional solvent carrier. They may be considered when reducing solvent use is a production priority. Coating quality still depends on surface preparation, application control and curing. Chemical resistance, flexibility and any contact-related requirements should be confirmed through testing.
Need a coated aluminum foil specification?
Contact Haomei Aluminum with your alloy, thickness, width, coating and application requirements for a tailored supply solution.
Request a QuoteChoosing a coating? Specify the foil alloy and thickness, end use, exposure conditions and required color or finish. For laminated or formed products, include bonding and forming requirements so the coating can be evaluated as part of the complete material structure.

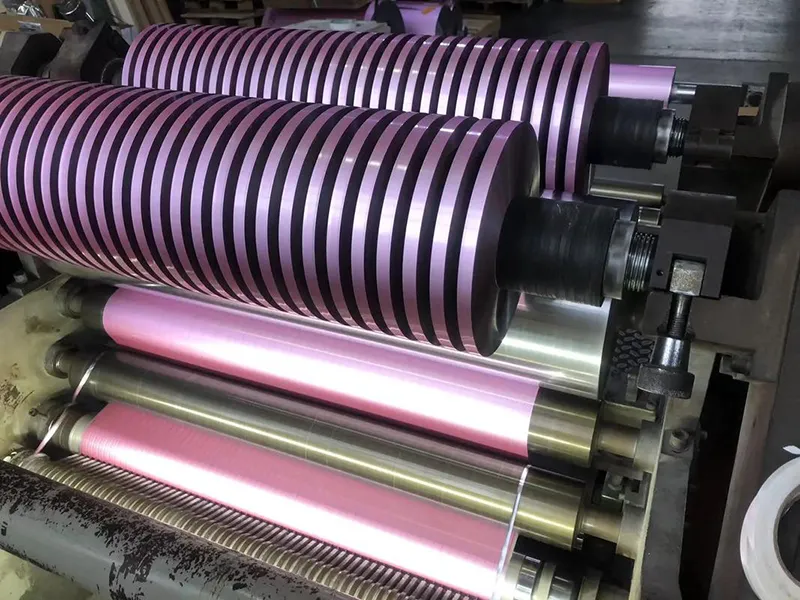

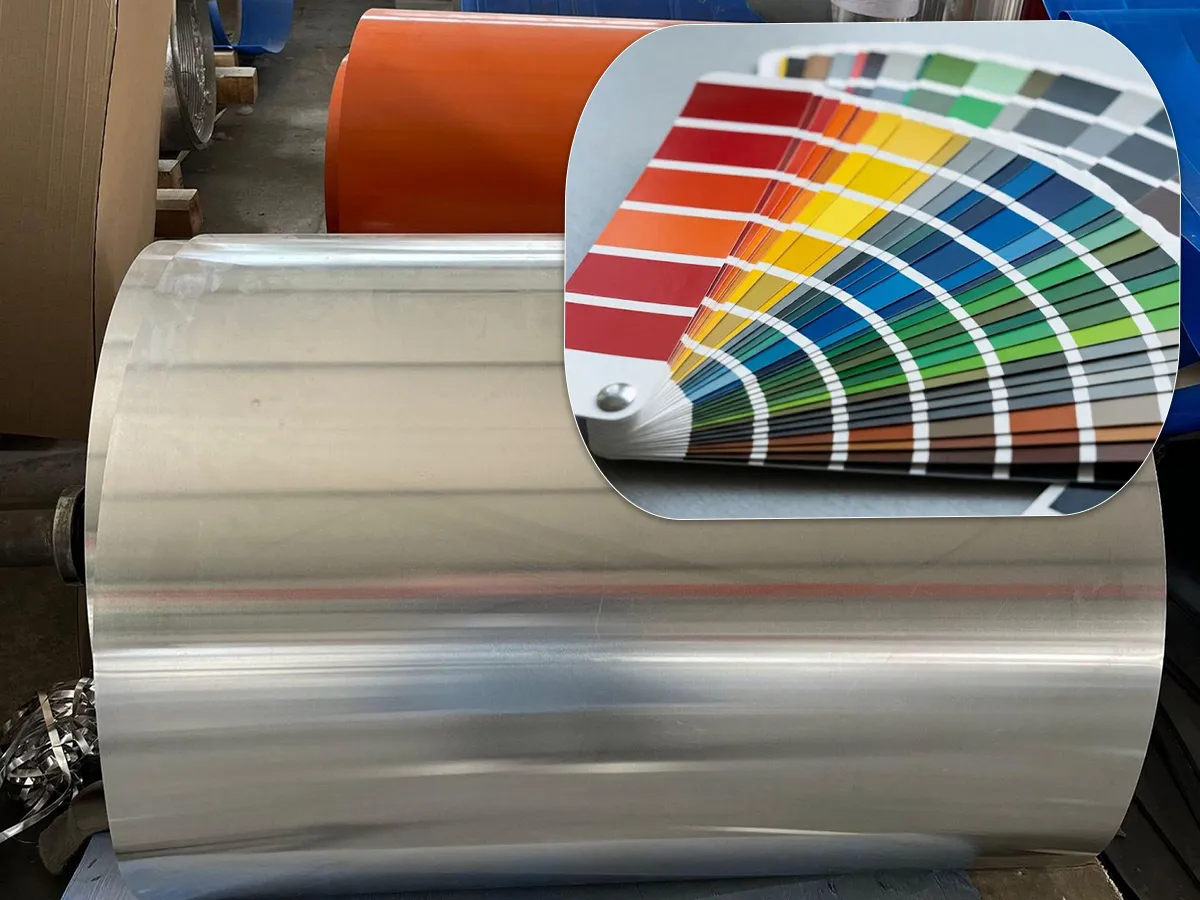

Color Coated Aluminum Foil and Roll Form Product Images
Color Coated Aluminum Foil Applications
Food Containers and Trays
Coated aluminum foil can be used for food containers, takeaway trays and formed packaging where a uniform surface finish and controlled foil performance are required. For standard container grades, see our 8011 aluminum foil and 3003 aluminum foil options.
Heat-Sealing Covers and Lids
Coated foil is suitable for lidding structures where the aluminum layer is combined with a coating or lacquer designed for the required sealing and converting process.
Bottle Labels and Decorative Labels
Color coated aluminum foil provides a smooth printable surface for bottle labels and other decorative labeling applications where appearance, formability and surface consistency need to be balanced.
Air Conditioner and Radiator Fins
Hydrophilic coated aluminum foil is used for heat-exchanger fins in air conditioners and related cooling equipment, where the coating system is selected according to the fin-forming process and service environment.
Fin Stock Coating
Coated fin stock is supplied in roll form for downstream slitting, fin forming and heat-exchanger production, with alloy, thickness, width and coating requirements defined around the manufacturing process.
Caps, Closures and Bottle Ends
Coated aluminum foil and thin-gauge aluminum materials can be processed into caps and closures where surface appearance, formability and compatibility with the converting or sealing process are important.
Roofing and Building Covering
Color coated aluminum is used for selected roofing and building covering applications where a lightweight metal substrate and a durable colored surface are required.
Furniture and Interior Decoration
Colored and lacquered aluminum surfaces can be used for furniture components and decorative panels where designers require consistent appearance together with the processing characteristics of aluminum.
Pharmaceutical Blister Packaging
Coated aluminum foil is used as part of pharmaceutical blister packaging structures, with foil thickness, coating, surface condition and roll specifications selected according to the forming and sealing process.
Haomei Color Coated Aluminum Foil Manufacturing Process
-
Foil Substrate Inspection and Preparation The aluminum foil substrate is checked for alloy, thickness, width and surface condition before coating. The foil is prepared to provide a clean and uniform surface for the coating process.
-

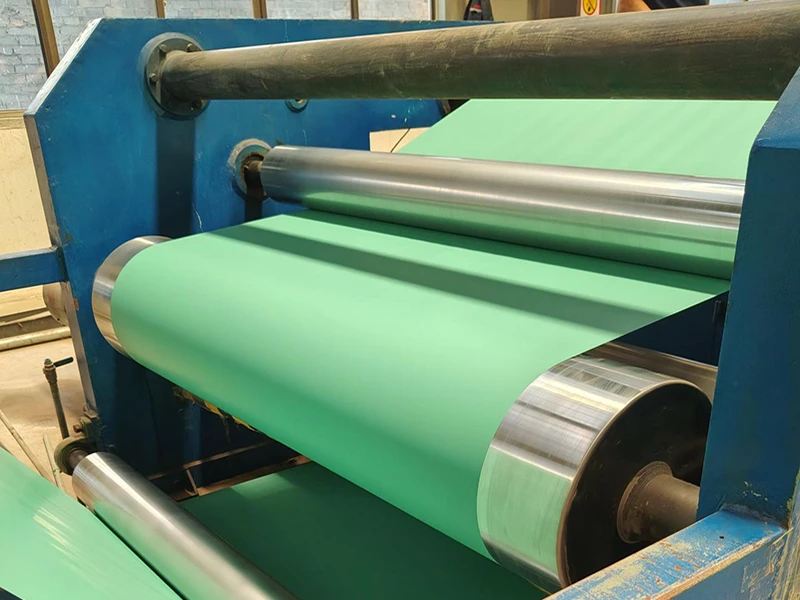

Color Coating Application The selected coating is applied to one or both sides of the aluminum foil according to the required color, coating type, coverage and application. Coating conditions are controlled to maintain a consistent finish across the roll.
-
Drying and Curing The coated foil passes through controlled drying and curing to set the coating and develop the required adhesion, surface finish and handling performance.
-
Slitting and Roll Winding After coating, the aluminum foil can be supplied in jumbo rolls or slit to the required width. Roll winding is controlled according to the specified core size, outer diameter and downstream converting requirements.
-
Final Inspection and Packing Finished rolls are inspected for thickness, width, surface appearance, coating condition and winding quality. After approval, the color coated aluminum foil is packed according to the shipment requirements.
Quality Control for Haomei Color Coated Aluminum Foil
- Foil thickness and width: Check dimensions against the ordered size and agreed tolerances.
- Coating appearance and color: Inspect the finish for visible unevenness and color variation.
- Coating thickness or weight: Check the specified coating measurement where it forms part of the order requirements.
- Coating adhesion: Assess adhesion to the aluminum substrate using the agreed test method and acceptance criteria.
- Surface condition: Inspect for scratches, contamination and other visible defects that could affect appearance or further processing.
- Roll dimensions and winding: Check roll outside diameter, core inside diameter, winding quality and edge condition against the converting requirements.
- Mechanical properties: Verify the properties required for the specified alloy and temper.
Custom Color Coated Aluminum Foil from Haomei
Foil Thickness Specify the thickness required for forming, stamping or laminating. We confirm the alloy and temper alongside the gauge to match your processing needs.
Jumbo & Slit Widths Order jumbo rolls for further converting or slit rolls to fit your production line. The required width is confirmed before production.
Coating & Color Specify the color, gloss and surface finish your product requires. We also confirm the coating type and whether one or both sides need coating.
Roll & Packing Specifications Set the core inside diameter, roll outside diameter and winding requirements to suit your equipment.
Request Your Color Coated Aluminum Foil Quote
Tell us your alloy and temper, foil thickness and width, coating type, color or finish, roll format and order quantity.
Request a QuoteFAQ – Color Coated Aluminum Foil
What is the difference between color coated aluminum foil and plain aluminum foil?
Plain aluminum foil has a mill-finish surface, while color coated aluminum foil has an additional cured coating on one or both sides. The coating can provide color, surface finish and application-specific performance.
Can Haomei supply single-sided and double-sided coated foil?
Yes. Haomei can supply single-sided or double-sided coated aluminum foil according to the application. One side can remain uncoated while the other receives the specified colored or functional coating, or both sides can be coated when required.
Which aluminum alloys are commonly available for color coated foil?
Haomei currently publishes 8011 and 3003 for its standard color coated aluminum foil configurations. The alloy and temper can be selected according to the forming process and end-use requirements.
Can the color of coated aluminum foil be customized?
Yes. Custom colors and finishes can be discussed based on a color sample, reference standard or customer specification. Gloss level and coating requirements should be confirmed together with the required color.
Can color coated aluminum foil be supplied as slit rolls?
Yes. Haomei can supply color coated aluminum foil in jumbo rolls or slit rolls according to the required width, core size, roll diameter and downstream processing conditions.
