HDP coated aluminum coil is a prepainted aluminum product designed for exterior applications that need better weatherability than standard PE coating. It is commonly selected for roofing sheets, wall panels, commercial façades, canopy systems and other building components exposed to sun, rain and seasonal temperature changes.
For many projects, HDP provides a practical middle option: it offers improved outdoor durability compared with conventional polyester paint, while avoiding the higher material cost associated with PVDF systems where that level of performance is not required.
Haomei Aluminum supplies HDP-painted aluminum coil based on confirmed substrate alloy, temper, coating specification, color and final processing requirements. Send your application, dimensions and color reference so our team can confirm a suitable coating system before production.
Specification of HDP Aluminum Coil
| Aluminum alloys | 1050, 1060, 1100, 3003, 3004, 3105, 5052, 5005, 5754, 8011, etc. |
| Thickness | 0.08-5.0mm |
| Width | ＜2650mm |
| Coils Core Diameter | 150mm , 405mm, 505mm, 508mm, 510mm |
| Topcoat Thickness | 18–25 μm |
| Primer Thickness | 5–8 μm |
| Back Coat Thickness | 5–10 μm |
| Color | Solid colors, metallic finishes, or customized (RAL / Pantone color matching available) |
| Coating lifetime | 8~15 years indoor or outdoor |

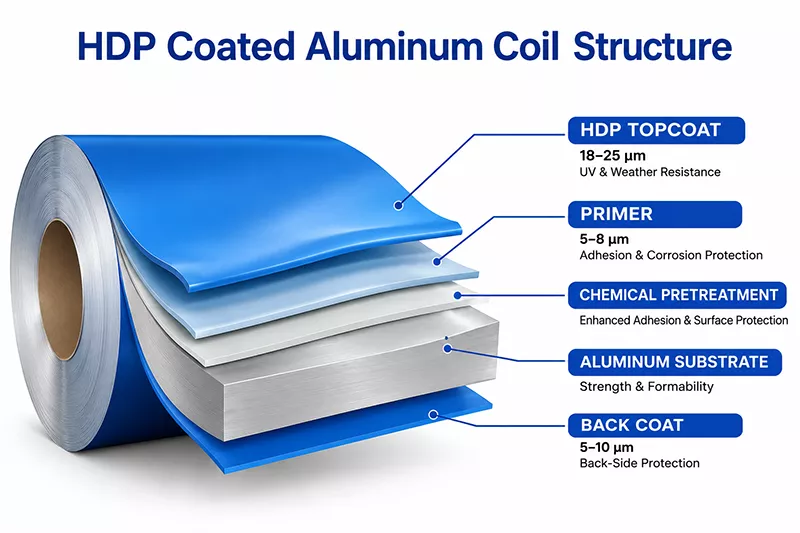

HDP Coated Aluminum Coil Structure
HDP coated aluminum coil is built as a multi-layer coating system rather than a single paint layer. Each layer has a specific role, from surface protection and color retention to adhesion and corrosion resistance.
- HDP topcoat (18–25 μm) The outer coating provides the visible finish and protects the aluminum surface against UV exposure, weathering, moisture and everyday wear.
- Primer (5–8 μm) The primer bonds the treated aluminum surface to the HDP topcoat while adding another barrier against corrosion and helping maintain coating adhesion.
- Chemical pretreatment layer A thin conversion coating improves paint adhesion and provides additional protection at the metal-coating interface.
- Aluminum substrate The aluminum alloy provides the structural base of the coil. Alloy and temper are selected according to the required formability, strength and end-use performance.
- Back coat (5–10 μm) The reverse-side coating protects the back surface during storage, fabrication and installation. Its formulation and thickness can vary by application.
This layered construction combines a durable coated surface with the lightweight and fabrication advantages of aluminum, making HDP coated aluminum coil suitable for building panels, roofing, ceilings, facades and other general outdoor applications.
HDP Coated Aluminum Coil Advantages
Better Outdoor Weather Resistance
HDP coating provides improved resistance to UV exposure, humidity and weathering compared with standard PE coating, making it suitable for many outdoor applications.
Good Color & Gloss Retention
The coating helps reduce fading, chalking and loss of surface gloss under sunlight, helping exterior panels and roofing maintain a consistent appearance.
Good Fabrication Performance
HDP coated aluminum can be processed by common methods such as bending, cutting, roll forming and stamping when the coating system is properly matched to the application.
Durable Coated Surface
The multi-layer coating system adds protection against everyday handling, minor scratches and environmental exposure during fabrication and service.
Balanced Performance & Cost
HDP offers a practical middle ground between standard PE and premium fluorocarbon coatings for projects requiring better weatherability without the highest coating cost.
Wide Range of Applications
HDP coated aluminum coil is used for roofing, facade panels, ceilings, ACP skins, decorative panels and other building products requiring a durable colored surface.
Popular Aluminum Substrate Alloys for HDP Coated Coil
The performance of prepainted aluminum coil depends on more than the coating system. The base alloy and temper influence formability, mechanical strength, flatness, corrosion resistance and the appearance of the finished panel.
Haomei Aluminum can recommend a suitable aluminum substrate based on the panel design, bending radius, forming method, service environment and required mechanical properties. Common substrate options for color-coated aluminum coil include 3003 and 3105 aluminum alloy, subject to final production and technical confirmation.
Common Substrate Options
- 3003 aluminum alloy: Often selected where good formability and corrosion resistance are required. It is suitable for profiles and panel products that need further bending, roll forming or pressing. Learn more about 3003 color coated aluminum coil .
- 3105 aluminum alloy: Commonly used for prepainted building sheet, roofing, cladding and related architectural applications. It offers a practical balance of strength, workability and coating compatibility. See 3105 prepainted aluminum coil .
To confirm the most suitable material, please provide the intended application, coil thickness and width, required temper, forming process, coating type and performance requirements. Final alloy and temper selection should be confirmed according to the actual production specification.
Typical Applications of HDP Coated Aluminum Coil
HDP coated aluminum coil is widely used for exterior building products that require a durable, color-finished aluminum surface. Its balance of weather resistance, color retention and forming performance makes it suitable for roofing, wall systems, trims and other architectural components.
- Metal roofing sheets, standing-seam roofs and corrugated roofing panels
- Exterior wall cladding, insulated sandwich panels and composite panel skins
- Commercial façades, shopfronts and architectural exterior panels
- Canopies, soffits, suspended ceiling systems and eave components
- Gutters, downpipes, roof flashings, edge trims and rainwater systems
- Prefabricated buildings, modular structures and portable building systems
- Warehouse, retail, agricultural and light-industrial building envelopes
- Decorative panels requiring a consistent, pre-finished aluminum color surface
Choosing HDP Coated Aluminum for Roofing
Roofing performance depends on more than the coating alone. Coil thickness, alloy, paint system, panel profile, forming method, roof slope and local climate should all be evaluated before production. For guidance on selecting material for roofing panels, visit our color coated aluminum coil for roofing guide .
When Is HDP Coated Aluminum Coil the Right Choice?
HDP coated aluminum coil offers a practical balance between standard PE-coated aluminum and higher-performance PVDF systems for exterior applications.
HDP coating is often chosen when a project needs better color retention, UV resistance and weatherability than conventional PE coating can provide, but does not require the higher specification and cost typically associated with PVDF-coated aluminum coil.
The best coating system depends on the actual service environment. Before selecting HDP, consider local climate, sunlight intensity, salt exposure, air pollution, panel design, forming requirements, coating thickness and warranty expectations. Projects in coastal, highly polluted or extreme-UV locations may require a higher-performance PVDF coating system.
HDP vs. PE vs. PVDF Coated Aluminum
Coating selection should be based on application, local exposure conditions, building specification, forming requirements and total project budget.
| Coating System | Typical Positioning | Suitable Project Type | Buyer Consideration |
| PE | General-purpose polyester coating | Indoor use, protected locations and budget-sensitive applications | Lower initial cost; outdoor performance requirements should be reviewed carefully. |
| HDP | High-durability polyester coating | General exterior roofing, wall panels and commercial construction | A practical upgrade where improved weatherability is needed without moving to PVDF. |
| PVDF | Premium fluorocarbon coating system | High-UV, demanding exterior and long-term façade applications | Usually selected where environmental exposure and project specifications justify the higher cost. |
When PE May Be Sufficient
If your project is mainly cost-driven and located in a protected or less demanding environment, a PE coated aluminum coil may be sufficient. Final selection should consider actual site conditions and the finished product design.
When PVDF Should Be Reviewed
For projects exposed to stronger UV radiation, severe coastal conditions or stricter façade specifications, review our PVDF coated aluminum coil options.
The correct selection is not determined by coating name alone. Haomei Aluminum reviews the end use, local exposure conditions, panel profile, coating requirement and substrate specification before confirming production.

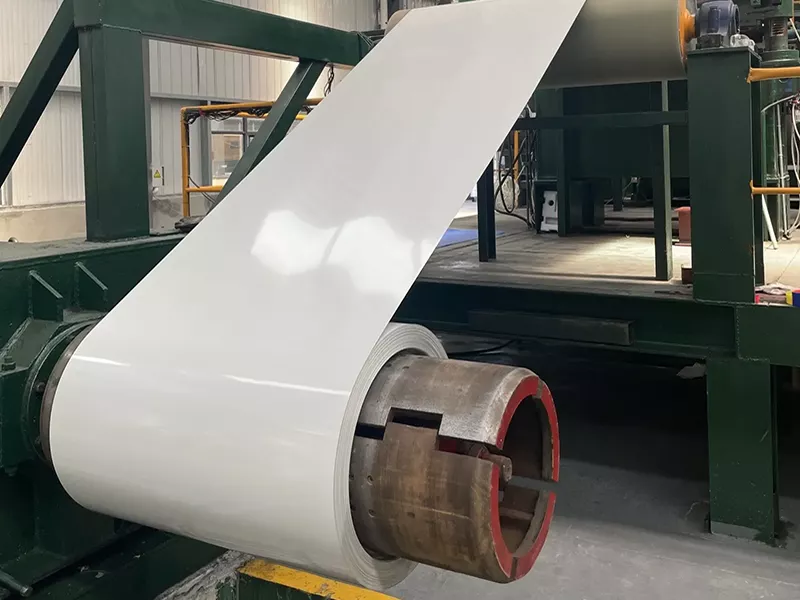

HDP Coated Aluminum Coil Production
HDP coated aluminum coil is produced against the confirmed alloy, temper, dimensions, color and coating specification. From substrate selection to final packing, each order is controlled according to the agreed technical requirements.
Aluminum Substrate and Order Review
Before production, the required aluminum alloy, temper, coil thickness, width, coating color, gloss level and surface finish are checked against the purchase order. Substrate condition and coil dimensions are confirmed before the coating process begins.
Surface Preparation and HDP Coil Coating
The aluminum strip is cleaned and pretreated before coating. Primer and HDP topcoat are applied in accordance with the approved coating system, followed by controlled curing to achieve the specified appearance and coating performance.
In-Process Inspection and Final Verification

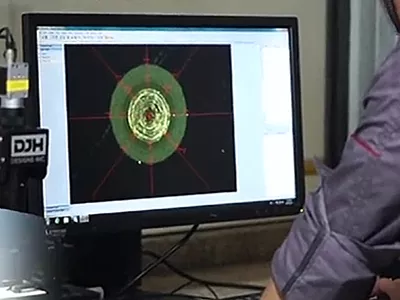

Finished HDP coated aluminum coils are checked for color consistency, gloss, coating appearance, coating thickness and dimensions. Additional tests, such as adhesion or bend performance, can be carried out when required by the applicable specification or customer agreement.

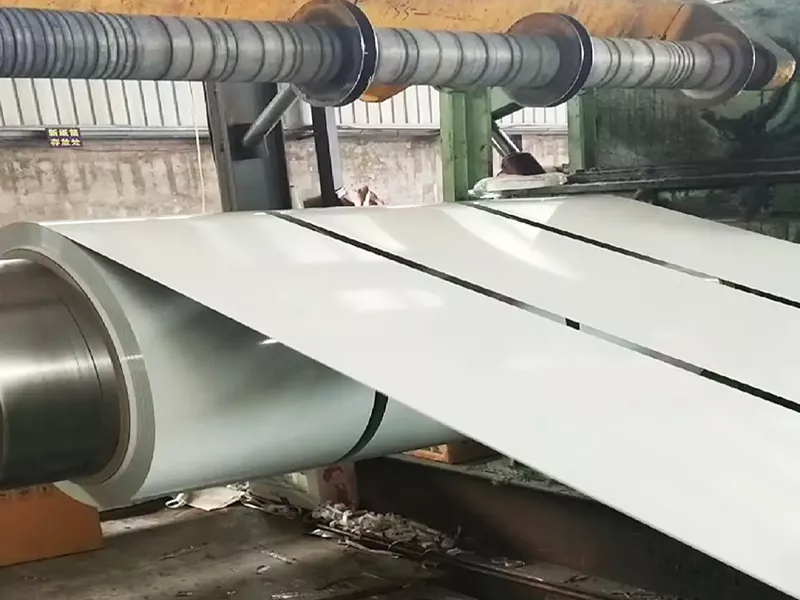

Slitting, Recoiling and Export Packing
Coils can be supplied in master coil, slit coil or cut-to-length sheet form, subject to the confirmed order. Finished material is packed to help protect coil edges, coated surfaces and coil stability during handling, storage and international shipment.
Quality Control for HDP Painted Aluminum Coil
- Coil thickness and width measurement
- Coating thickness measurement
- Color difference evaluation
- Gloss measurement
- Surface appearance inspection

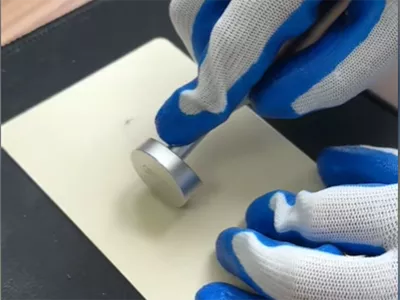

- Adhesion testing
- Pencil hardness testing
- T-bend or forming evaluation where required
- Impact resistance testing where required
- Solvent resistance testing where required
- Coil edge, surface cleanliness and packaging inspection

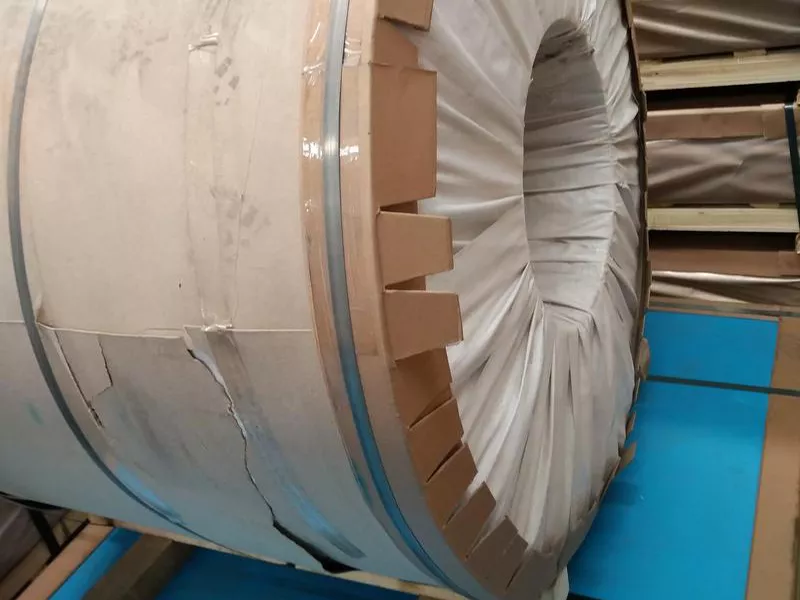

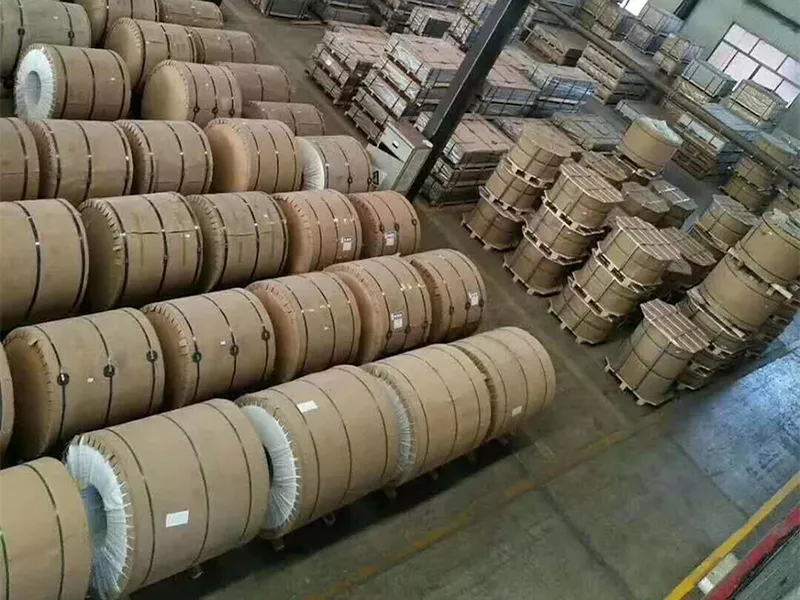

HDP Painted Aluminum Coil Packaging & Export Shipping
- Inner wrapping for moisture and surface protection
- Edge protection where required
- Coil eye-to-wall or eye-to-sky packing arrangement
- Wooden pallet or support structure where applicable
- Steel strapping and external protective wrapping
- Clear labels showing coil identification and order information
- Container loading plans based on coil weight and destination requirements
Information Required for HDP-Coated Aluminum Coil Quotation
Provide as much of the following information as possible so Haomei Aluminum can recommend an appropriate HDP-coated coil and prepare an accurate quotation.
- End application: roofing, wall cladding, façade panel, trim, rainwater system or other use
- Destination country or project environment
- Required alloy and temper, if specified
- Thickness and width
- Coil weight, coil ID and preferred supply form
- Color reference, gloss requirement and surface finish
- Front and back coating requirement
- Whether the coil will be roll formed, bent, stamped, embossed or slit
- Required standards, test items or project documents
- Packing and shipping requirements
Need HDP Coated Aluminum Coil for Your Project?
Send your application, thickness, width, color reference, required quantity and destination. Haomei Aluminum will review the coating, substrate and supply requirements before quotation.
Request a QuoteFAQ – HDP Coated Aluminum Coil
What does HDP mean in coated aluminum coil?
HDP generally refers to a high-durability polyester coating system used for prepainted metal. It is often selected for exterior applications requiring better weatherability than standard PE coating.
Is HDP coating better than PE coating?
For many outdoor applications, HDP is selected when improved weatherability is needed compared with conventional PE coating. However, the suitable coating depends on UV exposure, climate, panel design, coating thickness, color and project requirements.
When should PVDF be considered instead of HDP?
PVDF may be considered for projects with more demanding exposure conditions, high UV levels, premium façade specifications or project requirements that specifically call for fluorocarbon coating. The final selection should be based on the project specification and local environment.
Can HDP coated aluminum coil be used for roofing?
Yes, it is commonly considered for roofing products, provided the aluminum alloy, temper, thickness, coating system and forming process are matched to the roofing design and local service conditions.
Can Haomei Aluminum provide custom colors?
Custom color production can be evaluated based on an approved color reference, such as a physical sample, RAL reference, Pantone reference or customer-approved color card. Availability depends on the confirmed coating system and order requirements.
Can I request samples before placing an order?
Yes. Sample availability, color card options and sample dimensions should be confirmed with the Haomei Aluminum sales team based on the requested product specification.
