3003 h22 aluminum sheet

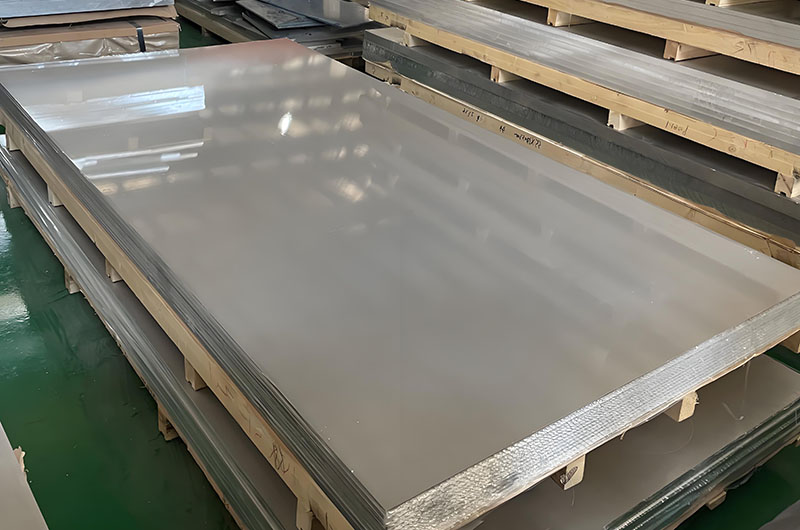

3003-H22 aluminum sheet is a typical product of the commonly used 3003 aluminum alloy in H22 temper, belonging to the aluminum-manganese (Al-Mn) rust-resistant aluminum alloys. The H22 temper indicates that the material has undergone strain hardening with partial annealing, with mechanical properties between fully annealed (O temper) and fully hardened (H28) conditions, achieving a good balance between strength and formability.
Thanks to a manganese content of approximately 1.0–1.5%, 3003-H22 aluminum sheet maintains excellent corrosion resistance while offering higher strength and more stable processing performance compared to pure aluminum. This alloy cannot be strengthened through heat treatment, but it exhibits excellent cold workability and good weldability, suitable for various processing methods such as stamping, bending, and rolling.
In practical applications, 3003-H22 is often available as patterned aluminum sheets (diamond plate, anti-slip plate), with clear surface textures and high gloss. It provides good anti-slip and traction performance while also offering decorative and practical qualities, making it particularly popular in applications with higher aesthetic requirements.
3003-H22 aluminum alloy sheets are economical, versatile, and medium-strength aluminum materials, especially suitable for applications that require good formability along with certain corrosion resistance and appearance quality, such as patterned plates, protective tread plates, roofing systems, wall cladding, fuel tanks, pipelines, and various industrial and architectural components.
Haomei 3003 H22 Aluminum Sheet Specifications
| Item | Content |
| Thickness Range | 0.063 inches (1.6 mm) to 0.25 inches (6.35 mm) |
| Dimensions | Standard sheet maximum size: 48 inches x 192 inches; custom lengths available (e.g., 4 inches x 120 inches coil) |
| Standards and Certifications | Conforms to ASTM B209 standard; RoHS compliant, environmentally tested |
3003-H22 Aluminum Alloy: Composition and Temper Overview
3003-H22 is a commonly used designation for 3000 series aluminum alloys, where the numbers and letters correspond to alloy composition and temper condition. This material is widely used in industrial and decorative fields due to its good formability, stable mechanical properties, and excellent corrosion resistance.
3003
3003 is a typical aluminum-manganese (Al-Mn) alloy, with manganese as the main alloying element. By adding an appropriate amount of manganese to commercially pure aluminum, 3003 aluminum alloy increases strength by approximately 20% compared to 1100 pure aluminum without significantly reducing ductility, while maintaining good machinability, weldability, and corrosion resistance. This alloy cannot be strengthened by heat treatment and relies on cold working to enhance its strength.
H22
H22 is a typical temper designation for strain-hardened aluminum alloys, with the specific meaning as follows:
- H: Indicates the material has undergone cold working (strain hardening) to improve strength.
- The first "2": Indicates that after work hardening, partial annealing or stabilization has been performed to relieve some internal stress, making performance more stable.
- The second "2": Indicates the hardness level, which is 1/4 of the 1–8 hardness scale, with hardness between fully annealed (O temper) and higher hardened states (such as H14, H28).
In the H22 temper, 3003 aluminum alloy achieves a good balance between strength and formability: it has higher strength than O temper, but is easier to bend, stamp, and form than fully hardened conditions, reducing the risk of cracking. At the same time, its corrosion resistance and surface quality remain stable, making it very suitable for applications that require certain structural strength while emphasizing ease of processing.
Therefore, 3003-H22 aluminum sheets are commonly used in patterned plates, anti-slip plates, decorative panels, roofing systems, fuel tanks, pipelines, and various lightweight structural components, making it a practical aluminum alloy material that balances performance, cost, and processing adaptability.
Haomei Aluminum 3003-H22 Aluminum Tread Plate In-Stock Recommendation
As a leading aluminum manufacturer, Haomei Aluminum’s 3003-H22 aluminum alloy tread plate is widely favored in both industrial and civilian sectors for its excellent corrosion resistance and moderate strength. The H22 work-hardened temper ensures higher compressive strength while maintaining good toughness.
If you are looking for specific sizes or thicknesses of aluminum plates, below are some popular options currently available from Haomei Aluminum:
0.125" Aluminum Tread Plate 3003-H22
- Thickness: 0.125 inches (3.175 mm)
- Features: Raised anti-slip patterns significantly enhance bending stiffness and effectively mask minor scratches from daily use.
- Recommended Uses: Suitable for anti-slip walkways, industrial flooring, and outdoor facilities in harsh environments, achieving an ideal balance between weight and durability.
1/4" Aluminum Tread Plate 3003-H22
- Thickness: 0.25 inches (6.35 mm)
- Standard: Strictly conforms to ASTM B209 international standards.
- Recommended Uses: Designed for high-load applications, suitable for large industrial work platforms, special vehicle chassis, and high-strength dock facilities, providing excellent structural stability and impact resistance.
0.100" 3003-H22 Tread Brite Sheet
- Thickness: 0.100 inches (2.54 mm)
- Surface Treatment: Finely polished to achieve a high-reflective bright finish.
- Recommended Uses: Combines practicality with aesthetics, widely used for precision instrument housings, interior decorative trims, and walls in food or pharmaceutical laboratories that require strict cleanliness standards.
Comparison of 3003-H22 Aluminum with Similar Tempers
| Temper | Strength | Formability | Suitable Applications |
| 3003-O | Lowest | Best | Products requiring complex deep drawing and stretching |
| 3003-H22 | Medium | Good | Patterned plates, general bending components |
| 3003-H24 | Higher | Moderate | Fixed panels, structural components |
| 3003-H28 | Highest | Lower | Flat applications with high-strength requirements |
3003 H22 Aluminum Properties
| Property Category | Description |
| Hardness and Strength | 3003 H22 Aluminum Sheet has hardness and strength between the fully annealed (O temper) and fully cold-worked states (such as H18), offering moderate strength. It is suitable for applications that require mechanical strength without extreme hardness, such as automotive body panels, ventilation systems, and architectural exterior materials. |
| Toughness | The sheet exhibits excellent toughness. Compared with harder tempers (like H24 or H28), it maintains good formability and fracture resistance while providing relatively high strength. This makes it ideal for structural components that undergo processes such as stamping and bending. |
| Corrosion Resistance | 3003 H22 Aluminum Sheet offers outstanding corrosion resistance, effectively resisting humid air, moisture, and mild acidic or alkaline environments. It is widely used in kitchen equipment, food containers, ship structures, and outdoor equipment exposed to humid or corrosive conditions. |
| Formability and Weldability | This aluminum sheet provides excellent formability and weldability, supporting processes such as stamping, deep drawing, bending, and rolling. It can be joined using conventional welding methods, including TIG, MIG, and resistance welding, making it suitable for complex component manufacturing. |
| Film Laminating/Coating Compatibility | The surface can undergo film laminating or coating treatment, enhancing both appearance and surface wear and corrosion resistance. This makes it widely applicable in indoor and outdoor decoration, billboards, curtain walls, and architectural interior design. |
| Corrosion Resistance (Marine/Industrial) | The sheet maintains exceptional corrosion resistance in marine environments, areas with industrial pollution, and conditions affected by acid rain. It is commonly used in ship interiors, transportation equipment, and industrial equipment casings where high corrosion resistance is essential. |
| Lightweight | With a density of 2.7–2.8 g/cm³, 3003 H22 Aluminum Sheet is much lighter than traditional steel. This facilitates handling, installation, and usage while effectively reducing overall structural weight, making it a preferred choice for energy-saving and environmentally friendly designs. |
| Aesthetic | The sheet has a smooth and bright surface that can achieve a mirror-like finish after polishing or rolling. It is widely used in products requiring high visual appeal, such as light fixtures, home appliance casings, display racks, and decorative panels. |
| Weldability | 3003 H22 Aluminum Sheet can be welded effectively using common welding methods like gas welding and arc welding. Welded joints maintain high strength and corrosion resistance, suitable for structural applications including pipe connections and box assembly. |
| Surface Treatment Options | Available with a rolled or pressed diamond pattern surface, the sheet not only enhances visual appeal but also improves practical functionality. It is particularly suitable for flooring, protective steps, and vehicle interiors where aesthetics and utility are both important. |
| Anti-Slip Surface | With embossed patterns such as diamond, orange peel, or checkerboard, the sheet provides excellent friction and anti-slip properties. This makes it ideal for high-traffic areas, including stair treads, elevator floors, sidewalks, and vehicle undercarriages. |
| Not Heat Treatable | 3003 H22 Aluminum Sheet cannot be heat treated to increase strength. Instead, its mechanical properties are developed through cold processing (e.g., rolling), ensuring stability and making it suitable for applications requiring high dimensional and structural reliability. |
3003 H22 Aluminum Sheet Applications
Suitable for industrial applications that require medium strength and adequate flexibility, such as sheet metal processing and lightweight structural components.
Best Uses of 3003-H22
- Aesthetic applications: wall panels, kitchen backsplashes, and commercial decorative components.
- Safety applications: stair treads, ramps, and elevator flooring.
- Practical applications: toolboxes, storage boxes, and RV stone-guard panels.
Typical 3003 H22 Aluminum Sheet

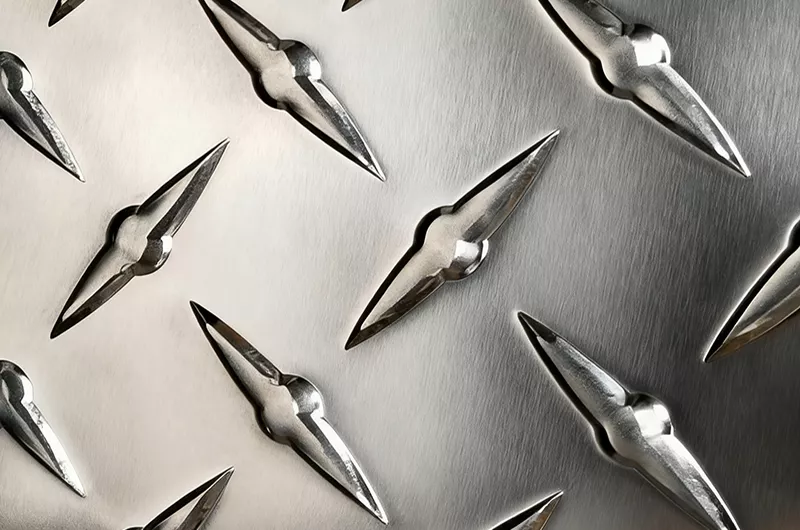

3003 H22 Aluminum Diamond Plate
The 3003-H22 aluminum diamond plate features a unique raised diamond pattern on the surface, which not only enhances anti-slip performance but also adds decorative appeal. It is suitable for vehicle floors, industrial platforms, and areas requiring both wear resistance and aesthetics. Its medium-strength design is ideal for light load-bearing applications.
3003 H22 Bright Aluminum Tread Plate
The 3003-H22 bright aluminum tread plate is polished while retaining the anti-slip raised pattern, presenting a shiny surface that combines aesthetics with practicality. It is suitable for commercial decoration, truck interiors, or flooring materials. With moderate strength, it can handle light to medium loads.
3003-H22 Aluminum Floor Plate
The 3003-H22 aluminum floor plate is designed for durable flooring, offering either a smooth or anti-slip textured surface. It balances moderate load-bearing capacity with flexibility and is widely used in industrial factories, storage platforms, and other settings requiring durable and safe flooring.
3003 H22 Aluminum Sheet Mechanical Properties
| Property | Value |
| Brinell Hardness 500 kg load | 37 |
| Density g/cm^3 | 3 |
| Ultimate Tensile Strength KSI | 20 |
| Melting Point °F | 1190 - 1210 |
| Yield Tensile Strength KSI | 14 |
| Elongation % in 2 in. | 8 |
| Shear Strength KSI | 12 |
| Machinability % | 30 |
| Electrical Conductivity % IACS | 44 |
3003 H22 Aluminum Sheet Chemistry Information
| Element | Percentage |
| Al | 98.7 |
| Cu | 0.05 - 0.2 |
| Fe | 0.7 max |
| Mn | 1 - 1.5 |
| Si | 0.6 max |
| Zn | 0.1 max |
3003 H22 Aluminum Sheet Thermal and Electrical Properties
- Melting Point: 643–654°C (1, 190–1, 210°F)
- Thermal Conductivity: 180 W/m-K
- Electrical Conductivity: 44% IACS
3003 H22 Aluminum Sheet Processing Techniques
- Strain Hardening: The 3003 aluminum alloy is initially cold-worked to increase hardness and strength.
- Partial Annealing: It is then partially annealed to release some stress and reduce hardness and strength.
- Casting and Rolling Process: Used to produce thin sheets (e.g., color-coated sheet base, honeycomb core material).
- Hot Rolling/Cold Rolling Process: Suitable for medium to thick plates (e.g., battery cases, deep-drawn parts).
- Surface Treatments: Options include polishing, anodizing, or laminating.
Specifications
- Thickness Range: 0.3mm to 680mm (cold-rolled thin sheets to hot-rolled thick plates)
- Width Range: 150mm to 2600mm
3003 and 3004 Material Selection Recommendations
H22 Temper Characteristics
Cold-worked to provide a balance of strength and formability, ideal for parts that need to maintain shape after moderate forming.
Alternative Options
For higher strength, consider 3004 aluminum sheet (approximately 20% stronger).
Haomei 3003 H22 Aluminum Sheet Stock List
| Description | Thickness (In) | Surface Treatment | Width (In) | Length (In) |
| 3003 h22 mill finish aluminum plate .063" x 48" x 120" | .063" | Mill Finish | 48" | 120" |
| 3003 h22 mill finish aluminum plate .063" x 24" x 48" | .063" | Mill Finish | 24" | 48" |
| 3003 h22 mill finish aluminum plate .063" x 48" x 144" | .063" | Mill Finish | 48" | 144" |
| 3003 h22 mill finish aluminum plate .063" x 48" x 96" | .063" | Mill Finish | 48" | 96" |
| 3003 h22 mill finish aluminum plate .063" x 36" x 96" | .063" | Mill Finish | 36" | 96" |
| 3003 h22 mill finish aluminum plate .063" x 60" x 120" | .063" | Mill Finish | 60" | 120" |
| 3003 h22 mill finish aluminum plate .063" x 36" x 120" | .063" | Mill Finish | 36" | 120" |
| 3003 h22 mill finish aluminum plate .063" x 60" x 144" | .063" | Mill Finish | 60" | 144" |
| 3003 h22 mill finish aluminum plate .100" x 48" x 120" | .100" | Mill Finish | 48" | 120" |
| 3003 h22 mill finish aluminum plate .100" x 24" x 48" | .100" | Mill Finish | 24" | 48" |
| 3003 h22 mill finish aluminum plate .100" x 48" x 144" | .100" | Mill Finish | 48" | 144" |
| 3003 h22 mill finish aluminum plate .100" x 48" x 96" | .100" | Mill Finish | 48" | 96" |
| 3003 h22 mill finish aluminum plate .100" x 36" x 96" | .100" | Mill Finish | 36" | 96" |
| 3003 h22 mill finish aluminum plate .100" x 60" x 120" | .100" | Mill Finish | 60" | 120" |
| 3003 h22 mill finish aluminum plate .100" x 36" x 120" | .100" | Mill Finish | 36" | 120" |
| 3003 h22 mill finish aluminum plate .100" x 60" x 144" | .100" | Mill Finish | 60" | 144" |
| 3003 h22 mill finish aluminum plate .125" x 48" x 120" | .125" | Mill Finish | 48" | 120" |
| 3003 h22 mill finish aluminum plate .125" x 24" x 48" | .125" | Mill Finish | 24" | 48" |
| 3003 h22 mill finish aluminum plate .125" x 48" x 144" | .125" | Mill Finish | 48" | 144" |
| 3003 h22 mill finish aluminum plate .125" x 48" x 96" | .125" | Mill Finish | 48" | 96" |
| 3003 h22 mill finish aluminum plate .125" x 36" x 96" | .125" | Mill Finish | 36" | 96" |
| 3003 h22 mill finish aluminum plate .125" x 60" x 120" | .125" | Mill Finish | 60" | 120" |
| 3003 h22 mill finish aluminum plate .125" x 36" x 120" | .125" | Mill Finish | 36" | 120" |
| 3003 h22 mill finish aluminum plate .125" x 60" x 144" | .125" | Mill Finish | 60" | 144" |
| 3003 h22 mill finish aluminum plate 1/8" x 48" x 120" | 1/8" | Mill Finish | 48" | 120" |
| 3003 h22 mill finish aluminum plate 1/8" x 24" x 48" | 1/8" | Mill Finish | 24" | 48" |
| 3003 h22 mill finish aluminum plate 1/8" x 48" x 144" | 1/8" | Mill Finish | 48" | 144" |
| 3003 h22 mill finish aluminum plate 1/8" x 48" x 96" | 1/8" | Mill Finish | 48" | 96" |
| 3003 h22 mill finish aluminum plate 1/8" x 36" x 96" | 1/8" | Mill Finish | 36" | 96" |
| 3003 h22 mill finish aluminum plate 1/8" x 60" x 120" | 1/8" | Mill Finish | 60" | 120" |
| 3003 h22 mill finish aluminum plate 1/8" x 36" x 120" | 1/8" | Mill Finish | 36" | 120" |
| 3003 h22 mill finish aluminum plate 1/8" x 60" x 144" | 1/8" | Mill Finish | 60" | 144" |
| 3003 h22 bright aluminum tread plate .063" x 48" x 120" | .063" | Bright | 48" | 120" |
| 3003 h22 bright aluminum tread plate .063" x 24" x 48" | .063" | Bright | 24" | 48" |
| 3003 h22 bright aluminum tread plate .063" x 48" x 144" | .063" | Bright | 48" | 144" |
| 3003 h22 bright aluminum tread plate .063" x 48" x 96" | .063" | Bright | 48" | 96" |
| 3003 h22 bright aluminum tread plate .063" x 36" x 96" | .063" | Bright | 36" | 96" |
| 3003 h22 bright aluminum tread plate .063" x 60" x 120" | .063" | Bright | 60" | 120" |
| 3003 h22 bright aluminum tread plate .063" x 36" x 120" | .063" | Bright | 36" | 120" |
| 3003 h22 bright aluminum tread plate .063" x 60" x 144" | .063" | Bright | 60" | 144" |
| 3003-h22 embossed aluminum plate .063" x 48" x 120" | .063" | Embossed | 48" | 120" |
| 3003-h22 embossed aluminum plate .063" x 24" x 48" | .063" | Embossed | 24" | 48" |
| 3003-h22 embossed aluminum plate .063" x 48" x 144" | .063" | Embossed | 48" | 144" |
| 3003-h22 embossed aluminum plate .063" x 48" x 96" | .063" | Embossed | 48" | 96" |
| 3003-h22 embossed aluminum plate .063" x 36" x 96" | .063" | Embossed | 36" | 96" |
| 3003-h22 embossed aluminum plate .063" x 60" x 120" | .063" | Embossed | 60" | 120" |
| 3003-h22 embossed aluminum plate .063" x 36" x 120" | .063" | Embossed | 36" | 120" |
| 3003-h22 embossed aluminum plate .063" x 60" x 144" | .063" | Embossed | 60" | 144" |
| 3003 h22 aluminum tread plate .063" x 48" x 120" | .063" | 5-Bar | 48" | 120" |
| 3003 h22 aluminum tread plate .063" x 24" x 48" | .063" | 5-Bar | 24" | 48" |
| 3003 h22 aluminum tread plate .063" x 48" x 144" | .063" | 5-Bar | 48" | 144" |
| 3003 h22 aluminum tread plate .063" x 48" x 96" | .063" | 5-Bar | 48" | 96" |
| 3003 h22 aluminum tread plate .063" x 36" x 96" | .063" | 5-Bar | 36" | 96" |
| 3003 h22 aluminum tread plate .063" x 60" x 120" | .063" | 5-Bar | 60" | 120" |
| 3003 h22 aluminum tread plate .063" x 36" x 120" | .063" | 5-Bar | 36" | 120" |
| 3003 h22 aluminum tread plate .063" x 60" x 144" | .063" | 5-Bar | 60" | 144" |
| 3003 h22 aluminum diamond plate .063" x 48" x 120" | .063" | diamond | 48" | 120" |
| 3003 h22 aluminum diamond plate .063" x 24" x 48" | .063" | diamond | 24" | 48" |
| 3003 h22 aluminum diamond plate .063" x 48" x 144" | .063" | diamond | 48" | 144" |
| 3003 h22 aluminum diamond plate .063" x 48" x 96" | .063" | diamond | 48" | 96" |
| 3003 h22 aluminum diamond plate .063" x 36" x 96" | .063" | diamond | 36" | 96" |
| 3003 h22 aluminum diamond plate .063" x 60" x 120" | .063" | diamond | 60" | 120" |
| 3003 h22 aluminum diamond plate .063" x 36" x 120" | .063" | diamond | 36" | 120" |
| 3003 h22 aluminum diamond plate .063" x 60" x 144" | .063" | diamond | 60" | 144" |
| 3003 h22 bright aluminum tread plate .100" x 24" x 48" | .100" | Bright | 24" | 48" |
| 3003 h22 bright aluminum tread plate .100" x 48" x 144" | .100" | Bright | 48" | 144" |
| 3003 h22 bright aluminum tread plate .100" x 48" x 96" | .100" | Bright | 48" | 96" |
| 3003 h22 bright aluminum tread plate .100" x 36" x 96" | .100" | Bright | 36" | 96" |
| 3003 h22 bright aluminum tread plate .100" x 60" x 120" | .100" | Bright | 60" | 120" |
| 3003 h22 bright aluminum tread plate .100" x 36" x 120" | .100" | Bright | 36" | 120" |
| 3003 h22 bright aluminum tread plate .100" x 60" x 144" | .100" | Bright | 60" | 144" |
| 3003-h22 embossed aluminum plate .100" x 48" x 120" | .100" | Embossed | 48" | 120" |
| 3003-h22 embossed aluminum plate .100" x 24" x 48" | .100" | Embossed | 24" | 48" |
| 3003-h22 embossed aluminum plate .100" x 48" x 144" | .100" | Embossed | 48" | 144" |
| 3003-h22 embossed aluminum plate .100" x 48" x 96" | .100" | Embossed | 48" | 96" |
| 3003-h22 embossed aluminum plate .100" x 36" x 96" | .100" | Embossed | 36" | 96" |
| 3003-h22 embossed aluminum plate .100" x 60" x 120" | .100" | Embossed | 60" | 120" |
| 3003-h22 embossed aluminum plate .100" x 36" x 120" | .100" | Embossed | 36" | 120" |
| 3003-h22 embossed aluminum plate .100" x 60" x 144" | .100" | Embossed | 60" | 144" |
| 3003 h22 aluminum tread plate .100" x 48" x 120" | .100" | 5-Bar | 48" | 120" |
| 3003 h22 aluminum tread plate .100" x 24" x 48" | .100" | 5-Bar | 24" | 48" |
| 3003 h22 aluminum tread plate .100" x 48" x 144" | .100" | 5-Bar | 48" | 144" |
| 3003 h22 aluminum tread plate .100" x 48" x 96" | .100" | 5-Bar | 48" | 96" |
| 3003 h22 aluminum tread plate .100" x 36" x 96" | .100" | 5-Bar | 36" | 96" |
| 3003 h22 aluminum tread plate .100" x 60" x 120" | .100" | 5-Bar | 60" | 120" |
| 3003 h22 aluminum tread plate .100" x 36" x 120" | .100" | 5-Bar | 36" | 120" |
| 3003 h22 aluminum tread plate .100" x 60" x 144" | .100" | 5-Bar | 60" | 144" |
| 3003 h22 aluminum diamond plate .100" x 48" x 120" | .100" | diamond | 48" | 120" |
| 3003 h22 aluminum diamond plate .100" x 24" x 48" | .100" | diamond | 24" | 48" |
| 3003 h22 aluminum diamond plate .100" x 48" x 144" | .100" | diamond | 48" | 144" |
| 3003 h22 aluminum diamond plate .100" x 48" x 96" | .100" | diamond | 48" | 96" |
| 3003 h22 aluminum diamond plate .100" x 36" x 96" | .100" | diamond | 36" | 96" |
| 3003 h22 aluminum diamond plate .100" x 60" x 120" | .100" | diamond | 60" | 120" |
| 3003 h22 aluminum diamond plate .100" x 36" x 120" | .100" | diamond | 36" | 120" |
| 3003 h22 aluminum diamond plate .100" x 60" x 144" | .100" | diamond | 60" | 144" |
| 3003 h22 bright aluminum tread plate .125" x 24" x 48" | .125" | Bright | 24" | 48" |
| 3003 h22 bright aluminum tread plate .125" x 48" x 144" | .125" | Bright | 48" | 144" |
| 3003 h22 bright aluminum tread plate .125" x 48" x 96" | .125" | Bright | 48" | 96" |
| 3003 h22 bright aluminum tread plate .125" x 36" x 96" | .125" | Bright | 36" | 96" |
| 3003 h22 bright aluminum tread plate .125" x 60" x 120" | .125" | Bright | 60" | 120" |
| 3003 h22 bright aluminum tread plate .125" x 36" x 120" | .125" | Bright | 36" | 120" |
| 3003 h22 bright aluminum tread plate .125" x 60" x 144" | .125" | Bright | 60" | 144" |
| 3003-h22 embossed aluminum plate .125" x 48" x 120" | .125" | Embossed | 48" | 120" |
| 3003-h22 embossed aluminum plate .125" x 24" x 48" | .125" | Embossed | 24" | 48" |
| 3003-h22 embossed aluminum plate .125" x 48" x 144" | .125" | Embossed | 48" | 144" |
| 3003-h22 embossed aluminum plate .125" x 48" x 96" | .125" | Embossed | 48" | 96" |
| 3003-h22 embossed aluminum plate .125" x 36" x 96" | .125" | Embossed | 36" | 96" |
| 3003-h22 embossed aluminum plate .125" x 60" x 120" | .125" | Embossed | 60" | 120" |
| 3003-h22 embossed aluminum plate .125" x 36" x 120" | .125" | Embossed | 36" | 120" |
| 3003-h22 embossed aluminum plate .125" x 60" x 144" | .125" | Embossed | 60" | 144" |
| 3003 h22 aluminum tread plate .125" x 48" x 120" | .125" | 5-Bar | 48" | 120" |
| 3003 h22 aluminum tread plate .125" x 24" x 48" | .125" | 5-Bar | 24" | 48" |
| 3003 h22 aluminum tread plate .125" x 48" x 144" | .125" | 5-Bar | 48" | 144" |
| 3003 h22 aluminum tread plate .125" x 48" x 96" | .125" | 5-Bar | 48" | 96" |
| 3003 h22 aluminum tread plate .125" x 36" x 96" | .125" | 5-Bar | 36" | 96" |
| 3003 h22 aluminum tread plate .125" x 60" x 120" | .125" | 5-Bar | 60" | 120" |
| 3003 h22 aluminum tread plate .125" x 36" x 120" | .125" | 5-Bar | 36" | 120" |
| 3003 h22 aluminum tread plate .125" x 60" x 144" | .125" | 5-Bar | 60" | 144" |
| 3003 h22 aluminum diamond plate .125" x 48" x 120" | .125" | diamond | 48" | 120" |
| 3003 h22 aluminum diamond plate .125" x 24" x 48" | .125" | diamond | 24" | 48" |
| 3003 h22 aluminum diamond plate .125" x 48" x 144" | .125" | diamond | 48" | 144" |
| 3003 h22 aluminum diamond plate .125" x 48" x 96" | .125" | diamond | 48" | 96" |
| 3003 h22 aluminum diamond plate .125" x 36" x 96" | .125" | diamond | 36" | 96" |
| 3003 h22 aluminum diamond plate .125" x 60" x 120" | .125" | diamond | 60" | 120" |
| 3003 h22 aluminum diamond plate .125" x 36" x 120" | .125" | diamond | 36" | 120" |
| 3003 h22 aluminum diamond plate .125" x 60" x 144" | .125" | diamond | 60" | 144" |
| 3003 h22 bright aluminum tread plate 1/8" x 24" x 48" | 1/8" | Bright | 24" | 48" |
| 3003 h22 bright aluminum tread plate 1/8" x 48" x 144" | 1/8" | Bright | 48" | 144" |
| 3003 h22 bright aluminum tread plate 1/8" x 48" x 96" | 1/8" | Bright | 48" | 96" |
| 3003 h22 bright aluminum tread plate 1/8" x 36" x 96" | 1/8" | Bright | 36" | 96" |
| 3003 h22 bright aluminum tread plate 1/8" x 60" x 120" | 1/8" | Bright | 60" | 120" |
| 3003 h22 bright aluminum tread plate 1/8" x 36" x 120" | 1/8" | Bright | 36" | 120" |
| 3003 h22 bright aluminum tread plate 1/8" x 60" x 144" | 1/8" | Bright | 60" | 144" |
| 3003-h22 embossed aluminum plate 1/8" x 48" x 120" | 1/8" | Embossed | 48" | 120" |
| 3003-h22 embossed aluminum plate 1/8" x 24" x 48" | 1/8" | Embossed | 24" | 48" |
| 3003-h22 embossed aluminum plate 1/8" x 48" x 144" | 1/8" | Embossed | 48" | 144" |
| 3003-h22 embossed aluminum plate 1/8" x 48" x 96" | 1/8" | Embossed | 48" | 96" |
| 3003-h22 embossed aluminum plate 1/8" x 36" x 96" | 1/8" | Embossed | 36" | 96" |
| 3003-h22 embossed aluminum plate 1/8" x 60" x 120" | 1/8" | Embossed | 60" | 120" |
| 3003-h22 embossed aluminum plate 1/8" x 36" x 120" | 1/8" | Embossed | 36" | 120" |
| 3003-h22 embossed aluminum plate 1/8" x 60" x 144" | 1/8" | Embossed | 60" | 144" |
| 3003 h22 aluminum tread plate 1/8" x 48" x 120" | 1/8" | 5-Bar | 48" | 120" |
| 3003 h22 aluminum tread plate 1/8" x 24" x 48" | 1/8" | 5-Bar | 24" | 48" |
| 3003 h22 aluminum tread plate 1/8" x 48" x 144" | 1/8" | 5-Bar | 48" | 144" |
| 3003 h22 aluminum tread plate 1/8" x 48" x 96" | 1/8" | 5-Bar | 48" | 96" |
| 3003 h22 aluminum tread plate 1/8" x 36" x 96" | 1/8" | 5-Bar | 36" | 96" |
| 3003 h22 aluminum tread plate 1/8" x 60" x 120" | 1/8" | 5-Bar | 60" | 120" |
| 3003 h22 aluminum tread plate 1/8" x 36" x 120" | 1/8" | 5-Bar | 36" | 120" |
| 3003 h22 aluminum tread plate 1/8" x 60" x 144" | 1/8" | 5-Bar | 60" | 144" |
| 3003 h22 aluminum diamond plate 1/8" x 48" x 120" | 1/8" | diamond | 48" | 120" |
| 3003 h22 aluminum diamond plate 1/8" x 24" x 48" | 1/8" | diamond | 24" | 48" |
| 3003 h22 aluminum diamond plate 1/8" x 48" x 144" | 1/8" | diamond | 48" | 144" |
| 3003 h22 aluminum diamond plate 1/8" x 48" x 96" | 1/8" | diamond | 48" | 96" |
| 3003 h22 aluminum diamond plate 1/8" x 36" x 96" | 1/8" | diamond | 36" | 96" |
| 3003 h22 aluminum diamond plate 1/8" x 60" x 120" | 1/8" | diamond | 60" | 120" |
| 3003 h22 aluminum diamond plate 1/8" x 36" x 120" | 1/8" | diamond | 36" | 120" |
| 3003 h22 aluminum diamond plate 1/8" x 60" x 144" | 1/8" | diamond | 60" | 144" |
3003 H22 Aluminum FAQs
What is 3003 aluminum good for?
3003 aluminum alloy is one of the most widely used manganese-containing aluminum alloys. It belongs to the 3xxx series. Although it cannot be strengthened by heat treatment, it offers excellent corrosion resistance, high workability, and moderate strength.
- Heat exchange applications (its strongest advantage): With excellent thermal conductivity (approximately 193 W/m·K), it is a core material for automotive radiators, air conditioning evaporators, HVAC ducts, and condensers.
- Food and chemical containers: 3003 aluminum is non-toxic and highly resistant to many chemicals, making it ideal for cookware (pots/bakeware), beverage cans, storage tanks, pressure vessels, and laboratory equipment.
- Architectural exterior decoration: Due to its ease of forming and finishing, it is widely used for roofing panels, corrugated sheets, building facades, garage doors, and acoustic ceilings.
- Transportation: In heavy vehicles, 3003 is commonly fabricated into fuel tanks and truck or trailer skins.
- Anti-slip applications (H22 temper): 3003-H22 is frequently manufactured into tread plates (diamond plates) for refrigerated truck flooring, steps, toolboxes, and dock walkways, balancing weight with slip resistance and durability.
What is the difference between 3003 H22 and 5052?
When selecting materials, 3003 and 5052 are the two alloys most often compared. Simply put: 3003 is the "cost-effective all-rounder, " while 5052 is the "high-performance structural champion."
| Property | 3003-H22 Aluminum Alloy | 5052 Aluminum Alloy (Commonly H32) |
| Primary alloying element | Manganese (Mn) | Magnesium (Mg) |
| Strength level | Medium strength (about 20% higher than 1100 pure aluminum) | High strength (one of the strongest non-heat-treatable alloys) |
| Tensile strength | Approx. 145 – 185 MPa | Approx. 210 – 260 MPa |
| Corrosion resistance | Excellent (suitable for general atmospheric environments) | Outstanding (resistant to saltwater/marine corrosion) |
| Formability | Excellent (softer, suitable for deep drawing/bending) | Good (higher hardness; small bend radii may crack) |
| Weldability | Excellent (supports all welding methods) | Very good (higher magnesium content requires more precise control) |
| Relative cost | Lower (approximately 15–20% cheaper than 5052) | Higher (due to magnesium content and processing cost) |
Comparison of 3003 H22 Aluminum and 6061 Alloy
When selecting materials for structural load-bearing applications, it is important to understand the differences between 3003 H22 and the commonly used 6061 alloy:
If you prioritize excellent formability, ease of bending, lower cost, and a material suitable for light to medium applications with a bright decorative surface, then 3003-H22 is the ideal choice.
If your primary requirements are higher strength, superior machinability, and maintaining structural integrity under heavy loads (such as stair treads or ramps), and formability or bending performance is less critical, then the 6061-T6 alloy is more suitable.
Products you may be interested in
Further reading
Users viewing this material also viewed the following
- Aluminum Tread Plate 3003
- 3003 Embossed Aluminum Sheet
- 3003 Aluminum Diamond Plate
- 3003 Hot-rolled Aluminum Plate
- 3003 Honeycomb Aluminum
- 3003 Aluminum Plate for New Energy Automobile Lithium Battery Power Battery Shell
- 3003+4343 Power Battery Cooling Plate
- 3003 Aluminum Plate for Brazing Water Cooling Plate
- Aluminum Brazing Composite Material 3003+4045 Aluminum Plate
- 3003 Aluminum Disc for Non-stick Pan
- 3003 Aluminum Plate for Mobile Phone Battery Shell
- 3003 Corrugated Aluminum Sheet
- 3003 Aluminum Plate for Automobile Fender
- 3003 Checker Aluminum Plate for Stair Anti-slip
- 3003 Tread Aluminum Plate for Cold Storage Floor Anti-slip
- 3003 Ultra-wide Curtain Wall Aluminum Plate
- 3003 Aluminum Plate for Building Decoration
- 3003 Roof Aluminum Plate for Decoration
- 3003 Aluminum Sheet Coil for Thermal Insulation Material
- 3003 Pre-painted Aluminum Coil
Recommended Content
- Aluminium 3003 H14 Data Sheet
- What is 3003 aluminum used for?
- 3003 Aluminum Tubing
- 3003 Aluminum vs. 3005 Aluminum
- 3003-H18 Aluminum vs. 3005-H18 Aluminum
- What is the difference between 3003 H14 and 3105 H14?
- 3003 Aluminum vs. 3104 Aluminum
- 3003-H18 Aluminum vs. 3004-H18 Aluminum
- 3003-O Aluminum vs. 3004-O Aluminum
- What is the difference between 3003 and 3004 aluminum?
- 3003-H22 Aluminum vs. 3003-H24 Aluminum
- What is the difference between 3003 O and 3003 H14?
- What is the difference between 3003 H14 and H24?
