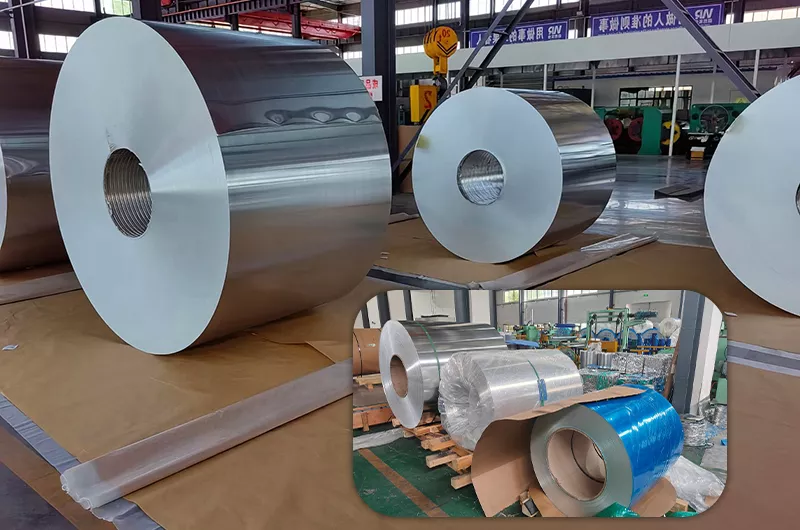

3003 H14 Aluminum Coil
3003 H14 aluminum coil is a commonly used aluminum-manganese (Al-Mn) alloy coil that combines corrosion resistance, good formability, and moderate strength. It offers high cost performance and is widely used in construction, HVAC (heating, ventilation, and air conditioning), packaging, and industrial equipment.
The 3003 alloy is based on commercially pure aluminum with the addition of manganese, which increases its strength by about 20% compared with 1100 series aluminum alloys. It has excellent deep drawing, spinning, welding, and brazing capabilities, but its strength cannot be increased through heat treatment. Typical applications include cookware, decorative trim, awnings, wall panels, storage tanks, and chemical equipment.
The rolled surface finish of 3003-H14 aluminum coil complies with standards such as AMS-QQ-A-250/2, AMS 4008, and ASTM B209, ensuring reliable processing performance and corrosion resistance.
What is 3003 H14 Aluminum?
3003 H14 aluminum coil is an aluminum product made from aluminum-manganese alloy (3003) through partial strain hardening (H14 temper).
Alloy: 3003 (Al-Mn series)
Temper: H14 (strain-hardened, half-hard condition)
The H14 designation accurately describes the treatment applied to the metal after casting:
- H: Indicates that the material has been "strain hardened" (cold worked) to increase strength.
- 1: Indicates that the material has only been strain hardened (no heat treatment was performed to reduce hardness).
- 4: Indicates the hardness level. In this case, the hardness is 1/2. This is the “just right” hardness—hard enough to maintain its shape, yet soft enough to bend to a 90-degree angle without cracking.
3003 H14 Aluminum Coil Specifications
| Specification | Range | Custom Range |
| Thickness | 0.2~3.0mm | 0.016 inch – 0.250 inch (0.04~6.35mm) |
| Width | 100~1850mm | Up to 2000mm, supports cut-to-length |
| Length | Coil form | Slitting according to customer requirements, available in sheets or coils |
| Coil ID | Inner diameter 508mm / 610mm | Standard industrial coil size, compatible with various processing equipment |
| Surface Finish | Mill finish, matte, coated, anodized, laminated | Custom surface treatments available based on application needs |
Forms of Supply for 3003 H14 Aluminum Coil

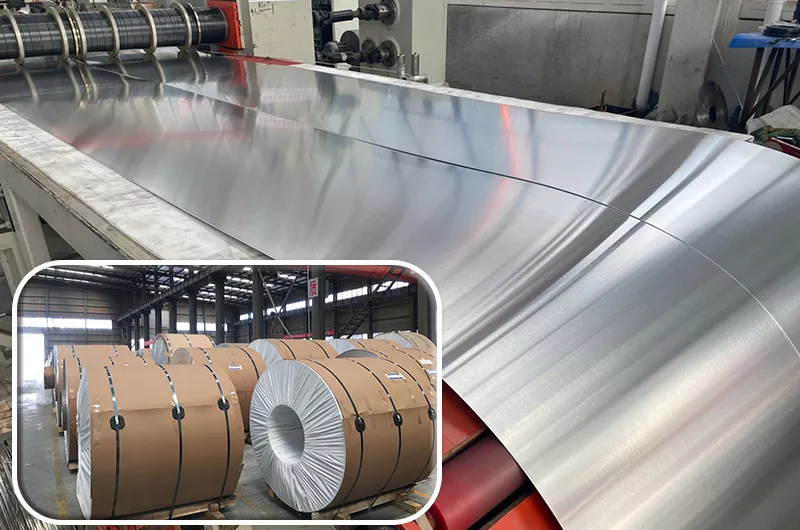

Mill Finish 3003 H14 Aluminum Coil
Mill Finish 3003 H14 Aluminum Coil is an aluminum coil with no surface treatment, presenting a natural silver-gray metallic appearance. The surface is smooth and uniform, making it suitable for further processing, coating, or forming applications. Its excellent corrosion resistance and formability make it widely used in building curtain walls, air-conditioning ducts, and industrial equipment.
3003 H14 Aluminum Coil with Polysurlyn
This type of 3003 H14 aluminum coil is covered with a Polysurlyn film on the surface, providing additional corrosion resistance and weather protection while improving scratch resistance. It is particularly suitable for building materials and decorative panels used outdoors for long periods, ensuring durability and appearance in harsh environments.
Aluminum Jacketing Roll 3003 H14
Aluminum Jacketing Roll 3003 H14 is a specialized aluminum coil used for pipe and equipment insulation cladding. Its high strength and corrosion resistance effectively protect the insulation layer, extend the service life of pipelines, and offer advantages in easy processing and installation.
3003 H14 Prepainted Aluminum Coil (Color Coated Coil)
Prepainted aluminum coil uses 3003 H14 aluminum as the base material and is coated with PE or PVDF coatings on the surface. It offers a wide range of color options and excellent weather resistance. It is widely used in curtain walls, roofing, ceilings, and decorative panels, combining aesthetics with durability.
3003 H14 Stucco Embossed Aluminum Coil
Stucco Embossed 3003 H14 aluminum coil features an anti-slip textured surface pattern that not only enhances appearance but also increases friction. It is commonly used for air-conditioning ducts, boiler cladding, and industrial protective materials, providing both practicality and decorative effects.
3003 H14 Anodized Aluminum Coil
Anodized 3003 H14 aluminum coil forms a dense oxide layer through electrochemical treatment, improving corrosion resistance and surface hardness while providing various metallic finishes. It is suitable for architectural decoration, transportation facilities, and home appliance housings.
3003 H14 Brushed Aluminum Coil
Brushed 3003 H14 aluminum coil undergoes a surface brushing process to create a unique metallic texture, enhancing visual aesthetics. It is commonly used in elevator interiors, appliance panels, and furniture decoration, offering both elegance and a modern appearance.
3003 H14 Aluminum Cladding Coil
Aluminum Cladding Coil made from 3003 H14 aluminum is designed for building exterior cladding and curtain wall systems. Its high strength, corrosion resistance, and good formability make it very popular for architectural façade protection and decoration.
3003 H14 Aluminum Coil with Moisture Barrier (Kraft Paper / Polyfilm)
This aluminum coil adds a moisture barrier layer (kraft paper or polyester film) to the surface of the base material, effectively blocking moisture and preventing water vapor from affecting the aluminum during storage, transportation, and construction. It is particularly suitable for building or industrial applications that require higher protection during shipping and storage.

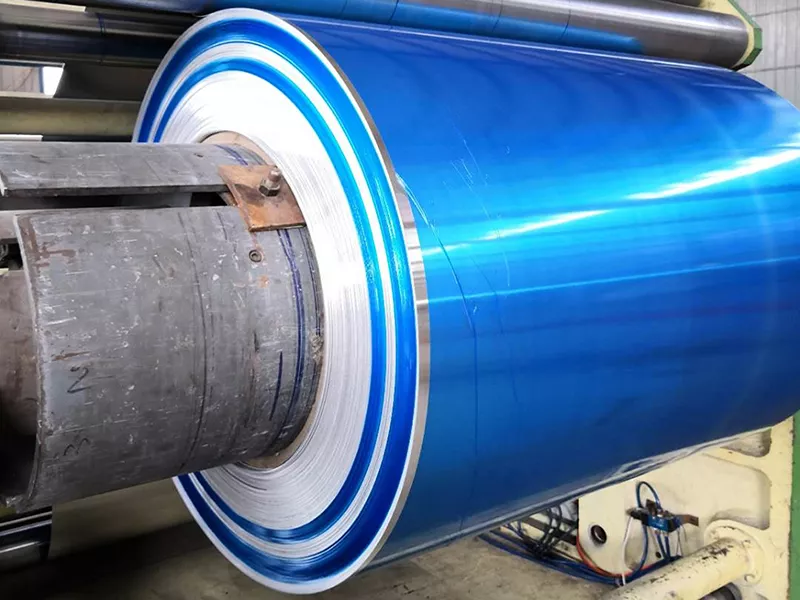

3003 H14 Aluminum Coil with Blue Film (Protective Film)
3003 H14 aluminum coil with blue protective film has a peelable film applied to the surface to prevent scratches, contamination, and damage during processing. It is suitable for architectural decoration, curtain walls, and precision forming applications, ensuring the finished surface remains in perfect condition before installation.
3003 H14 Aluminum Properties
- Excellent corrosion resistance: Provides strong resistance to atmospheric environments, fresh water, and various chemical media, making it especially suitable for humid environments.
- Outstanding formability: The H14 temper provides an optimal balance between strength and ductility, suitable for stamping, bending, stretching, and other forming processes.
- Good weldability: It can be welded using various methods such as TIG welding and resistance welding, maintaining stable performance after welding.
- Excellent thermal conductivity: Suitable for manufacturing radiators, liquid cooling plates, and other heat exchange components.
- Good surface finishing capability: Easy to perform surface treatments such as anodizing, coating, and laminating to improve appearance and weather resistance.
Applications of 3003 H14 Aluminum Coil
New Energy and Electronics
3003 H14 aluminum coil is widely used in new energy vehicles and energy storage industries. It is commonly applied in power battery housings, energy storage battery pack casings, liquid cooling plates, and heat dissipation system components. Its excellent processing performance allows for repeated stamping and deep drawing, while its lightweight and corrosion resistance help protect the internal battery structure and improve overall safety and service life.
HVAC (Heating, Ventilation, and Air Conditioning)
In air conditioning and ventilation systems, 3003 H14 aluminum coil is used to manufacture air ducts, heat exchanger coils, and cooling fins. The material has good thermal conductivity and formability, ensuring system performance while allowing easy processing and installation.
Packaging and Chemical Containers
Due to its strong corrosion resistance, this aluminum coil is suitable for food containers, chemical storage tanks, fuel tank linings, and capacitor housings. The material is safe and hygienic and can withstand long-term storage of liquids or chemicals.
Construction and Decoration
3003 H14 aluminum coil is commonly used in curtain wall panels, roofing, wall decoration, aluminum composite panels (ACP), and insulation cladding in construction applications. The material is lightweight, strong, and weather-resistant, providing long-term protection while maintaining aesthetic appeal.
Transportation
In the manufacturing of automobiles, trucks, ships, and containers, 3003 H14 aluminum coil is used for interior linings, interior panels, and transportation equipment. The material has moderate strength and corrosion resistance, enabling it to withstand friction and environmental impacts during transportation.
Daily Products and Home Appliances
It is suitable for manufacturing cookware, kitchen utensils, refrigerator liners, lighting fixtures, and fan blades. The material is lightweight, easy to clean, durable, and combines practicality with aesthetic appeal.
3003 H14 Aluminum Coil Stock List
| Product Name | Alloy | Temper | Thickness (inch) | Thickness (mm) | Width | Form |
| 3003 H14 Aluminum Coil 0.016" x 36" | 3003 | H14 | 0.016" | 0.406 mm | 36" | Coil |
| 3003 H14 Aluminum Coil 0.016" x 48" | 3003 | H14 | 0.016" | 0.406 mm | 48" | Coil |
| 3003 H14 Aluminum Coil 0.016" x 60" | 3003 | H14 | 0.016" | 0.406 mm | 60" | Coil |
| 3003 H14 Aluminum Coil 0.016" x 72" | 3003 | H14 | 0.016" | 0.406 mm | 72" | Coil |
| 3003 H14 Aluminum Coil 0.020" x 36" | 3003 | H14 | 0.020" | 0.508 mm | 36" | Coil |
| 3003 H14 Aluminum Coil 0.020" x 48" | 3003 | H14 | 0.020" | 0.508 mm | 48" | Coil |
| 3003 H14 Aluminum Coil 0.020" x 60" | 3003 | H14 | 0.020" | 0.508 mm | 60" | Coil |
| 3003 H14 Aluminum Coil 0.020" x 72" | 3003 | H14 | 0.020" | 0.508 mm | 72" | Coil |
| 3003 H14 Aluminum Coil 0.025" x 36" | 3003 | H14 | 0.025" | 0.635 mm | 36" | Coil |
| 3003 H14 Aluminum Coil 0.025" x 48" | 3003 | H14 | 0.025" | 0.635 mm | 48" | Coil |
| 3003 H14 Aluminum Coil 0.025" x 60" | 3003 | H14 | 0.025" | 0.635 mm | 60" | Coil |
| 3003 H14 Aluminum Coil 0.025" x 72" | 3003 | H14 | 0.025" | 0.635 mm | 72" | Coil |
| 3003 H14 Aluminum Coil 0.032" x 36" | 3003 | H14 | 0.032" | 0.813 mm | 36" | Coil |
| 3003 H14 Aluminum Coil 0.032" x 48" | 3003 | H14 | 0.032" | 0.813 mm | 48" | Coil |
| 3003 H14 Aluminum Coil 0.032" x 60" | 3003 | H14 | 0.032" | 0.813 mm | 60" | Coil |
| 3003 H14 Aluminum Coil 0.032" x 72" | 3003 | H14 | 0.032" | 0.813 mm | 72" | Coil |
| 3003 H14 Aluminum Coil 0.040" x 36" | 3003 | H14 | 0.040" | 1.016 mm | 36" | Coil |
| 3003 H14 Aluminum Coil 0.040" x 48" | 3003 | H14 | 0.040" | 1.016 mm | 48" | Coil |
| 3003 H14 Aluminum Coil 0.040" x 60" | 3003 | H14 | 0.040" | 1.016 mm | 60" | Coil |
| 3003 H14 Aluminum Coil 0.040" x 72" | 3003 | H14 | 0.040" | 1.016 mm | 72" | Coil |
| 3003 H14 Aluminum Coil 0.050" x 36" | 3003 | H14 | 0.050" | 1.270 mm | 36" | Coil |
| 3003 H14 Aluminum Coil 0.050" x 48" | 3003 | H14 | 0.050" | 1.270 mm | 48" | Coil |
| 3003 H14 Aluminum Coil 0.050" x 60" | 3003 | H14 | 0.050" | 1.270 mm | 60" | Coil |
| 3003 H14 Aluminum Coil 0.050" x 72" | 3003 | H14 | 0.050" | 1.270 mm | 72" | Coil |
| 3003 H14 Aluminum Coil 0.063" x 36" | 3003 | H14 | 0.063" | 1.600 mm | 36" | Coil |
| 3003 H14 Aluminum Coil 0.063" x 48" | 3003 | H14 | 0.063" | 1.600 mm | 48" | Coil |
| 3003 H14 Aluminum Coil 0.063" x 60" | 3003 | H14 | 0.063" | 1.600 mm | 60" | Coil |
| 3003 H14 Aluminum Coil 0.063" x 72" | 3003 | H14 | 0.063" | 1.600 mm | 72" | Coil |
| 3003 H14 Aluminum Coil 0.080" x 36" | 3003 | H14 | 0.080" | 2.032 mm | 36" | Coil |
| 3003 H14 Aluminum Coil 0.080" x 48" | 3003 | H14 | 0.080" | 2.032 mm | 48" | Coil |
| 3003 H14 Aluminum Coil 0.080" x 60" | 3003 | H14 | 0.080" | 2.032 mm | 60" | Coil |
| 3003 H14 Aluminum Coil 0.080" x 72" | 3003 | H14 | 0.080" | 2.032 mm | 72" | Coil |
| 3003 H14 Aluminum Coil 0.090" x 36" | 3003 | H14 | 0.090" | 2.286 mm | 36" | Coil |
| 3003 H14 Aluminum Coil 0.090" x 48" | 3003 | H14 | 0.090" | 2.286 mm | 48" | Coil |
| 3003 H14 Aluminum Coil 0.090" x 60" | 3003 | H14 | 0.090" | 2.286 mm | 60" | Coil |
| 3003 H14 Aluminum Coil 0.090" x 72" | 3003 | H14 | 0.090" | 2.286 mm | 72" | Coil |
| 3003 H14 Aluminum Coil 0.100" x 36" | 3003 | H14 | 0.100" | 2.540 mm | 36" | Coil |
| 3003 H14 Aluminum Coil 0.100" x 48" | 3003 | H14 | 0.100" | 2.540 mm | 48" | Coil |
| 3003 H14 Aluminum Coil 0.100" x 60" | 3003 | H14 | 0.100" | 2.540 mm | 60" | Coil |
| 3003 H14 Aluminum Coil 0.100" x 72" | 3003 | H14 | 0.100" | 2.540 mm | 72" | Coil |
| 3003 H14 Aluminum Coil 0.125" x 36" | 3003 | H14 | 0.125" | 3.175 mm | 36" | Coil |
| 3003 H14 Aluminum Coil 0.125" x 48" | 3003 | H14 | 0.125" | 3.175 mm | 48" | Coil |
| 3003 H14 Aluminum Coil 0.125" x 60" | 3003 | H14 | 0.125" | 3.175 mm | 60" | Coil |
| 3003 H14 Aluminum Coil 0.125" x 72" | 3003 | H14 | 0.125" | 3.175 mm | 72" | Coil |
What is the difference between 3003 and 3003 H14?
3003 is the base aluminum alloy designation, while 3003 H14 is a specific temper (half-hard condition) of the 3003 aluminum alloy. The two have the same chemical composition, but their mechanical properties and application scenarios differ significantly due to different processing methods.
Key Points for Selecting and Using 3003 H14 Aluminum Coil
Standards Selection
The 3003 H14 aluminum coil supplied by Haomei Aluminum is produced strictly according to international and domestic standards to meet the requirements of different markets. Common standards include:
- ASTM B209 (American standard)
- GB/T 3880 (Chinese standard)
- EN 485 (European standard)
Customers can select the appropriate standard according to export destinations or engineering requirements to ensure quality and compatibility.
Temper Classification
We provide aluminum coils in various tempers:
- H14: Moderate strength, suitable for applications requiring certain hardness and complex forming, such as battery shell stamping parts.
- H18: Higher strength than H14, suitable for applications requiring greater structural strength.
- O Temper: Annealed condition with the best formability, suitable for deep drawing, bending, or complex forming parts.
Haomei Aluminum can also provide customized tempers according to specific customer requirements to achieve the best processing performance.
Surface Treatment
To extend service life and adapt to different application environments, we provide a variety of surface treatment options:
- PVDF coating: Suitable for outdoor use with excellent weather resistance.
- Anodizing: Suitable for food contact or decorative requirements, offering excellent corrosion resistance.
- Optional coatings: Colors or functional coatings can be customized according to special customer requirements.

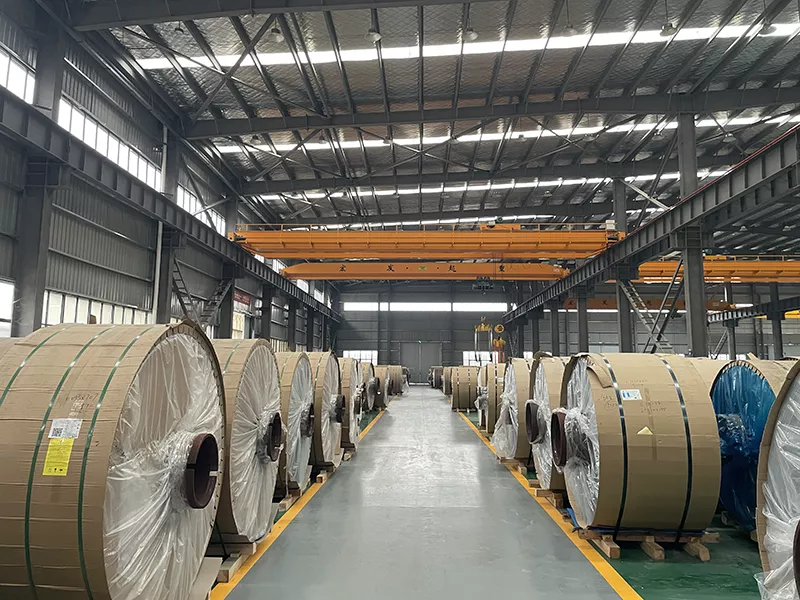

Packaging and Storage
The packaging design of Haomei Aluminum considers both transportation safety and protective performance:
Waterproof kraft paper packaging is used, and steel straps secure the coils on wooden pallets.
During storage, moisture and acidic or alkaline environments should be avoided to ensure the aluminum coil performance is not affected.
Through proper material selection, scientific processing, and professional packaging, Haomei Aluminum helps customers achieve optimal performance and reliability in production and applications.
