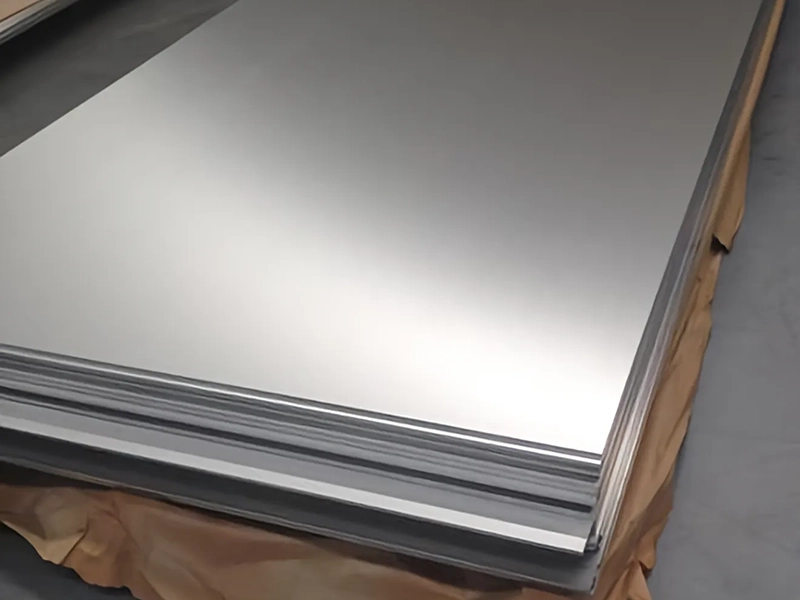

5754 Aluminum Sheet
5754 aluminum sheet is a non-heat-treatable Al-Mg alloy (5000 series) also known as EN AW-5754, AlMg3, and UNS A95754. It is widely used in marine and industrial environments due to its excellent corrosion resistance, good weldability, high formability, and stable medium strength.
Compared with conventional aluminum alloys, 5754 provides a strong balance between corrosion performance and fabrication efficiency, making it suitable for long-term structural and transportation applications.
- Excellent seawater & corrosion resistance
- Good weldability (MIG / TIG compatible)
- High forming performance
- Stable medium mechanical strength
- Suitable for marine & industrial use
- 5000 series Al-Mg alloy
Haomei supplies AA5754 / EN AW-5754 aluminum sheets in O, H111, H22, H24, H32 and H34 tempers. Standard and custom sizes are available according to ASTM B209, EN 485, GB/T 3880 and project requirements. Whether you need 5754 aluminum sheet for marine use, automotive parts, tank bodies or sheet metal processing, we can provide suitable material, reliable quality and export-ready packaging.
For customers who need both thin sheets and thicker materials, Haomei can also supply 5754 aluminum sheet and plate. In most projects, aluminum sheet usually refers to thinner material, while aluminum plate is used for thicker gauges.
What Is 5754 Aluminum Sheet?
5754 aluminum sheet is an aluminum-magnesium alloy containing approximately 2.6%–3.6% magnesium as its primary alloying element. Unlike heat-treatable aluminum alloys, 5754 obtains its strength through cold working and strain hardening processes.
5754 aluminum sheet belongs to the 5000 series Al-Mg alloy family. Magnesium is the main alloying element, giving the material good strength, excellent resistance to corrosion and dependable welding performance.
The alloy is recognized for:
- Excellent corrosion resistance
- High resistance to seawater exposure
- Superior weldability
- Good bending and forming performance
- Moderate-to-high strength
- Lightweight characteristics
- Good anodizing properties
Common names include:
- 5754 aluminum sheet
- 5754 aluminium sheet
- AA5754 aluminum sheet
- EN AW-5754 aluminum sheet
- 5754 aluminum alloy sheet
- Marine grade 5754 aluminum sheet
Compared with 3003 aluminum sheet, 5754 offers higher strength and better resistance in demanding environments. Compared with 5083 aluminum sheet, 5754 has better formability and is easier to bend, stamp and process in many sheet applications.
Because of this balance of strength, corrosion resistance and fabrication performance, 5754 aluminum alloy sheet is often selected for parts that must remain durable in wet, marine or industrial environments.
5754 Aluminum Sheet Specifications
| Item | Available Specification |
| Product Name | 5754 Aluminum Sheet |
| Alloy | 5754 / AA5754 / EN AW-5754 |
| Material Type | Aluminum-magnesium alloy sheet |
| Temper | O, H111, H22, H24, H32, H34 |
| Thickness | 0.2mm - 6mm for sheet; thicker sizes available as plate |
| Width | 80mm - 2650mm |
| Length | 1000mm - 12000mm or customized |
| Standards | ASTM B209, EN 485, GB/T 3880 |
| Surface | Mill finish, brushed, anodized, coated, embossed, PVC film protected |
| Processing | Cutting, slitting, leveling, surface protection |
| Certificate | Mill Test Certificate, CO, SGS inspection available |
| Packaging | Export wooden pallets, waterproof paper, plastic film, steel strip |
| MOQ | Based on size, temper and stock availability |
| Application | Marine, automotive, tank truck, pressure vessel, flooring, shipbuilding |
If your project has special requirements for thickness tolerance, flatness, surface quality or mechanical properties, please send us your drawing or technical standard before ordering.
Typical stock sizes include:
0.5mm 5754 Aluminum Sheet
1mm 5754 Aluminum Sheet
2mm 5754 Aluminum Sheet
3mm 5754 Aluminum Sheet
4mm 5754 Aluminum Sheet
5mm 5754 Aluminum Sheet
Custom dimensions are available according to project requirements.
Chemical Composition of 5754 Aluminum Sheet
The chemical composition of 5754 aluminum sheet is controlled according to international standards. The following values are typical reference ranges.
| Element | Content |
| Aluminum, Al | Balance |
| Magnesium, Mg | 2.6% - 3.6% |
| Manganese, Mn | ≤ 0.50% |
| Iron, Fe | ≤ 0.40% |
| Silicon, Si | ≤ 0.40% |
| Chromium, Cr | ≤ 0.30% |
| Zinc, Zn | ≤ 0.20% |
| Copper, Cu | ≤ 0.10% |
| Titanium, Ti | ≤ 0.15% |
| Others, each | ≤ 0.05% |
| Others, total | ≤ 0.15% |
Actual chemical composition can be provided with the Mill Test Certificate for each batch.
Mechanical Properties of 5754 Aluminum Sheet
5754-H111 Aluminum Sheet
| Property | Value |
| Tensile Strength | 190–240 MPa |
| Yield Strength | 80–100 MPa |
| Elongation | ≥15% |
5754-H22 Aluminum Sheet
| Property | Value |
| Tensile Strength | 210–240 MPa |
| Yield Strength | 130–160 MPa |
| Elongation | ≥10% |
5754-H32 Aluminum Sheet
| Property | Value |
| Tensile Strength | 220–260 MPa |
| Yield Strength | 140–180 MPa |
| Elongation | ≥8% |
The final mechanical properties vary depending on thickness, temper, and manufacturing process.
Available Tempers of 5754 Aluminum Sheet
5754-O Aluminum Sheet
Annealed condition with excellent formability.
- Deep drawing
- Stamping parts
- Tank components
- Automotive panels
- Industrial enclosures
5754-H111 Aluminum Sheet
Moderate strength and excellent corrosion resistance.
- Boat panels
- Ship components
- Marine flooring
- Structural sheets
- Welded assemblies
5754-H22 Aluminum Sheet
Strain-hardened with higher strength than O temper.
- Vehicle panels
- Truck bodies
- Trailer panels
- Tank trucks
- General fabrication
5754-H24 Aluminum Sheet
Good strength and stable mechanical properties.
- Automotive parts
- Transportation panels
- Flooring sheets
- Tank bodies
- Equipment covers
5754-H32 Aluminum Sheet
Stable strength and reliable processing performance.
- Vehicle components
- Building panels
- Sheet metal parts
- Protective covers
- Structural panels

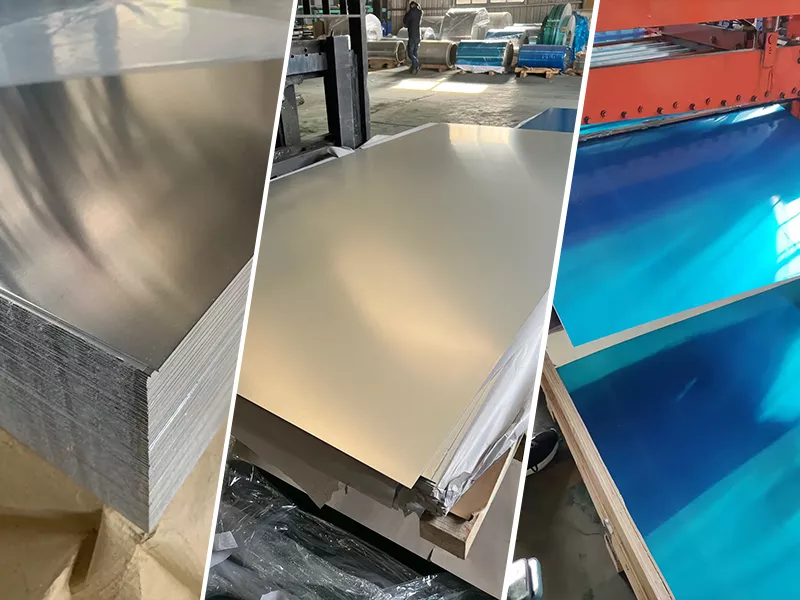

Surface Finish Options of 5754 Aluminum Sheet
Haomei supplies 5754 aluminum sheets with different surface conditions to meet fabrication, decoration and protection requirements across various industries.
Available surface options include:
- Mill finish for general industrial applications
- Brushed finish for decorative and architectural projects
- Anodized surface for enhanced corrosion resistance and appearance
- Painted or coated surface for additional protection and color customization
- Embossed surface for improved aesthetics and slip resistance
- PVC film protection to prevent scratches during transportation and fabrication
- Degreased surface for applications requiring a clean processing condition
- Custom surface treatments available according to project requirements
For applications requiring strict surface quality, such as visible panels, automotive components, architectural projects and decorative products, please confirm the required surface finish before placing an order.
Advantages of 5754 Aluminum Sheet
5754 aluminum sheet is used in many industries because it offers a practical combination of performance and workability.
Key advantages include:
- Excellent corrosion resistance, especially in marine and humid environments
- Good weldability with MIG and TIG welding methods
- Higher strength than many 3000 series aluminum sheets
- Good forming, bending and stamping performance
- Suitable for anodizing, coating and other surface treatments
- Good fatigue resistance for transportation and dynamic applications
- Lightweight material for reducing vehicle and equipment weight
- Good machinability for cutting, drilling and general fabrication
- Available in different tempers for different strength and forming needs
- Custom sizes available for project-based purchasing
For buyers looking for a material that is strong, corrosion-resistant and easier to process than high-strength marine alloys, 5754 aluminum sheet is often a cost-effective option.
Applications of 5754 Aluminum Sheet
The alloy is particularly suitable for applications requiring excellent corrosion resistance, weldability, and moderate strength.
Transportation
- Tank trucks
- Railway vehicles
- Commercial trailers
- Logistics containers
Marine Industry
- Ship structures
- Boat hull components
- Offshore facilities
Pressure Vessels
- Chemical tanks
- Storage vessels
- Industrial containers
Construction
- Curtain walls
- Roofing systems
- Decorative panels
Industrial Manufacturing
- Machinery housings
- Heat exchangers
- Equipment enclosures
5754 Aluminum Sheet for Marine Applications
5754 marine grade aluminum sheet is widely used in marine environments because of its excellent resistance to seawater corrosion. It performs well in humid, salty and industrial atmospheres, making it suitable for boat and ship components.
Common Marine Applications
- Boat hull panels
- Ship side panels
- Deck panels
- Marine flooring
- Cabin structures
- Hatch covers
- Dock components
- Welded marine assemblies
For marine projects, 5754-H111 and 5754-H22 are commonly selected. These tempers offer a good balance of strength, corrosion resistance and fabrication performance.
If higher strength is required for heavy-duty ship structures, 5083 aluminum may also be considered. For formed marine panels and moderate-strength structures, 5754 is often easier to process.
5754 Aluminum Sheet for Automotive Applications
In the automotive and transportation industries, lightweight materials are increasingly used to improve fuel efficiency and reduce structural weight. 5754 aluminum sheet is a practical choice for vehicle components because it provides good strength, corrosion resistance and forming performance.
Typical automotive and transportation uses include:
- Vehicle body panels
- Car doors
- Truck body panels
- Trailer side panels
- Commercial vehicle flooring
- Fuel tanks
- Tank truck bodies
- Protective covers
- Structural sheet parts
5754 aluminum sheet helps reduce vehicle weight while maintaining durability. It also supports welding, forming and surface treatment according to production requirements.
5754 Aluminum Sheet for Tank Trucks and Pressure Vessels
5754 aluminum alloy sheet is widely used in tank truck and pressure vessel applications due to its excellent corrosion resistance and reliable welding performance. It is suitable for many types of tanks where moderate strength and good fabrication properties are required.
Common uses include:
- Tank truck bodies
- Fuel tanks
- Storage tanks
- Pressure vessel components
- Liquid transport containers
- Welded tank structures
Material selection should always be confirmed based on transported medium, working pressure, design code, and customer specifications to ensure safety and performance compliance.
5754 Aluminum Sheet vs 5052 Aluminum Sheet
5754 and 5052 are both 5000 series aluminum-magnesium alloys. They have good corrosion resistance and are widely used in sheet metal fabrication. However, they are not exactly the same.
| Item | 5754 Aluminum Sheet | 5052 Aluminum Sheet |
| Alloy Series | 5000 series Al-Mg | 5000 series Al-Mg |
| Strength | Medium to high | Medium |
| Corrosion Resistance | Excellent | Excellent |
| Formability | Good | Very good |
| Weldability | Good | Good |
| Typical Uses | Marine, automotive, tank truck, flooring | General sheet metal, marine parts, electronics, enclosures |
| Suitable For | Parts needing higher strength and corrosion resistance | Parts needing better formability and general corrosion resistance |
In simple terms, 5052 is often preferred for general sheet metal parts with excellent forming needs, while 5754 is often selected when slightly higher strength and marine/transportation performance are required.
5754 Aluminum Sheet vs 5083 Aluminum Sheet
5754 and 5083 are both marine-related 5000 series alloys, but their strength levels and processing characteristics are different.
| Item | 5754 Aluminum Sheet | 5083 Aluminum Sheet |
| Strength | Medium to high | Higher |
| Formability | Better | Moderate |
| Corrosion Resistance | Excellent | Excellent |
| Weldability | Good | Good |
| Common Marine Use | Panels, decks, cabins, formed parts | Ship structures, heavy marine plates, pressure vessels |
| Processing | Easier to bend and form | Better for high-strength structures |
| Typical Thickness | Sheet and medium plate | Medium and thick plate |
If the project requires heavy structural strength, 5083 may be more suitable. If the project needs better forming, bending and moderate strength, 5754 aluminum sheet is often the better choice.
5754 Aluminum Sheet and 5754 Aluminum Plate: What Is the Difference?
The difference between aluminum sheet and aluminum plate is usually based on thickness.
In many industrial applications:
- 5754 aluminum sheet usually refers to thinner material, commonly below 6mm
- 5754 aluminum plate usually refers to thicker material, commonly above 6mm
However, thickness definitions may vary by country, standard and supplier. Haomei can supply both 5754 aluminum sheet and 5754 aluminum plate. If you are not sure which product is suitable, send us your required thickness, application and processing method. Our team can help confirm the right material.
5754 Aluminum Sheet Processing Services
To help customers reduce material waste, lower manufacturing costs and improve production efficiency, Haomei provides customized processing services for 5754 aluminum sheet, plate and coil. These services allow customers to receive material ready for fabrication, reducing additional handling and processing time.
Precision Cutting
5754 aluminum sheet can be cut to customer-specified lengths and widths, minimizing scrap and improving material utilization.
Slitting Services
Aluminum coils can be slit into narrow strips suitable for transportation equipment, industrial manufacturing and fabrication projects.
Leveling & Flatness Control
Advanced leveling equipment helps improve sheet flatness and ensures consistent processing performance.
Surface Protection
PVC protective film can be applied to prevent scratches during transportation, storage and fabrication.
Custom Packaging
Sheets can be packed according to thickness, dimensions and project requirements for easier inventory management.
Export Documentation
Export labeling, product identification and shipping documentation are available to meet international trade requirements.
Haomei has supplied 5754-H111 aluminum sheets for shipbuilding projects where the material was delivered pre-cut to customer-specified hull panel dimensions and protected with PVC film. This helped reduce on-site cutting work, improve fabrication efficiency and minimize material waste during assembly.
For additional fabrication requirements such as CNC machining, punching, bending or special processing, customers can provide drawings for technical evaluation.

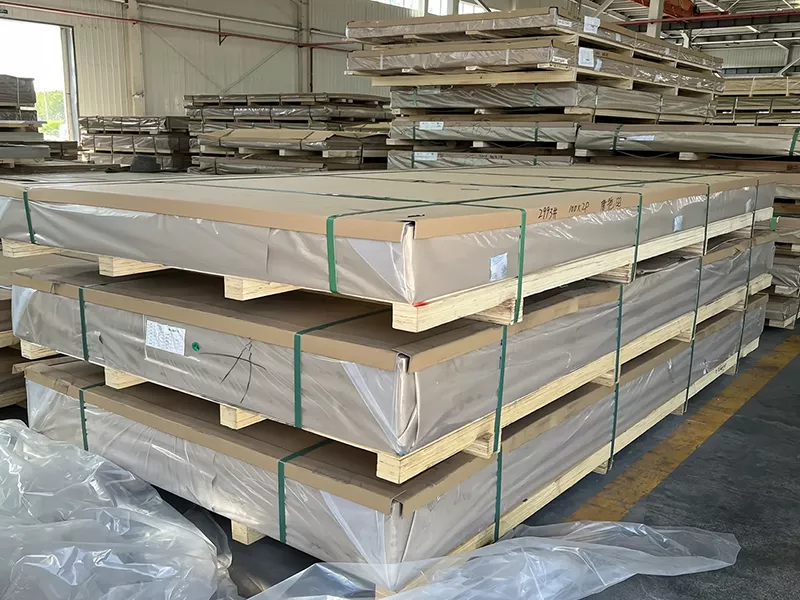

Export Packaging and Global Delivery
Proper packaging is essential for maintaining the surface quality and dimensional accuracy of marine grade 5754 aluminum sheet during international transportation. Haomei uses export-standard packaging designed for long-distance sea freight, railway shipment and truck transportation.

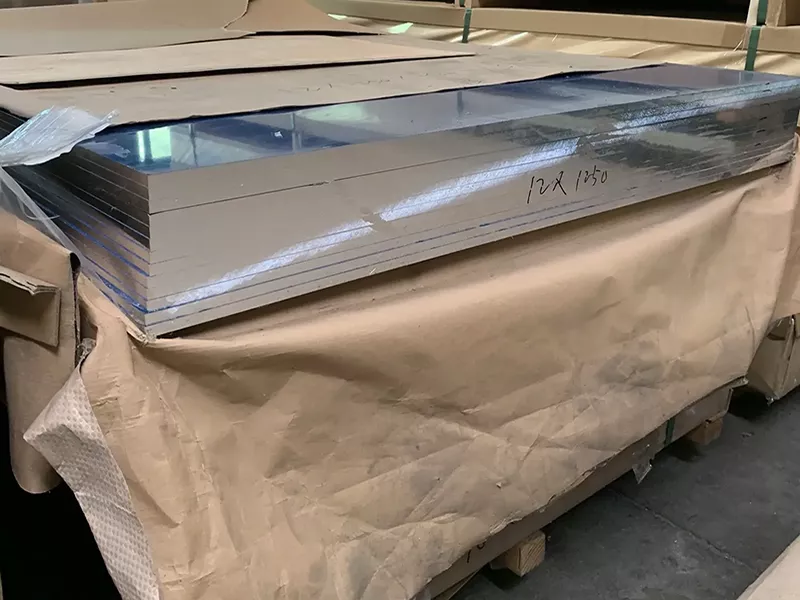

Waterproof Protection
- Waterproof kraft paper
- Moisture-resistant plastic film
- PVC protective film available
Structural Protection
- Wooden pallets
- Fumigation-free wooden cases
- Steel strip reinforcement
- Corner and edge protection

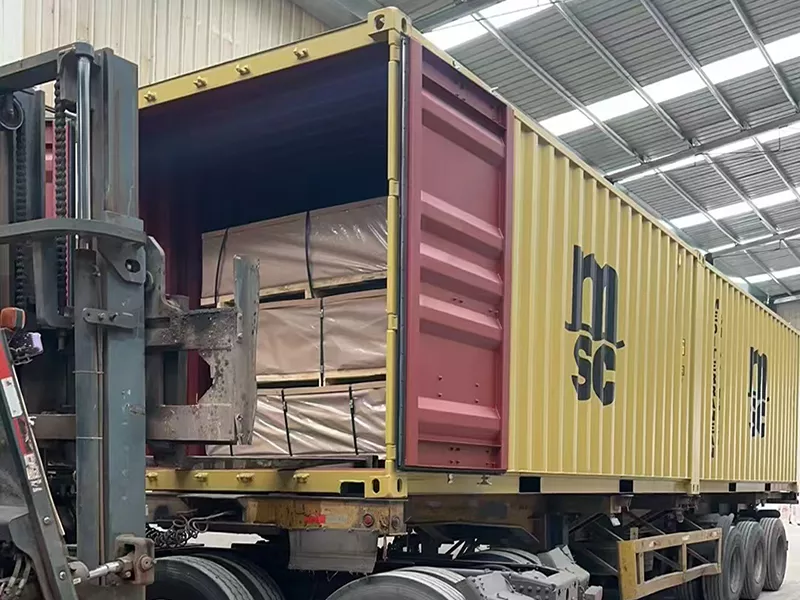

Container Safety
- Anti-movement loading support
- Container moisture protection
- Clear shipment identification labels
Haomei has supplied 5754 aluminum sheets for marine flooring, shipbuilding and transportation projects in Europe. Orders are packed with waterproof paper, plastic film, wooden pallets and steel strip reinforcement to protect the material from moisture, scratches and damage during long-distance ocean transportation.
Quality Control of 5754 Aluminum Sheet
Every batch of Haomei 5754 aluminum sheet is inspected throughout production and before shipment. Quality control procedures help ensure compliance with customer specifications and international standards.
| Inspection Item | Purpose |
| Chemical Composition | Verify alloy compliance |
| Mechanical Properties | Check strength and elongation |
| Thickness Tolerance | Ensure dimensional accuracy |
| Width & Length | Confirm order specifications |
| Surface Quality | Inspect scratches, dents and defects |
| Flatness | Improve fabrication performance |
| Edge Quality | Reduce processing issues |
| Packaging Inspection | Protect products during shipment |
Available Certificates: Mill Test Certificate (MTC), Certificate of Origin (CO), Commercial Invoice, Packing List, SGS Inspection Report and Third-Party Inspection Documents.
Haomei Aluminum provides 5754 aluminum sheet with full quality documentation and inspection records. Products can be manufactured according to ASTM B209, EN 485, GB/T 3880 and other specified standards, helping customers meet project, certification and procurement requirements.
Why Choose Haomei as Your 5754 Aluminum Sheet Supplier?
Haomei supplies 5754 aluminum sheet, plate and coil to customers in marine engineering, transportation, automotive manufacturing, construction and industrial fabrication worldwide.
Industry Experience
Supplying 5754 aluminum sheet to marine, shipbuilding and transport industries across Germany, Italy, Spain, France, Netherlands, Turkey, UAE, Saudi Arabia, India, South Korea, Vietnam, Brazil and Mexico.
Temper Range
5754-O, 5754-H111, H22, H24, H32 and customized tempers available.
Custom Sizes
Thickness, width and length tailored to project requirements.
Standards Compliance
ASTM B209, EN 485, GB/T compliant production.
Documentation
Full export certificates and inspection documents provided.
Global Delivery
Export-grade packaging for safe sea and international shipping.
How to Order 5754 Aluminum Sheet
Please provide the following specifications to ensure accurate quotation and faster processing.
| Item | Requirement |
| Alloy | 5754 / AA5754 / EN AW-5754 |
| Temper | H111 or required condition |
| Thickness | As required |
| Width | As required |
| Length | As required |
| Quantity | By order |
| Surface | Mill finish / PVC film / coated (optional) |
| Standard | ASTM B209 / EN 485 / GB/T |
| Application | Marine / Transportation / Industrial use |
| Destination Port | As per shipment requirement |
- Product: 5754-H111 Aluminum Sheet
- Size: 6mm × 1500mm × 6000mm
- Quantity: 20 Tons
- Application: Ship Deck Construction
- Destination: Rotterdam, Netherlands
- Certificate: MTC Required
Get a Free Quote for 5754 Aluminum Sheet
Tell us your required alloy (5754 / AA5754), temper, thickness, dimensions and quantity. Our team will reply with a competitive quotation within 12 hours.
Get 5754 Aluminum Sheet QuoteThe more detailed the inquiry information, the faster Haomei Aluminum can confirm pricing, lead time, production schedule and packaging solutions.
FAQ about 5754 Aluminum Sheet
What is 5754 aluminum sheet used for?
5754 aluminum sheet is used for marine panels, boat components, automotive body panels, tank trucks, fuel tanks, pressure vessels, flooring, shipbuilding, transportation equipment, and industrial sheet metal parts.
Is 5754 aluminum sheet marine grade?
Yes. 5754 aluminum sheet has excellent corrosion resistance in marine and humid environments. It is widely used for boat panels, ship components, decks, and other marine structures.
What tempers are available for 5754 aluminum sheet?
Common tempers include O, H111, H22, H24, H32, and H34. O temper offers the best formability, while H22, H24, and H32 provide higher strength. H111 is commonly used in marine and structural applications.
What is the difference between 5754 aluminum sheet and 5754 aluminum plate?
The main difference is thickness. 5754 aluminum sheet is typically thinner (usually below 6mm), while 5754 aluminum plate is thicker than 6mm. Both can be supplied based on project requirements.
Can 5754 aluminum sheet be welded?
Yes. It has good weldability and is suitable for common processes such as MIG and TIG welding.
Can 5754 aluminum sheet be bent?
Yes. It has good bending and forming performance, especially in O and H111 tempers. The final result depends on thickness, temper, bending radius, and processing method.
Is 5754 aluminum sheet better than 5052 aluminum sheet?
It depends on the application. 5754 generally provides slightly higher strength and is widely used in marine and transportation applications, while 5052 is known for excellent formability in general sheet metal work.
Is 5754 aluminum sheet stronger than 5083 aluminum sheet?
No. 5083 aluminum typically offers higher strength than 5754. However, 5754 provides better formability and is easier to process for many sheet applications.
What standards are available for 5754 aluminum sheet?
5754 aluminum sheet can be supplied according to ASTM B209, EN 485, GB/T 3880, and other customer-required standards.
Can you provide custom sizes?
Yes. Custom thickness, width, and length are available. Cutting, slitting, and leveling services can also be provided.
Do you provide Mill Test Certificate?
Yes. Mill Test Certificates (MTC) are available for each batch, and third-party inspection can be arranged if required.
What information is needed for a quotation?
Please provide alloy, temper, thickness, width, length, quantity, surface requirement, standard, application, and destination port for an accurate quotation.
Products you may be interested in
- 5754 Aluminum Plate
- 5754 O Aluminum Plate Sheet
- 5754 H111 Aluminum Plate Sheet
- 5754 H22 Aluminum Plate Sheet
- 5754 H12 Aluminum Plate Sheet
- 5754 H14 Aluminum Plate
- 5754 H114 Aluminum Plate Sheet
- 5754 H24 Aluminum Plate Sheet
Further reading
Users viewing this material also viewed the following
