5454 H34 aluminum plate sheet

5454 H34 aluminum alloy belongs to the Al-Mg series cold-work strengthened alloys, featuring medium strength, excellent corrosion resistance, and good weldability. It is widely used in shipbuilding, automotive, pressure vessels, and other fields.

5454-H34 aluminum alloy is a specially treated aluminum alloy designed to improve its mechanical properties and corrosion resistance. This treatment is achieved through strain hardening and stabilization processes, giving it a strength between the fully annealed (O temper) and fully hardened (H38 temper) conditions.

5454-H34 aluminum alloy not only offers excellent tensile and bending strength, but also maintains good workability and corrosion resistance. It is suitable for extensive applications in aerospace, automotive manufacturing, and shipbuilding engineering, where high strength and corrosion resistance are required.

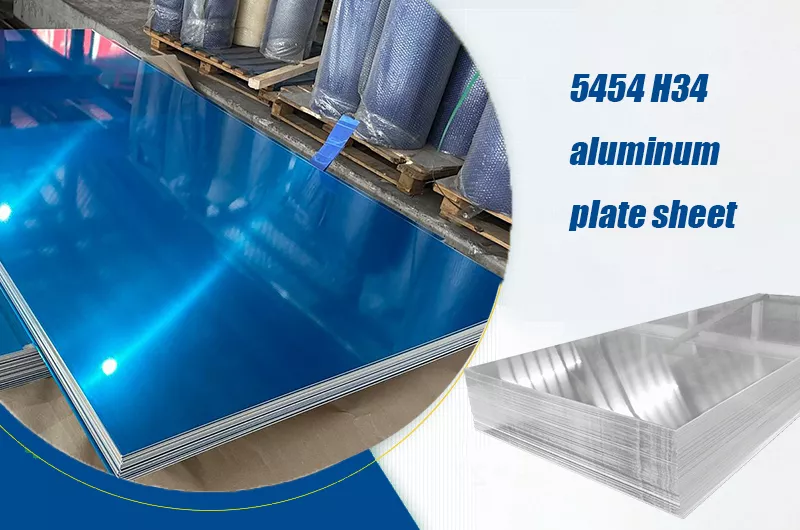

5454 h34 aluminum sheet plate

The strength of 5454 H34 aluminum plate is achieved through cold working (H34 temper) rather than heat treatment. This makes it suitable for demanding applications such as marine equipment, pressure vessels, and automotive components, performing excellently in harsh environments.

With its balanced mechanical properties, outstanding corrosion resistance, and ease of processing, 5454 H34 aluminum alloy has become a key material in the industrial field. During design and use, appropriate processing methods and surface treatments should be selected according to specific conditions, and welding and heat treatment standards should be strictly followed to fully utilize its performance advantages.

The specification introduction of 5454 h34 aluminum sheet plate

5454 specification
Alloy	5454
Temper	H34
Thickness	0.5mm-300mm
Width	500-2650mm
Length	500-12000mm

5454 Alloy

Main alloying elements:

Magnesium (Mg): approx. 2.4% - 3.0%. Magnesium is the primary strengthening element, significantly improving aluminum strength while maintaining good corrosion resistance and weldability.
Manganese (Mn): approx. 0.5% - 1.0%. Manganese provides additional solid solution strengthening and improves the alloy's recrystallization structure.
Chromium (Cr): added in small amounts, helps enhance resistance to stress corrosion cracking.

Main features:

Medium strength: Strength between 5052 and 5083/5086.
Excellent corrosion resistance: Especially resistant to chloride-induced stress corrosion cracking in marine and chemical industrial environments.
Good weldability: Can be welded using multiple methods, with high post-weld strength recovery.
Stable performance at elevated temperatures: Compared to higher Mg 5xxx alloys (e.g., 5083), 5454 is less prone to sensitization at higher temperatures.

H34 (Cold Work Hardened Temper)

"H" denotes a cold-work hardened temper, where material strength is increased through cold working processes such as rolling or stretching. "H34" is a specific subdivision.

H3X: Indicates the material has been cold-worked and stabilized. Stabilization treatment (usually low-temperature heating) stabilizes the material’s properties, preventing changes caused by natural aging at room temperature.

The first digit 3: Represents the final mechanical properties lying between H32 and H36.

The second digit 4: Specifically defines the strength level of the material. H34 indicates that the material has been cold-work hardened to a specific standard strength range.

H34 means that this 5454 aluminum plate/coil has been hardened to a specific strength level via cold rolling or similar processes before leaving the factory, and has undergone stabilization treatment, resulting in stable and predictable performance.

5454 H34 Properties

Strength: Medium-high, higher than 5454-O (annealed) and 5052-H32, approximately 20% stronger than 5052 aluminum.
Workability: Good formability, but slightly lower than O temper.
Excellent corrosion resistance: Outstanding stress corrosion cracking resistance, especially in marine and chemical environments, superior to alloys like 5154.
Excellent weldability: Minimal strength loss after welding, maintains good weld strength, suitable for TIG, MIG, and resistance welding processes.
High plasticity: Good formability, easy to process into various shapes.
Cold work hardened: H34 temper indicates strength is achieved via cold working.
Thermal stability: Good performance at low temperatures, suitable for cryogenic applications.

5454 H34 Corrosion Resistance

Excellent corrosion resistance: Outstanding resistance to pitting and exfoliation corrosion in harsh marine environments, chlorides, acid rain, and industrial atmospheres; stress corrosion cracking resistance significantly better than 5154 alloy.
Wide application range: With excellent corrosion resistance and strength, it is ideal for manufacturing ship decks, marine engineering structures, and chemical containers.
Excellent surface treatment compatibility: 5454 aluminum can undergo anodizing or plating, further improving corrosion resistance, wear resistance, and providing decorative appearance to extend service life.

5454 H34 aluminum plate sheet ASTM specification

AMS-QQ-A-250/10
ASME SB-209
ASTM B209

5454 H34 aluminum alloy complies with ASTM B209, AMS-QQ-A-250/10, and ASME SB-209 standards. Due to its excellent corrosion resistance, it is primarily used in marine environments. This aluminum alloy exhibits good weldability and strength, making it suitable for structural applications in the marine and transportation industries.

The chemical composition of 5454 h34 aluminum plate

5454 Alloy %
Si	0.25
Fe	0.40
Cu	0.10
Mn	0.5-1.0
Mg	2.4-3.0
Cr	0.05-0.20
Ni	-
Zn	0.25
Ti	0.20
Al	Remainder

The mechanical properties of 5454 h34 aluminum sheet

Material	Specified thickness (mm)	Tensile strength (Mpa min)	Yield strength (Mpa min)	Elongation min, % in 50mm
5454-H34 or H24	0.50-0.63	270-325	200	4
	0.63-1.20	270-325	200	5
	1.20-6.30	270-325	200	6
	6.30-25.00	270-325	200	10

5454 H34 Applications

Shipbuilding and marine engineering: Hull structures, decks, storage compartments, benefiting from corrosion resistance and weldability.
Automotive manufacturing: Wheels, fuel tanks, body panels, reducing weight by 30-40% and improving fuel efficiency.
Pressure vessels: LPG tanks, compressed air tanks, meeting high strength and corrosion resistance requirements.
Low-temperature environments: LNG tanks, cryogenic pipelines, maintaining stable strength and toughness at low temperatures.
Chemical equipment: Storage tanks, pipelines, strong resistance to stress corrosion cracking.

5454 H34 Fabrication and Welding Characteristics

Forming: Supports cold bending, stamping, and other forming processes. Minimum bend radius in H34 temper is approximately 2-3 times the plate thickness.
Good weldability: Recommended TIG/MIG welding with 5356 or 5554 filler wires; post-weld flux residues should be cleaned to prevent corrosion.
Post-weld treatment: Stress relief annealing at 345℃ for 1-2 hours if necessary, though this temperature may slightly reduce H34 strength.

5454 H34 vs. Other Aluminum Alloys

5454 H34 vs. 5052-H32: 5454-H34 has higher strength, especially more stable at elevated temperatures.
5454 H34 vs. 5083-H321: 5083 has higher strength, but 5454 has better stress corrosion resistance and potentially lower cost.
5454 H34 vs. 6061-T6: 6061 is a heat-treatable alloy with higher strength, but corrosion resistance and weldability are inferior to 5454.

"5454 H34" is a well-balanced, highly practical structural aluminum alloy, particularly suitable for applications requiring welding, load-bearing capacity, and exposure to corrosive environments.

5454 H34 Advantages

Comparison Alloy	5454 H34 Advantages
5052	20% higher strength, more suitable for high-stress structures.
5154	Superior corrosion resistance, especially in chloride environments.
6061	Significantly improved weldability and corrosion resistance, suitable for marine environments.
5083	Better formability, lower cost, suitable for medium strength requirements.

5454 H34 aluminum plate sheet Related Questions

What is 5454 grade aluminum?

5454 aluminum is a predominantly aluminum alloy with magnesium as the primary secondary element. It belongs to the 5xxx series of aluminum alloys, renowned for its excellent corrosion resistance, weldability, and moderate strength.

What does H34 aluminum mean?

H34 designation refers to the temper or hardness state of aluminum alloy. In this case, it indicates that the aluminum has undergone strain hardening and stabilization treatment to achieve specific strength levels.

What is the difference between 5454 H32 and H34?

H32: This temper signifies that the aluminum alloy has undergone strain hardening and stabilization to a lower degree, offering moderate strength and good formability.

H34: In comparison to H32, this temper state indicates a higher degree of strain hardening and stabilization, resulting in higher strength levels and better resistance to stress corrosion cracking.

What is equivalent to Aluminium 5454?

UNS A95454, ISO AlMg3Mn, Aluminium 5454, AA5454, Al5454
