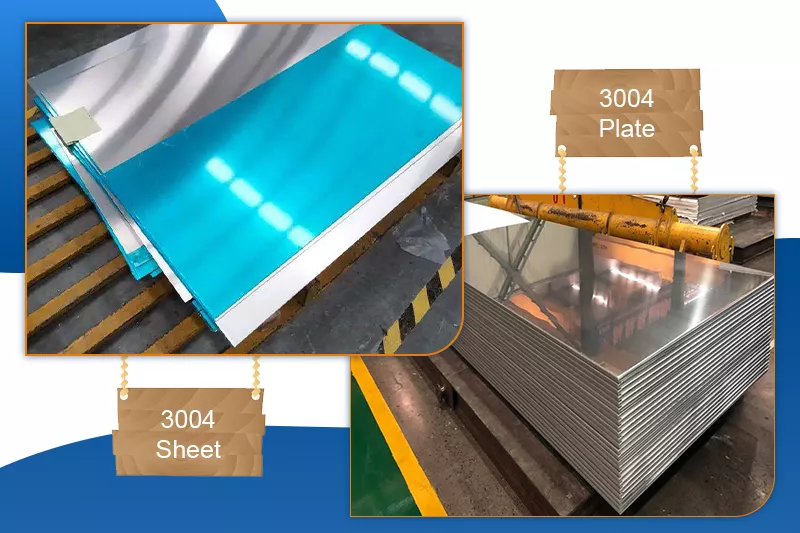

3004 Aluminum Plate Sheet
The 3004 series aluminum sheet also belongs to the aluminum-manganese alloy series and is a corrosion-resistant aluminum alloy. The strength of 3004 is higher than 3003, with excellent formability and good corrosion resistance, suitable for manufacturing parts that require higher strength than the 3003 alloy.
- It cannot be heat treated—the mechanical strength is obtained through cold working (rolling, tempering).
- Due to the addition of magnesium (about 0.8–1.3%) and manganese (1.0–1.5%), it is stronger than the 3003 aluminum alloy.
3004 aluminum has good formability, weldability, and corrosion resistance; it welds well but has poor machinability.
3004 aluminum is usually processed by rolling and extrusion, but forging is generally not performed. As a forging alloy, it is not used for casting.
The 3004 aluminum alloy is a medium-strength general-purpose aluminum alloy in the 3000 series, but with slightly lower ductility. 3004 aluminum alloy is commonly used for food packaging (foil, containers), piping systems, and storage tanks. It can achieve higher hardness through cold working and has good deep drawing performance, suitable for manufacturing parts with complex shapes.
Haomei Aluminum 3004 Aluminum Sheet Specifications
| Alloy | 3004 alloy (3000 series) |
| Thickness | 0.20-50mm |
| Width | 500-2600mm |
| Length | 500-2600mm |
| Thickness Tolerance | ±0.02mm |
| Temper | F, H112, O, H111, H12, H22, H32, H14, H24, H34, H16, H26, H18, H28, H38 |
| Production | Hot rolled or Cold rolled |
| Surface Technology | Mill Finish, Polished, Brushed, Embossed, Powder coating, Anodizing, , Perforated Aluminum Sheet |
| Payment | TT or LC |
| Typical application | Cans manufacture, aluminum sheets for roof tiles, Heat sink materials such as liquid crystal back. |
Common Tempers of 3004 Aluminum Sheet & Plate
- H14
- H18
- H19
- O
- H34
- H38
Recommended 3004 Aluminum Products
- 3004 O Aluminum Sheet
- 3004 H24 Aluminum Plate
- 3004 Aluminum Sheet (4x8)
| Feature Indicators | 3004-O (Fully Soft) | 3004-H24 (Semi-Hard) | 3004 (4x8 Sheet) |
| Strength Level | Low strength, highest ductility | Medium strength, balanced performance | Depends on specific thickness and temper |
| Processing Method | Suitable for deep drawing, complex stamping | Suitable for bending, color coating, roll forming | Suitable for large-area laying, laser cutting |
| Corrosion Resistance | Excellent | Excellent | Excellent (especially resistant to atmospheric corrosion) |
3004 O Aluminum Sheet
The O temper refers to the fully annealed state of the aluminum, which is the softest and most ductile state among 3004 aluminum alloys.
- Performance Features: At this point, the internal stress of the material is completely eliminated, the tensile strength is the lowest, but the elongation after fracture is the highest. It is extremely easy to perform complex bending, stretching, and spinning, and it will not easily spring back after processing.
- Core Applications: Mainly used for components with very high forming requirements, such as lamp holders, deep-drawn containers, heat exchanger tubes, and art decorative pieces that require large deformation.
3004 H24 Aluminum Plate
The H24 temper refers to aluminum that has been cold-worked and then partially annealed. Its strength is approximately between fully soft (O) and fully hard (H28).
- Performance Features: This is a "semi-hard" condition. It is stronger than the O temper and less prone to denting or deformation; at the same time, it has better toughness and processing allowance than fully hard temper, usually not cracking when bent at 90 degrees.
- Core Applications: This is the most commonly used temper of 3004 aluminum sheet in the construction field. Widely used as substrate for color-coated aluminum coils, aluminum-magnesium-manganese roof panels (e.g., 65-430 type roofs), louver slats, and lightweight automotive parts.
3004 Aluminum Sheet (4x8)
4x8 refers to the internationally common sheet size specification (4 feet x 8 feet, approximately 1220mm x 2440mm), which is the most common stock size in engineering procurement.
- Performance Features: This specification of 3004 aluminum sheet usually has very high surface flatness. Due to standardized sizing, it is highly efficient in logistics, cutting layout (minimizing waste), and factory batch production.
- Core Applications: It is the preferred specification for industrial storage tanks, large-area exterior wall panels, advertising signs, and cleanroom partition walls in factories.
3004 Aluminum Material Characteristics
3004 has low strength (slightly higher than industrial pure aluminum) and cannot be strengthened by heat treatment, so cold working methods are used to improve its mechanical properties.
- It has high plasticity in the annealed state
- It has good plasticity in semi-cold hardening
- It has low plasticity in cold hardening
- High plasticity. 3004 aluminum sheet in annealed condition has high plasticity, in semi-cold hardened condition has good plasticity, and in cold-hardened condition has certain plasticity.
- Good machinability. It can adapt to the highest speeds achievable by most machines in milling, engraving, designing, and other mechanical processing.
- Slightly higher strength. 3004 aluminum sheet maintains the excellent machinability and corrosion resistance of natural aluminum while having slightly higher strength, better than 3003 aluminum sheet, and about 10% higher than 1100 series aluminum sheet.
- Good anodizing performance. After anodizing, the surface corrosion resistance of 3004 aluminum sheet is enhanced and it can present a rich variety of colors.
- Good corrosion resistance. Especially suitable for outdoor or humid environments, performing excellently under harsh conditions.
- Good weldability. Excellent welding performance can be achieved using standard welding techniques (TIG/MIG).
- Poor heat treatment performance. Can only be strengthened through cold working.
- Variable machinability. Easier to machine in hardened state, harder to machine in softened state.
3004 Aluminum Plate Standards
- ASTM B209
- EN573
- EN485
3004 Aluminum Plate Advantages Disadvantages
3004 Aluminum Plate Advantages
- Excellent weldability
- High strength
- Good corrosion resistance
3004 Aluminum Plate Disadvantages
3004 aluminum may not be suitable for all applications. Some of its disadvantages are that it is not heat treatable and has poor machinability.
3004 Aluminum Plate Performance Informations
| Property | Details |
| Machinability | Good machinability in the hard temper; oil lubricant is used for machining operations. |
| Forming | Can be formed using conventional hot working or cold working methods. |
| Welding | Can be welded using TIG or MIG welding techniques. |
| Heat Treatment | Non-heat treatable alloy. |
| Forging | Forged at temperatures ranging from 372 to 510°C (700 to 950°F). |
| Hot Working | Hot worked at 260 to 483°C (500 to 900°F). |
| Cold Working | Can be cold worked up to 75% reduction of area using conventional techniques; annealing recommended if worked beyond 75%. |
| Annealing | Annealed at 344°C (650°F) followed by cooling in air. |
| Hardening | Can be annealed by cold working. |
Equivalents of AA 3004
UNS A93004, ISO AlMn1Mg1, Aluminium 3004, AA3004, Al3004
3004 Aluminum Plate Chemical Composition Limits
| Elements | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others-Each | Others Total | Al Min |
| 3004 | 0.30 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | – | 0.25 | 0.25 | 0.05 | 0.15 | Remainder |
Typical Mechanical Properties Data of Aluminum 3004
| Alloy-Temper | Tensile Strength (ksi) | Yield Strength (ksi) | Elongation (%) |
| 3004-O | 26 | 10 | 19 |
| 3004-H34 | 39 | 29 | 5 |
| 3004-H38 | 41 | 36 | 4 |
| Temper | Thickness/mm | Tensile Strength Rm/MPa | Yield Strength Rp0.2/MPa | Elongation/% |
| 3004 O H111 | ＞0.2~0.5 | ≥155~200 | ≥60 | ≥13 |
| 3004 O H111 | ＞0.5~1.5 | ≥14 | ||
| 3004 O H111 | ＞1.5~3.0 | ≥15 | ||
| 3004 O H111 | ＞3.0~6.0 | ≥16 | ||
| 3004 O H111 | ＞6.0~12.5 | ≥16 | ||
| 3004 O H111 | ＞12.5~50 | ≥14 | ||
| 3004 H12 | ＞0.2~0.5 | ≥190~240 | ≥155 | ≥2 |
| 3004 H12 | ＞0.5~1.5 | ≥3 | ||
| 3004 H12 | ＞1.5~3.0 | ≥4 | ||
| 3004 H12 | ＞3.0~6.0 | ≥5 | ||
| 3004 H22 H32 | ＞0.2~0.5 | ≥190~240 | ≥145 | ≥4 |
| 3004 H22 H32 | ＞0.5~1.5 | ≥5 | ||
| 3004 H22 H32 | ＞1.5~3.0 | ≥6 | ||
| 3004 H22 H32 | ＞3.0~6.0 | ≥7 | ||
| 3004 H14 | ＞0.2~0.5 | ≥220~265 | ≥180 | ≥1 |
| 3004 H14 | ＞0.5~1.5 | ≥2 | ||
| 3004 H14 | ＞1.5~3.0 | ≥2 | ||
| 3004 H14 | ＞3.0~6.0 | ≥3 | ||
| 3004 H24 H34 | ＞0.2~0.5 | ≥220~265 | ≥170 | ≥3 |
| 3004 H24 H34 | ＞0.5~1.5 | ≥4 | ||
| 3004 H24 H34 | ＞1.5~3.0 | ≥4 | ||
| 3004 H16 | ＞0.2~0.5 | ≥240~285 | ≥200 | ≥1 |
| 3004 H16 | ＞0.5~1.5 | ≥1 | ||
| 3004 H16 | ＞1.5~4.0 | ≥2 | ||
| 3004 H26 H36 | ＞0.2~0.5 | ≥240~285 | ≥190 | ≥3 |
| 3004 H26 H36 | ＞0.5~1.5 | ≥3 | ||
| 3004 H26 H36 | ＞1.5~3.0 | ≥3 | ||
| 3004 H18 | ＞0.2~0.5 | ≥260 | ≥230 | ≥1 |
| 3004 H18 | ＞0.5~1.5 | ≥1 | ||
| 3004 H18 | ＞1.5~3.0 | ≥2 | ||
| 3004 H28 H38 | ＞0.2~0.5 | ≥260 | ≥220 | ≥2 |
| 3004 H28 H38 | ＞0.5~1.5 | ≥3 | ||
| 3004 H19 | ＞0.2~0.5 | ≥270 | ≥240 | ≥1 |
| 3004 H19 | ＞0.5~1.5 | ≥1 | ||
| 3004 H112 | ＞4.5~12.5 | ≥160 | ≥60 | ≥7 |
| 3004 H112 | ＞12.5~40.0 | ≥6 | ||
| 3004 H112 | ＞40.0~80.0 | ≥6 |
3004 Aluminum Plate Applications
3004 aluminum plate is used for processing parts and components that require good formability, high corrosion resistance and good weldability, or work that requires both these properties and higher strength than 1 series alloys, such as kitchen utensils, food and chemical product processing and storage equipment, tanks and cans for transporting liquid products, various pressure vessels and pipes processed with thin plates, general utensils, heat sinks, cosmetic plates, photocopier rollers, and ship materials.
3004 Aluminum Plate is suitable for drawing and ironing hard containers (beverage cans), chemical processing and storage equipment, metal plate products, building hardware, incandescent lamps and fluorescent lamp holders. It is also used in applications similar to 3003 that require good formability and higher strength.
3004 aluminum plate and strip are mainly used in chemical product production and storage devices, thin plate processing parts, building materials, building baffles, cable ducts, sewers, various lamp parts, beverage cans, corrugated boards, building materials, colored aluminum plates, and lamp holders.
3004 aluminum sheet is common in many industries, including cookware and consumer goods, packaging and chemical storage, various lighting components, shutter materials, wide curtain wall panels, LCD backlight materials, color-coated aluminum substrates. In addition, 3004 aluminum sheet can also be used for various pressure vessels and pipeline general appliances, cable pipes, sewers, kitchen utensils, heat sinks, cosmetics panels and other sheet processing.
| Product | Description |
| 3104-H19 Aluminum Plate for Can Lid (Bottom) | The 3104-H19 aluminum plate is widely used for the bottom of can lids due to its excellent formability and high strength. This alloy offers good corrosion resistance, helping extend the shelf life of canned goods, and is well-suited for high-temperature processing. |
| 3004 Aluminum Plate for Aluminum Corrugated Board | The 3004 aluminum plate is commonly used in the production of aluminum corrugated boards. Its excellent corrosion resistance, high tensile strength, and good workability make it ideal for outdoor applications in building and structural systems, especially in roofing and facade applications. |
| 3004 Aluminum Plate for Cake Tray | The 3004 aluminum plate is used in the manufacturing of cake trays due to its good formability and corrosion resistance. The alloy’s superior oxidation resistance ensures that it does not react with food, making it a safe and reliable material for food packaging. |
| 3004 Aluminum Alloy for Blinds | 3004 aluminum alloy is widely used in the production of blinds because of its excellent weather resistance, corrosion resistance, and high strength. This alloy is able to withstand harsh environmental conditions, making it ideal for building exterior windows and ventilation devices. |
| 3004-O Aluminum Plate for Lamp Holder | The 3004-O aluminum plate is utilized for lamp holders due to its good workability and moderate strength. In the O-temper state, this aluminum is easy to shape and offers excellent electrical conductivity and corrosion resistance, making it ideal for various lighting and electrical applications. |
| 3004 Aluminum Plate for Automobile Fuel Tank | The 3004 aluminum plate is used in the manufacture of automobile fuel tanks because of its excellent corrosion resistance and high strength. The lightweight properties of aluminum help reduce the overall weight of the vehicle, enhancing fuel efficiency and performance. |
| 3004 Aluminum Plate for Heat Sink | The 3004 aluminum plate is highly reliable in the production of heat sinks due to its excellent thermal conductivity and corrosion resistance. This material is commonly used in electronic devices, automotive cooling systems, and other heat dissipation components to ensure efficient heat transfer and prolonged product lifespan. |
| 3004 Aluminum Plate for Aluminum-Plastic Composite Board Substrate | The 3004 aluminum plate serves as the substrate for aluminum-plastic composite boards, offering good strength, weather resistance, and ease of processing. Its corrosion resistance ensures that it maintains excellent performance and appearance over time, making it ideal for building facades and interior decoration. |
| 3004 Aluminum Honeycomb Board Core Material | The 3004 aluminum plate is used as the core material in aluminum honeycomb boards due to its excellent strength-to-weight ratio. It provides high compressive strength and corrosion resistance, making it ideal for aerospace, architectural, and transportation applications where both lightweight and durability are essential. |
| 3004 Deep-Drawn Aluminum Plate | The 3004 deep-drawn aluminum plate is widely used in products requiring deep drawing, such as automotive parts and household appliance enclosures. Its good elongation and tensile strength ensure that it remains formable without cracking or deforming during the manufacturing process. |
| 3004 Aluminum Plate for Traffic Signs | The 3004 aluminum plate is ideal for traffic signs due to its superior weather resistance and corrosion resistance. This material can withstand exposure to harsh weather conditions, ensuring that the signs remain visible and legible for extended periods, even under sun, wind, and rain. |
| 3004 Aluminum Plate for Aluminum Curtain Wall | The 3004 aluminum plate is used in aluminum curtain walls because of its excellent corrosion resistance and workability. It is aesthetically pleasing, durable, and suitable for modern building facades, ensuring long-term performance and an attractive appearance for exterior cladding. |
| 3004 Aluminum Plate for Dinner Plate and Tableware | The 3004 aluminum plate is used in the production of dinner plates and tableware due to its good formability and corrosion resistance. This material meets food contact safety standards, is easy to clean, and ensures long-lasting durability, making it a preferred choice for tableware applications. |
| 3004 Aluminum Alloy Plate for Automobile Stamping Parts | The 3004 aluminum alloy plate is widely used for automobile stamping parts. This material provides high strength and corrosion resistance, making it suitable for vehicle body structures, chassis, and other components, helping reduce vehicle weight while enhancing durability and performance. |
Aluminum 3004 Related Questions
What is aluminum 3004 grade?
3004 aluminum is a medium-strength aluminum alloy with manganese and magnesium as the main alloying elements. It is stronger than 3003 alloy, but less ductile.
What is the difference between 3003 and 3004 aluminum?
These two general-purpose alloys are very similar. In terms of chemical composition, 3004 aluminum alloy has magnesium added to it, which makes it a bit stronger.
What is the difference between 3004 and 3104 aluminum?
3004 aluminum has higher manganese content and better strength compared to 3104 aluminum, while 3104 aluminum has better formability and corrosion resistance.
Can 3004 aluminum be used in cookware?
Yes, this grade is commonly used in kitchen and cookware manufacturing.
3004 Aluminum Related Searches
Aluminum 3004 vs 6061
The difference between Aluminum 3004 and 6061 is that 3004 is primarily used for its formability and corrosion resistance, while 6061 is known for its higher strength, machinability, and weldability.
3004 aluminum properties
3004 aluminum has properties including good corrosion resistance, moderate strength, excellent formability, and is commonly used in manufacturing beverage cans and storage tanks.
3004 aluminum young's modulus
The Young's modulus of 3004 aluminum is approximately 69 GPa (10, 000 ksi).
Aluminum 5182
Aluminum 5182 is an alloy known for its high strength, good corrosion resistance, and is commonly used in automotive and beverage can applications.
