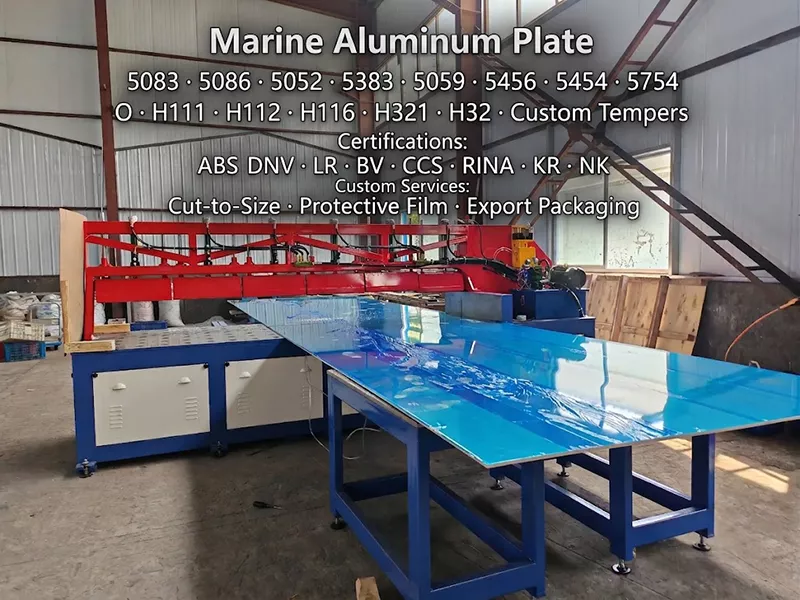

Marine Aluminum Plate and Sheet for Demanding Marine Environments
Marine grade aluminum is widely used where corrosion resistance, weldability, weight reduction and structural performance are required. The final alloy, temper, thickness and certificate requirement should be selected according to vessel design, fabrication method, service environment and applicable standards.
| Available Alloys | 5083, 5086, 5052, 5383, 5059, 5456, 5454, 5754 |
| Common Tempers | O, H111, H112, H116, H321, H32 and project-specific tempers |
| Common Applications | Boat hulls, yacht hulls, decks, fishing boats, patrol boats, marine tanks, superstructures and marine fabrication |
| Marine Certifications | ABS, DNV, LR, BV, CCS, RINA, KR or NK certification |
| Services | Custom size, cut-to-length, cut-to-width, edge trimming, protective film and export packaging |
What Is Marine Aluminum Sheet and Plate?
Marine aluminum sheet and plate refer to aluminum materials designed for use in seawater, humid, coastal and marine environments. The most common marine aluminum alloys include 5083, 5086, 5754, 5052 and 6082.
Marine grade aluminum is widely selected for boat building and shipbuilding because it provides lightweight performance, good weldability, corrosion resistance, high strength and long service life. The final material selection should be based on alloy, temper, thickness, mechanical properties, application environment, fabrication method and applicable standards.
For ship hulls, decks, bulkheads and high-strength marine welded structures, 5083 and 5086 marine aluminum plate are usually among the most requested materials. For thinner sheet applications, fuel tanks, interior panels, cabinets and boat components, 5052 marine aluminum sheet is commonly used.
Marine Aluminum Sheet and Plate Specifications
Alloy
5083, 5086, 5052, 5754, 5454, 5456 and other available grades.
Temper
O, H111, H112, H116, H321, H32.
Thickness
Typical range: 0.5 mm–300 mm or custom thickness.
Width
1000 mm, 1250 mm, 1500 mm, 2000 mm or custom width.
Length
2000 mm, 2440 mm, 3000 mm, 6000 mm or custom cut length.
Surface
Mill finish, brushed, PVC coated, checker plate or custom surface.
Standards
ASTM B209, EN 485, EN 573, AMS and other applicable standards.
Certification
DNV, ABS, BV, LR, CCS, NK, KR, RINA or other class approvals.
Haomei Marine Aluminum Sheet & Plate Alloys
5083 Marine Aluminum Plate
Widely used for welded boat hulls, decks, bulkheads and shipbuilding structures. Common marine tempers include H116 and H321.
View 5083 Marine Aluminum Plate 5083 H116 Plate 5083 H321 Plate5086 Marine Aluminum Plate
A marine aluminum alloy commonly specified for boat building, ship structures, workboats, fishing boats and corrosion-resistant welded applications.
View 5086 Marine Aluminum Plate 5086 H116 Plate5052 Marine Aluminum Sheet
Suitable for marine fabrication, lightweight components, interiors, covers, panels and selected marine tank applications.
View 5052 Marine Aluminum Sheet5456 Marine Aluminum Plate
High-strength aluminum plate for heavy-duty marine structures, thick plate requirements and selected shipbuilding applications.
View 5456 Marine Aluminum Plate5454 Marine Aluminum Plate
Corrosion-resistant aluminum plate used in marine fabrication, tank-related applications and selected marine structural components.
View 5454 Marine Aluminum Plate5754 Marine Aluminum Sheet
Marine fabrication aluminum sheet for interiors, lightweight components, panels, boat floor-related parts and corrosion-resistant formed products.
View 5754 Marine Aluminum Sheet5154 Marine Aluminum Sheet
A corrosion-resistant aluminum sheet suitable for selected marine fabrication, welded structures, boat components and formed applications requiring good strength and workability.
View 5154 Marine Aluminum Sheet5383 Marine Aluminum Plate
High-strength marine aluminum plate for high-speed vessels, marine structures and applications requiring improved strength performance.
5059 Marine Aluminum Plate
High-strength aluminum plate for fast vessels, patrol boats and specialized shipbuilding structures where project requirements call for advanced performance.
Which Marine Aluminum Alloy Should You Choose?
| Alloy | Typical Marine Use | Corrosion Resistance | Weldability |
| 5083 | Hulls, decks, marine structures, shipbuilding and welded fabrication | Excellent for appropriate marine applications | Excellent |
| 5086 | Hulls, workboats, fishing vessels and marine structures | Excellent for appropriate marine applications | Excellent |
| 5383 | High-performance marine structures | Excellent for specified applications | Excellent |
| 5059 | High-strength marine and ship structures | Excellent for specified applications | Excellent |
| 5456 | Marine structures and specialized welded fabrication | Excellent for appropriate applications | Excellent |
| 5454 | Tanks and selected fabricated components | Very good | Good |
| 5052 | Tanks, panels, enclosures and lighter marine fabrication | Very good | Good |
| 5754 | Panels, formed components and marine fabrication | Very good | Good |
Marine Aluminum Sheet & Plate Applications
Haomei Aluminum supplies marine-grade aluminum sheet and plate for hulls, decks, superstructures and other fabricated components. Alloy, temper and plate thickness can be selected according to vessel design, welding requirements and service conditions.
Aluminum Plate for Boat Building
Used in welded boat construction, including hulls, decks, bulkheads and structural sections. Common marine alloys are available in different tempers and cut sizes.
Aluminum Plate for Shipbuilding
Suitable plate materials for aluminum ships, including hull structures, decks, superstructures and fabricated marine sections where low weight and corrosion resistance are important.
Aluminum Boat Hull Plate
Marine aluminum plate selected for welded hull construction, with thickness and alloy determined by hull design, vessel size and fabrication requirements.
Aluminum for Workboats
Practical aluminum plate solutions for workboats, patrol boats and utility vessels. Material options can be matched to repeated welding, impact and marine exposure.
Aluminum for Fishing Boats
Aluminum sheet and plate for fishing vessel hulls, decks, partitions and fabricated components, offering a balance of weight, durability and corrosion resistance.
Aluminum for Yachts
Marine aluminum is used in selected yacht hulls, decks, superstructures and interior structural components where lightweight construction is a priority.
Aluminum for Offshore Structures
Plate materials for selected offshore and coastal structures exposed to demanding marine environments. Alloy and temper should be specified according to the application.
Marine Decks & Superstructures
Aluminum plate for decks, cabin structures, superstructures, walkways and fabricated panels. Different thicknesses are available for structural and non-structural applications.
Marine Tanks & Components
Aluminum sheet and plate can be used for selected marine tanks, covers, enclosures, panels and fabricated components where suitable alloy compatibility is required.
Marine Aluminum Plate Certificates
Haomei Aluminum provides marine aluminum plate with classification and material documentation for qualified orders. Available certification options may include ABS, BV, CCS, DNV, RINA and LR, depending on alloy, temper, product specification and project requirements.
-
ABS Certificate -
BV Certificate -
CCS Certificate -
DNV Certificate -
RINA Certificate -
LR Certificate
Marine Aluminum Plate Quality Control

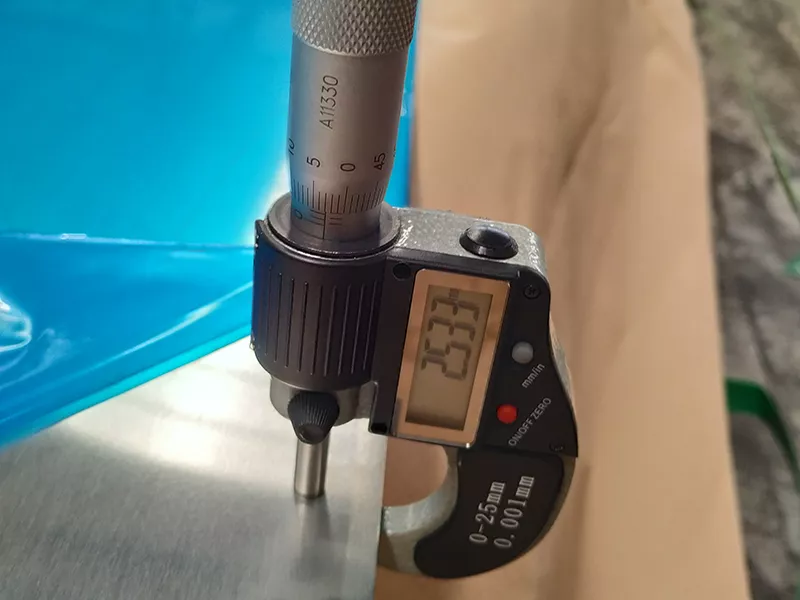

Thickness Inspection
Plate thickness is checked against the specified tolerance to help ensure consistency across the supplied material and meet drawing or order requirements.

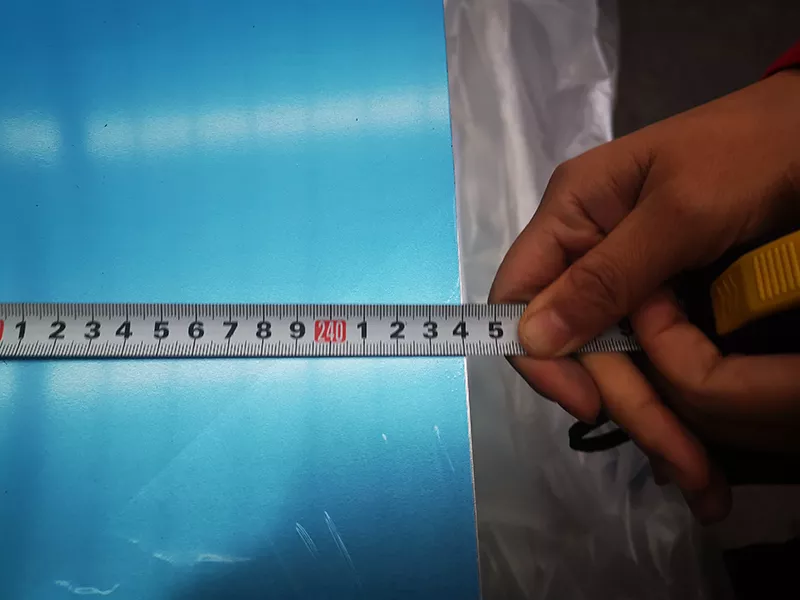

Width Inspection
Width and dimensional tolerances are checked before shipment, with cut sizes prepared according to the agreed product specification.

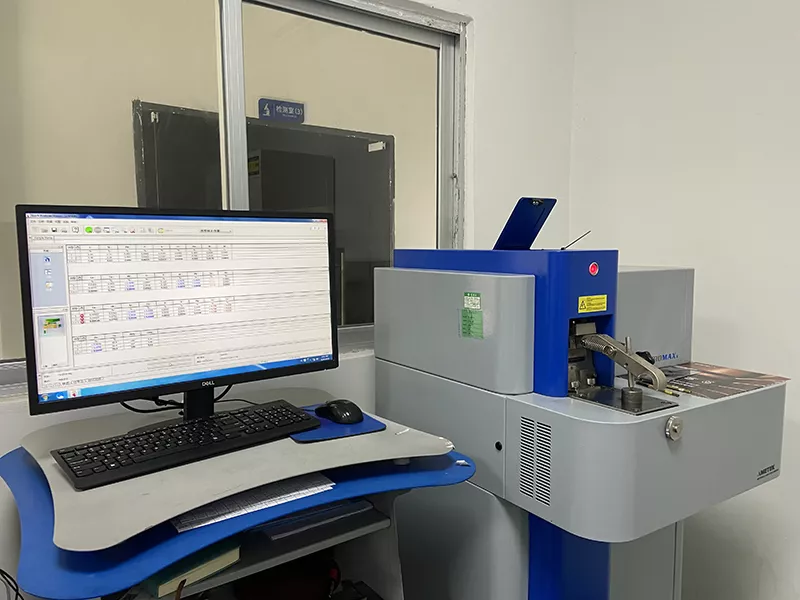

Performance Testing
Mechanical and other applicable performance tests can be arranged according to the alloy, temper, material standard and inspection requirements of the order.
Marine Aluminum Plate Price
Marine aluminum plate pricing depends on alloy, temper, dimensions, quantity, processing requirements, certification, packaging and delivery destination.
- Alloy and temper
- Thickness
- Width and length
- Order quantity
- Special cutting
- Inspection and certification
- Packaging
- Destination and freight
Request Current Marine Aluminum Plate Pricing
Send your alloy, temper, dimensions, quantity, certificate requirements and destination port. Haomei will review the specification and provide a quotation based on actual production capability and order requirements.

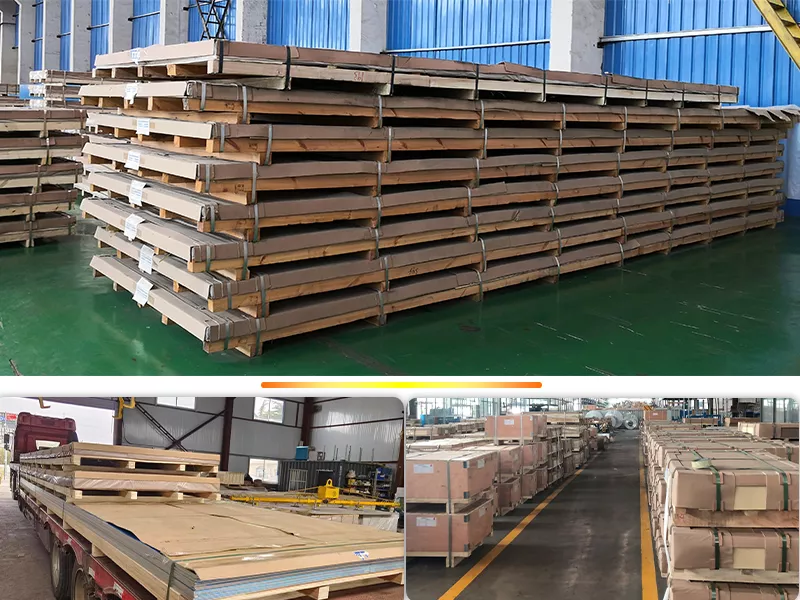

Request a QuoteMarine Aluminum Plate Packaging and Delivery
Surface Protection
Protective paper, film or other suitable surface protection can be used according to product and customer requirements.
Moisture Protection
Export packaging can be designed to reduce the risk of moisture exposure during transportation and storage.
Reinforced Packaging
Steel or reinforced strapping and suitable export supports can be selected according to cargo dimensions and weight.
Container Loading
Packing arrangements can be adapted to the loading plan, coil or plate dimensions and customer unloading requirements.
Marine Aluminum Sheet & Plate Manufacturer
Haomei Aluminum supplies marine aluminum sheet and plate directly for boat builders, fabricators, distributors and marine equipment projects. Material is produced and supplied according to the alloy, temper and dimensions required for each order.
Orders can be arranged by alloy, temper, thickness, width, length and surface condition. Standard sizes are available for routine requirements, while cut-to-size and cut-to-length options can be discussed for fabrication and project orders.
Marine Aluminum Supply
- Marine aluminum sheet and plate
- Multiple alloy and temper options
- Standard and custom dimensions
- Cut-to-size and cut-to-length service
- Protective export packaging
- Mill test and material documentation
- Inspection support when required
- Container and export shipment coordination
Frequently Asked Questions About Marine Aluminum Sheet and Plate
Is 5083 aluminum suitable for boat hulls?
Yes. 5083 aluminum is widely used for boat hulls, decks, bulkheads and other welded marine structures because of its high strength, good weldability and strong resistance to seawater corrosion.
What is the difference between 5083 H116 and H321 aluminum plate?
Both H116 and H321 are commonly specified for marine aluminum plate. H116 is commonly selected for marine applications requiring controlled corrosion performance, while H321 is a strain-hardened and stabilized temper. The appropriate temper should be selected according to the design, thickness, applicable standard and project requirements.
What aluminum alloy is commonly used for boat building?
5083 and 5086 are widely used for boat hulls and major welded marine structures. 5052 is commonly used for thinner sheet, fuel tanks, interior panels and formed components. 6061 and 6082 may be used for selected structural or machined components where their specific mechanical properties and corrosion-protection requirements are appropriate.
Can 5083 aluminum plate be used in seawater?
Yes. 5083 aluminum has strong resistance to seawater corrosion and is widely used in marine environments. Actual service performance also depends on material selection, fabrication quality, welding, galvanic corrosion control, maintenance and operating conditions.
What is 5086 H116 aluminum sheet used for?
5086 H116 aluminum is commonly used for marine structures, boatbuilding, ship components, offshore equipment and other welded applications where corrosion resistance and reliable performance are required.
Is 5086 H116 suitable for seawater environments?
Yes. 5086 H116 offers strong resistance to seawater and marine atmospheric corrosion, making it suitable for many marine engineering and welded fabrication applications.
Can marine aluminum sheet and plate be cut to custom sizes?
Yes. Custom thickness, width and length can be supplied where production capability permits. Cutting, protective film, edge treatment and export packaging can also be arranged according to order requirements and quantity.
Do you provide Mill Test Certificates for marine aluminum plate?
Yes. EN 10204 3.1 Mill Test Certificates can be provided for applicable orders. Depending on the order, documentation may include alloy, temper, heat number, chemical composition, mechanical properties and inspection results.
Can you provide DNV, ABS, BV or LR certification?
Certification availability depends on the alloy, temper, thickness, producing mill, order quantity and project requirements. Class certification should be confirmed against the actual material and applicable requirements before ordering.
What information is needed for a marine aluminum quotation?
Please provide the alloy, temper, thickness, width, length, quantity, surface requirements, applicable standard, certificate requirements, destination port and any cutting or packaging requirements. These details help Haomei Aluminum prepare an accurate quotation.
