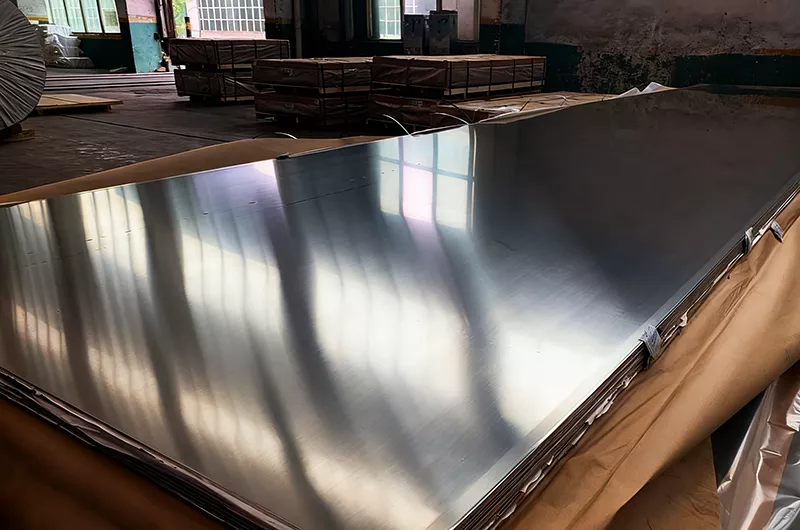

5086 h116 aluminum plate sheet
5086 H116 aluminum refers to 5086 aluminum alloy in the H116 temper. To achieve this temper, the 5086 aluminum alloy undergoes special processing to ensure it has a specific degree of intergranular corrosion and exfoliation corrosion resistance.
The processing for the 5086 H116 temper includes methods such as heat treatment and cold working, which endow the 5086 aluminum alloy with excellent corrosion resistance and mechanical properties. 5086 H116 aluminum plate ensures that the aluminum material exhibits good corrosion resistance in marine environments while maintaining high strength and hardness.
5086-H116 aluminum is a marine-grade non-heat-treatable alloy, known for its excellent corrosion resistance and good weldability. The "H116" temper indicates that the material has undergone special treatment to prevent exfoliation corrosion, making it an ideal choice for high-strength welded structures and applications exposed to marine or low-temperature environments.
- 5086: This represents the alloy series. The "5" indicates that this alloy series uses magnesium as the primary alloying element, giving it excellent corrosion resistance.
- H: Indicates the temper designation, which refers to a type of mechanical processing treatment.
- 116: Refers to a specific H temper, achieved through special surface treatment or processing to control and prevent exfoliation corrosion.
5086 h116 aluminum plate sheet specification
| Alloy | 5086 |
| Temper | O, H111, H112, H116, H321, H32, H34, H36 |
| Thickness | 0.8-200mm |
| Width | 500-2800mm |
| Length | 1000mm-12000mm (Can be cut) |
| Normal dimension | 1250*2500mm, 1500mm*3000mm. |
| Standard | QQ-A-250/7 5086 sheet and plate |
| Aluminum plate price | Factory price |
5086 h116 aluminum plate sheet chemical composition
| Chemical Composition Limits (WT %) | |
| Silicon | 0.4 |
| Iron | 0.5 |
| Copper | 0.1 |
| Manganese | 0.20-0.70 |
| Magnesium | 3.5-4.5 |
| Chromium | 0.05-0.25 |
| Zinc | 0.25 |
| Titanium | 0.15 |
| Others, each | 0.05 |
| Others, total | 0.15 |
| Balance, Aluminum | |
5086 h116 aluminum plate sheet mechanical properties
| Alloy Temper | Tensile Strength | Yield Strength | Elongation |
| KSI | KSI | % | |
| 5086 O | 44 | 14 | 16 |
| 5086 H32 | 47 | 28 | 12 |
| 5086 H112 | 35 | 14 | 14 |
| 5086 H116 | 40 | 28 | 10 |
5086 H116 Aluminum Plate Sheet Properties
- High strength and good formability

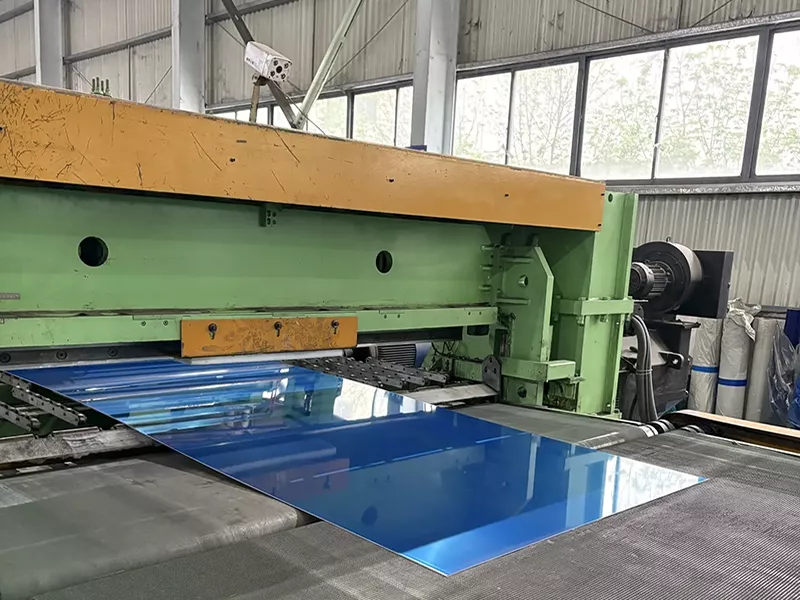

- Excellent seawater corrosion resistance
- Suitable for welding processing
- Outstanding toughness in low-temperature environments
Haomei 5086 H116 Aluminum Alloy Products
5086 H116 Aluminum Plate / Sheet
Flat rolled products, thicker pieces are usually called Plate, thinner ones are called Sheet.
Applications: Shipbuilding, hulls, superstructures, low-temperature equipment, pressure vessels.
Typical Thickness Range:
- Sheet: 0.032" – 0.250" (0.8 – 6.4 mm)
- Plate: 0.250" – 2.0"+ (6.4 – 50 mm+)
5086 H116 Aluminum Coil / Rolled Coil
Continuous rolled aluminum supplied in coils for further processing.
Applications: Stamping, bending, or feeding into extrusion processes.
5086 H116 Aluminum Extrusion / Profile
Aluminum formed into specific cross-sectional shapes by extrusion.
Applications: Marine profiles, structural frames, architectural components.
5086 H116 Aluminum Tube / Pipe
Hollow cylindrical products, available as seamless or welded.
Applications: Marine structural tubing, mechanical supports, low-temperature piping.
5086 H116 Aluminum Foil
Very thin aluminum sheet, usually less than 0.005" (0.127 mm).
Applications: Electronics, packaging, special industrial applications.
Haomei 5086 H116 Aluminum Alloy Products Stock List
5086-H116 Aluminum Plate Sheet Stock List
| Description Size/in | Temper | Thickness/in | Size/in | Form |
| 5086-H116 Aluminum Sheet 0.063" x 12" x 12" | H116 | 0.063" | 12" x 12" | Sheet |
| 5086-H116 Aluminum Sheet 0.063" x 12" x 24" | H116 | 0.063" | 12" x 24" | Sheet |
| 5086-H116 Aluminum Sheet 0.063" x 12" x 36" | H116 | 0.063" | 12" x 36" | Sheet |
| 5086-H116 Aluminum Sheet 0.063" x 12" x 48" | H116 | 0.063" | 12" x 48" | Sheet |
| 5086-H116 Aluminum Sheet 0.063" x 24" x 24" | H116 | 0.063" | 24" x 24" | Sheet |
| 5086-H116 Aluminum Sheet 0.080" x 12" x 12" | H116 | 0.080" | 12" x 12" | Sheet |
| 5086-H116 Aluminum Sheet 0.080" x 12" x 24" | H116 | 0.080" | 12" x 24" | Sheet |
| 5086-H116 Aluminum Sheet 0.080" x 12" x 36" | H116 | 0.080" | 12" x 36" | Sheet |
| 5086-H116 Aluminum Sheet 0.080" x 12" x 48" | H116 | 0.080" | 12" x 48" | Sheet |
| 5086-H116 Aluminum Sheet 0.080" x 24" x 24" | H116 | 0.080" | 24" x 24" | Sheet |
| 5086-H116 Aluminum Sheet 0.100" x 12" x 12" | H116 | 0.100" | 12" x 12" | Sheet |
| 5086-H116 Aluminum Sheet 0.100" x 12" x 24" | H116 | 0.100" | 12" x 24" | Sheet |
| 5086-H116 Aluminum Sheet 0.100" x 12" x 36" | H116 | 0.100" | 12" x 36" | Sheet |
| 5086-H116 Aluminum Sheet 0.100" x 12" x 48" | H116 | 0.100" | 12" x 48" | Sheet |
| 5086-H116 Aluminum Sheet 0.100" x 24" x 24" | H116 | 0.100" | 24" x 24" | Sheet |
| 5086-H116 Aluminum Sheet 0.125" x 12" x 12" | H116 | 0.125" | 12" x 12" | Sheet |
| 5086-H116 Aluminum Sheet 0.125" x 12" x 24" | H116 | 0.125" | 12" x 24" | Sheet |
| 5086-H116 Aluminum Sheet 0.125" x 12" x 36" | H116 | 0.125" | 12" x 36" | Sheet |
| 5086-H116 Aluminum Sheet 0.125" x 12" x 48" | H116 | 0.125" | 12" x 48" | Sheet |
| 5086-H116 Aluminum Sheet 0.125" x 24" x 24" | H116 | 0.125" | 24" x 24" | Sheet |
| 5086-H116 Aluminum Sheet 0.160" x 12" x 12" | H116 | 0.160" | 12" x 12" | Sheet |
| 5086-H116 Aluminum Sheet 0.160" x 12" x 24" | H116 | 0.160" | 12" x 24" | Sheet |
| 5086-H116 Aluminum Sheet 0.160" x 12" x 36" | H116 | 0.160" | 12" x 36" | Sheet |
| 5086-H116 Aluminum Sheet 0.160" x 12" x 48" | H116 | 0.160" | 12" x 48" | Sheet |
| 5086-H116 Aluminum Sheet 0.160" x 24" x 24" | H116 | 0.160" | 24" x 24" | Sheet |
| 5086-H116 Aluminum Sheet 0.190" x 12" x 12" | H116 | 0.190" | 12" x 12" | Sheet |
| 5086-H116 Aluminum Sheet 0.190" x 12" x 24" | H116 | 0.190" | 12" x 24" | Sheet |
| 5086-H116 Aluminum Sheet 0.190" x 12" x 36" | H116 | 0.190" | 12" x 36" | Sheet |
| 5086-H116 Aluminum Sheet 0.190" x 12" x 48" | H116 | 0.190" | 12" x 48" | Sheet |
| 5086-H116 Aluminum Sheet 0.190" x 24" x 24" | H116 | 0.190" | 24" x 24" | Sheet |
| 5086-H116 Aluminum Plate 0.249" x 24" x 36" | H116 | 0.249" | 24" x 36" | Plate |
| 5086-H116 Aluminum Plate 0.249" x 24" x 48" | H116 | 0.249" | 24" x 48" | Plate |
| 5086-H116 Aluminum Plate 0.249" x 36" x 36" | H116 | 0.249" | 36" x 36" | Plate |
| 5086-H116 Aluminum Plate 0.249" x 36" x 48" | H116 | 0.249" | 36" x 48" | Plate |
| 5086-H116 Aluminum Plate 0.249" x 48" x 144" | H116 | 0.249" | 48" x 144" | Plate |
| 5086-H116 Aluminum Plate 0.250" x 24" x 36" | H116 | 0.250" | 24" x 36" | Plate |
| 5086-H116 Aluminum Plate 0.250" x 24" x 48" | H116 | 0.250" | 24" x 48" | Plate |
| 5086-H116 Aluminum Plate 0.250" x 36" x 36" | H116 | 0.250" | 36" x 36" | Plate |
| 5086-H116 Aluminum Plate 0.250" x 36" x 48" | H116 | 0.250" | 36" x 48" | Plate |
| 5086-H116 Aluminum Plate 0.250" x 48" x 144" | H116 | 0.250" | 48" x 144" | Plate |
| 5086-H116 Aluminum Plate 0.313" x 24" x 36" | H116 | 0.313" | 24" x 36" | Plate |
| 5086-H116 Aluminum Plate 0.313" x 24" x 48" | H116 | 0.313" | 24" x 48" | Plate |
| 5086-H116 Aluminum Plate 0.313" x 36" x 36" | H116 | 0.313" | 36" x 36" | Plate |
| 5086-H116 Aluminum Plate 0.313" x 36" x 48" | H116 | 0.313" | 36" x 48" | Plate |
| 5086-H116 Aluminum Plate 0.313" x 48" x 144" | H116 | 0.313" | 48" x 144" | Plate |
| 5086-H116 Aluminum Plate 0.375" x 24" x 36" | H116 | 0.375" | 24" x 36" | Plate |
| 5086-H116 Aluminum Plate 0.375" x 24" x 48" | H116 | 0.375" | 24" x 48" | Plate |
| 5086-H116 Aluminum Plate 0.375" x 36" x 36" | H116 | 0.375" | 36" x 36" | Plate |
| 5086-H116 Aluminum Plate 0.375" x 36" x 48" | H116 | 0.375" | 36" x 48" | Plate |
| 5086-H116 Aluminum Plate 0.375" x 48" x 144" | H116 | 0.375" | 48" x 144" | Plate |
| 5086-H116 Aluminum Plate 0.500" x 24" x 36" | H116 | 0.500" | 24" x 36" | Plate |
| 5086-H116 Aluminum Plate 0.500" x 24" x 48" | H116 | 0.500" | 24" x 48" | Plate |
| 5086-H116 Aluminum Plate 0.500" x 36" x 36" | H116 | 0.500" | 36" x 36" | Plate |
| 5086-H116 Aluminum Plate 0.500" x 36" x 48" | H116 | 0.500" | 36" x 48" | Plate |
| 5086-H116 Aluminum Plate 0.500" x 48" x 144" | H116 | 0.500" | 48" x 144" | Plate |
| 5086-H116 Aluminum Plate 0.625" x 24" x 36" | H116 | 0.625" | 24" x 36" | Plate |
| 5086-H116 Aluminum Plate 0.625" x 24" x 48" | H116 | 0.625" | 24" x 48" | Plate |
| 5086-H116 Aluminum Plate 0.625" x 36" x 36" | H116 | 0.625" | 36" x 36" | Plate |
| 5086-H116 Aluminum Plate 0.625" x 36" x 48" | H116 | 0.625" | 36" x 48" | Plate |
| 5086-H116 Aluminum Plate 0.625" x 48" x 144" | H116 | 0.625" | 48" x 144" | Plate |
| 5086-H116 Aluminum Plate 0.750" x 24" x 36" | H116 | 0.750" | 24" x 36" | Plate |
| 5086-H116 Aluminum Plate 0.750" x 24" x 48" | H116 | 0.750" | 24" x 48" | Plate |
| 5086-H116 Aluminum Plate 0.750" x 36" x 36" | H116 | 0.750" | 36" x 36" | Plate |
| 5086-H116 Aluminum Plate 0.750" x 36" x 48" | H116 | 0.750" | 36" x 48" | Plate |
| 5086-H116 Aluminum Plate 0.750" x 48" x 144" | H116 | 0.750" | 48" x 144" | Plate |
| 5086-H116 Aluminum Plate 1.000" x 24" x 36" | H116 | 1.000" | 24" x 36" | Plate |
| 5086-H116 Aluminum Plate 1.000" x 24" x 48" | H116 | 1.000" | 24" x 48" | Plate |
| 5086-H116 Aluminum Plate 1.000" x 36" x 36" | H116 | 1.000" | 36" x 36" | Plate |
| 5086-H116 Aluminum Plate 1.000" x 36" x 48" | H116 | 1.000" | 36" x 48" | Plate |
| 5086-H116 Aluminum Plate 1.000" x 48" x 144" | H116 | 1.000" | 48" x 144" | Plate |
| 5086-H116 Aluminum Plate 1.250" x 60" x 240" | H116 | 1.250" | 60" x 240" | Plate |
| 5086-H116 Aluminum Plate 1.250" x 48" x 144" | H116 | 1.250" | 48" x 144" | Plate |
| 5086-H116 Aluminum Plate 1.500" x 60" x 240" | H116 | 1.500" | 60" x 240" | Plate |
| 5086-H116 Aluminum Plate 1.500" x 48" x 144" | H116 | 1.500" | 48" x 144" | Plate |
| 5086-H116 Aluminum Plate 2.000" x 60" x 240" | H116 | 2.000" | 60" x 240" | Plate |
| 5086-H116 Aluminum Plate 2.000" x 48" x 144" | H116 | 2.000" | 48" x 144" | Plate |
5086-H116 Aluminum Coil Stock List
| Description | Thickness(in) | Size(in) |
| 0.125" 5086 H116 Aluminum 48" x Coil | 0.125 | 48 x Coil |
| 0.125" 5086 H116 Aluminum 60" x Coil | 0.125 | 60 x Coil |
| 0.125" 5086 H116 Aluminum 72" x Coil | 0.125 | 72 x Coil |
| 0.125" 5086 H116 Aluminum 96" x Coil | 0.125 | 96 x Coil |
| 0.16" 5086 H116 Aluminum 60" x Coil | 0.16 | 60 x Coil |
| 0.16" 5086 H116 Aluminum 72" x Coil | 0.16 | 72 x Coil |
| 0.16" 5086 H116 Aluminum 96" x Coil | 0.16 | 96 x Coil |
| 0.19" 5086 H116 Aluminum 48" x Coil | 0.19 | 48 x Coil |
| 0.19" 5086 H116 Aluminum 60" x Coil | 0.19 | 60 x Coil |
| 0.19" 5086 H116 Aluminum 72" x Coil | 0.19 | 72 x Coil |
| 0.19" 5086 H116 Aluminum 84" x Coil | 0.19 | 84 x Coil |
| 0.19" 5086 H116 Aluminum 96" x Coil | 0.19 | 96 x Coil |
| 0.25" 5086 H116 Aluminum 48" x Coil | 0.25 | 48 x Coil |
| 0.25" 5086 H116 Aluminum 60" x Coil | 0.25 | 60 x Coil |
| 0.25" 5086 H116 Aluminum 72" x Coil | 0.25 | 72 x Coil |
| 0.25" 5086 H116 Aluminum 84" x Coil | 0.25 | 84 x Coil |
| 0.25" 5086 H116 Aluminum 96" x Coil | 0.25 | 96 x Coil |
| 0.313" 5086 H116 Aluminum 60" x Coil | 0.313 | 60 x Coil |
5086 H116 Aluminum Applications
Marine Applications
- Shipbuilding: Suitable for the construction of various types of ships, such as tankers, passenger ships, and cargo ships.
- Hull: Commonly used for the hull shell and frame structures, capable of resisting seawater corrosion.
- Superstructures: Applied in ship superstructures and decks, combining lightweight with corrosion resistance.
Other Industrial Applications
- Pressure Vessels: Suitable for containers used in low-temperature or high-pressure environments.
- Low-Temperature Equipment: Such as LNG tanks and refrigeration equipment, thanks to its excellent low-temperature toughness.
- Tower Structures: Used in communication towers, wind towers, and other lightweight structural components.
- Missile Components: Applied in aerospace and military industries for lightweight protective components.
- Protective Armor: Due to its high strength and light weight, it can be used for military protective armor materials.
Marine Applications
Shipbuilding
5086 H116 aluminum, with its excellent corrosion resistance and strength, is widely used in the construction of various vessels, including tankers, passenger ships, and cargo ships. It not only withstands seawater erosion but also maintains lightweight hull structures, thereby improving fuel efficiency and load capacity.
Hull
Used in hull shells and frame structures, 5086 H116 provides long-term corrosion resistance, ensuring that the hull remains stable and safe in marine environments.
Superstructures
Applied in ship superstructures and deck sections, it balances lightweight properties and corrosion resistance, while offering good weldability for the fabrication of complex structures.
Other Uses
Pressure Vessels
5086 H116 is suitable for manufacturing containers that need to withstand pressure, such as industrial storage tanks and low-temperature pressure vessels. Its high strength ensures long-term safety during service.
Low-Temperature Equipment
In low-temperature environments, such as LNG storage tanks, refrigeration equipment, and refrigerated transport vehicles, 5086 H116 maintains excellent toughness and corrosion resistance, minimizing the risk of cracking.
Tower Structures
Suitable for communication towers, wind power towers, and other lightweight structural components, reducing overall weight while providing sufficient strength and weather resistance.
Missile Components
In aerospace and military fields, 5086 H116 can be used for missile shells and structural parts, offering lightweight, corrosion resistance, and high strength to ensure reliability of key components under extreme conditions.
Protective Armor
Used in the manufacturing of lightweight protective armor materials, combining impact resistance with corrosion resistance, making military equipment safer and more reliable in harsh environments.
5086 H116 Aluminium Sheet Equivalent Grades
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4 | AG4MC | 3.3545 | A95086 | AlMg4 | 5086 | AlMg4Mn |
Questions related to 5086 h116 aluminum plate sheet
What is 5086 grade aluminium?
5086 grade aluminum is a high-strength, corrosion-resistant alloy commonly used in marine environments and structural applications.
What is the difference between 5086 and 6061 aluminum?
5086 aluminum is primarily used for its superior corrosion resistance and strength in marine environments, while 6061 aluminum offers a balance of strength, workability, and resistance to corrosion for structural and aerospace applications.
What is 5086 h111 material?
5086 H111 is a temper designation indicating the aluminum alloy has been partially annealed to achieve a lower strength and improved workability while maintaining some of its original strength and hardness.
5086-H116 Aluminum vs. 5086-H32 Aluminum
5086-H116 aluminum and 5086-H32 aluminum are variants of the same material. They have the same alloy composition and many physical properties, but their mechanical properties differ due to different processing methods.
Products you may be interested in
