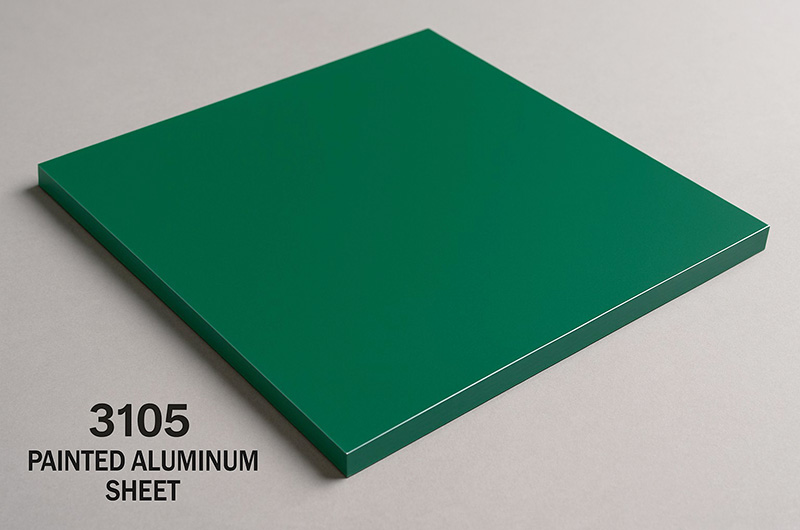

3105 painted aluminum sheet
3105 painted aluminum sheet is designed to provide a durable and wear-resistant coating while enhancing the flexibility for various forming and manufacturing applications. This high-quality pre-coated aluminum sheet offers excellent corrosion resistance, formability, and welding characteristics.
3105 painted aluminum sheet is a product with a surface coating treatment based on 3105 aluminum alloy, combining the inherent properties of the alloy with the advantages of the coating process. It is widely used in the fields of construction, household appliances, packaging, and more.
3105 painted aluminum sheet is an alloy composed of approximately 98% aluminum, with small amounts of manganese (0.3-0.8%), magnesium (0.2-0.8%), and trace amounts of silicon, iron, copper, and other elements to enhance strength while maintaining lightweight properties. It is not heat treatable, but can achieve strength through cold working (e.g., H14, H24 tempering).
3105 painted aluminum sheet is a pre-coated aluminum alloy product that combines the high purity and formability of the 3105 alloy with a durable color surface finish. This product features excellent corrosion resistance, superb formability, and good mechanical strength, while the coating system provides wear resistance, weatherability, and aesthetic diversity. The product is available in various thicknesses (typically 0.5 mm to 2 mm) and standard sheet or coil sizes, offering various colors (including custom RAL color options) and tempers (typically H14 and H24), suitable for a range of applications from building cladding and wall panels to signage, trailers, and roofing.
Haomei 3105 Painted Aluminum Sheet Supply and Specifications
| Item | Details |
| Alloy Grade | 3105 |
| Coating Type | Single-sided Coating / Double-sided Coating |
| Temper (Heat Treatment) | O (Annealed), H12 (1/4 Hard), H14 (1/2 Hard), H24, H26 |
| Mechanical properties can be customized according to specific forming requirements | |
| Standard Thickness Range | 0.020 inches (0.5 mm) to 0.080 inches (2.0 mm) |
| Common Thickness Range | 0.04 inches to 0.063 inches |
| Sheet Size | Standard Maximum Size: 48 inches × 120 inches |
| Optional Maximum Size: 48 inches × 144 inches | |
| Coil Width | Maximum 1250 mm |
| Color Options | Super Bright White, Gloss Black, Chevron Blue, Red, Yellow, |
| Custom colors for branding purposes | |
| Surface Type | Wear-resistant coating, durable |
| Finish Options: Gloss, Matte, Double-sided Finish | |
| Custom Processing | Laser cutting, water jet cutting, plasma cutting services available to ensure precise dimensions |
| Thickness Tolerance | ±0.02 mm, in accordance with ASTM B209 standards |
| Size Tolerance | In accordance with coil coating standards |
| Standard Basis | ASTM B209 |
| Bulk Pricing | Bulk pricing available, with tiered discounts for orders of 25 pieces or more |
The 3105 painted aluminum sheet combines the inherent ductility and corrosion resistance of the alloy with the protective and aesthetic features of modern coil coating technology. It is a versatile choice for durable, colored metal applications in fields such as architecture, transportation, and signage.
3105 Painted Aluminum Sheet Features
a. Durability: Provides a Strong, Wear-Resistant Coating
The 3105 painted aluminum sheet features a durable coating that effectively resists external environmental factors, enhancing the sheet's wear resistance. This coating is typically made from high-quality polyester or fluorocarbon materials, ensuring a stable appearance under various climatic conditions and providing long-term protection. The coating not only increases surface hardness but also prevents oxidation and UV damage, extending its service life. Whether in high temperatures, humid, or harsh climates, the 3105 painted aluminum sheet maintains stable performance.
b. Flexibility: Enhances Sheet Flexibility, Making It Suitable for Various Forming and Manufacturing Processes
The 3105 painted aluminum sheet exhibits excellent flexibility, making it highly adaptable to different manufacturing processes. Unlike other coated aluminum sheets, the coating on 3105 does not affect the sheet's ductility and workability, allowing for easy bending, stamping, and stretching. Whether used in construction, automotive manufacturing, or the production of various light industrial products, this flexibility allows the 3105 painted aluminum sheet to meet a wide range of shape requirements, ensuring its suitability for different application scenarios.
c. Corrosion Resistance: Exceptional Corrosion Resistance that Extends the Sheet's Service Life
The 3105 painted aluminum sheet boasts outstanding corrosion resistance, making it particularly suitable for use in damp or salt-laden environments. The coating provides an extra layer of protection, effectively resisting acid rain, sea breeze, and other corrosive substances. Even in high humidity or marine environments, the 3105 coated aluminum sheet maintains its structural and aesthetic integrity. Its corrosion resistance makes it widely used in building facades, transportation vehicles, and other outdoor facilities, reducing the need for maintenance and replacement.
d. Formability: High Formability, Easy to Process into Different Shapes and Structures
The 3105 painted aluminum sheet has high formability, allowing it to be easily transformed into various shapes and structures through common processing methods such as stretching, bending, and punching. Its excellent forming characteristics ensure that the aluminum sheet does not suffer from excessive deformation or cracking during processing, making it ideal for creating complex shapes or specific designs. This makes the 3105 painted aluminum sheet versatile for use in construction, home appliances, automotive, and other industries, easily combining with other materials for composite applications.
e. Weldability: Suitable for Most Manufacturing Technologies; However, Welding or Flame Cutting is Not Recommended Without Proper Protection Due to the Coating
The 3105 painted aluminum sheet is generally suitable for most manufacturing techniques, such as cold stamping and laser cutting. However, due to the presence of its surface coating, welding or flame cutting may damage the coating, reducing adhesion or causing surface damage. Therefore, when welding or flame cutting, it is recommended to take appropriate protective measures, such as removing the coating or using protective welding processes, to prevent damage to the coating. Without proper protection, welding may lead to undesirable heat-affected zones, affecting the overall structure and performance of the aluminum sheet.
Ensure proper protection during welding or flame cutting to avoid damage to the coating.
Chemical compositon of 3105 painted aluminum sheet
| Grade | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Al |
| 3105 | 0.6 | 0.7 | 0.3 | 0.30-0.8 | 0.20-0.8 | 0.2 | - | 0.4 | remains |
3105 Painted Aluminum Sheet Material Properties
3105 Painted Aluminum Sheet Base Material Properties
- Corrosion Resistance: 3105 is an Al-Mn series alloy, with 0.3% copper added. A stable oxide film forms on the surface, providing excellent corrosion resistance in atmospheric and humid conditions.
- Electrical Conductivity: With 98% aluminum content, 3105 has an electrical conductivity of approximately 41%, making it suitable for applications requiring conductivity or electromagnetic shielding.
- Workability: High plasticity in the annealed state, supports stamping, bending, and other cold working, allowing for complex shapes.
- Strength: Medium strength, suitable for light structures and low-load components, such as interior frames and decorative parts.
- Formability: High flexibility, suitable for bending, rolling, and deep drawing, especially in the annealed (O temper) or half-hard states.
- Weldability: Compatible with all commercial welding technologies, but electric arc welding is recommended for best results.
3105 Painted Aluminum Sheet Coating Process
- Surface Treatment: Supports fluorocarbon, polyester, and other coating sprays, enhancing weather resistance and aesthetics, suitable for long-term outdoor use.
- Protective Performance: The coating effectively blocks corrosive agents, extending the lifespan of the base material, making it suitable for harsh environments like chemical equipment and coastal buildings.
Pre-coating (coil coating) is a continuous automated process where aluminum coils are cleaned, chemically pre-treated, primed, then coated on one or both sides and finally cured in a furnace. The coating system typically includes:
- Primer Layer: Ensures adhesion and corrosion resistance.
- Topcoat Layer: Polyester (PE) or fluoropolymer (PVDF), providing UV resistance, wear resistance, and color stability.
- Back Coat Layer: A thinner coating on the back for enhanced corrosion protection.
The total coating thickness ranges from 18 µm to 28 µm, with a chromate conversion layer (about 5 – 8 µm) under the primer to enhance adhesion.

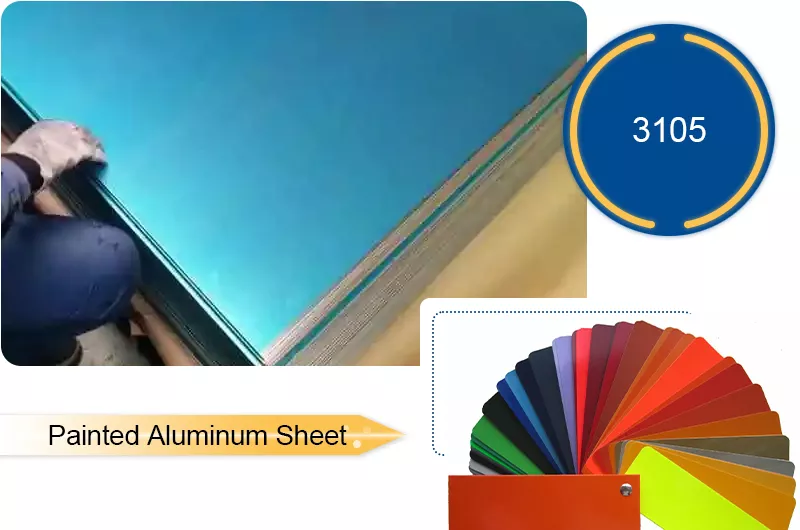

3105 Painted Aluminum Sheet Surface Treatment and Color
3105 painted sheet material is available in standard colors such as white, black, red, blue, yellow, and herringbone patterns, and offers custom RAL and special surface treatments. The painted surface is semi-gloss to smooth, with pencil hardness typically greater than 2H, good flexibility, and can be bent 1T/2T without cracking. Gloss level ranges from matte (10%) to high gloss (90%) according to the EN ISO-2813 standard.
3105 Painted Aluminum Sheet Physical and Mechanical Properties
In common H12 or H14 temper, the minimum tensile strength of 3105 painted sheets is 19ksi, yield strength is 15ksi, and elongation is between 1% and 3%, depending on thickness. The alloy density is approximately 2.70 g/cm³, with excellent conductivity (over 30% IACS) and weldability similar to pure aluminum. As a non-heat treatable alloy, its strength is obtained through cold working rather than solid solution treatment.
3105 Painted Aluminum Sheet Processing Performance and Formability
The painted sheet retains the high formability of the base alloy, suitable for bending, stamping, rolling, and deep drawing. It can be welded (with appropriate surface protection) and also cut by shearing, laser, or plasma cutting. However, when machining, it is recommended to use oil-based lubricants to avoid damaging the surface. The minimum bend radius depends on the temper and coating thickness, but generally allows for sharp bends in architectural profiles and complex shapes.
Colored 3105 painted aluminum sheet Applications
3105 aluminum coated metal sheets are made from high-quality aluminum materials and offer reliable performance for years. Typical applications include:
| Application | Description |
| Trailer Interiors | 3105 painted aluminum sheet is commonly used in trailer interiors due to its durability, lightweight nature, and ease of maintenance. The painted surface provides a smooth and clean finish that is easy to wipe down and resistant to stains. The corrosion resistance of the sheet ensures that it can withstand the humid or high-moisture conditions often present inside trailers, making it an ideal choice for long-lasting interior paneling. Additionally, its flexibility in forming allows it to be used in a variety of interior designs, from walls to ceiling panels, ensuring both functionality and aesthetics. |
| Race Car Bodies | 3105 painted aluminum sheet is highly favored in race car bodies for its combination of strength, lightweight properties, and excellent finish. The sheet's ability to resist corrosion from various weather conditions makes it a perfect choice for vehicles that endure intense environments on and off the track. The smooth, glossy finish of the painted surface not only adds a sleek, professional look to race cars but also reduces drag, contributing to better performance. Additionally, its high formability ensures that the aluminum sheet can be shaped into the complex contours of race car bodies without compromising its structural integrity. |
| Mobile Homes | 3105 painted aluminum sheet is an excellent material for mobile homes due to its resistance to corrosion and long-lasting finish. The painted surface provides an aesthetically pleasing exterior while offering protection from the elements, ensuring that mobile homes maintain their appearance and durability over time. This material is particularly suitable for use in areas where the home is exposed to harsh weather conditions, such as coastal regions with high humidity and salt exposure. The lightweight nature of the aluminum also contributes to the overall energy efficiency of mobile homes, providing insulation benefits while minimizing structural weight. |
| Residential Gutters and Downspouts | 3105 painted aluminum sheet is widely used for residential gutters and downspouts because of its resistance to corrosion, particularly in wet and harsh climates. The durable paint coating not only enhances the aesthetic appeal of these components but also ensures that they are protected from the effects of rain, snow, and environmental wear. The sheet's high formability allows for easy fabrication into gutter profiles, ensuring a perfect fit for various residential roofing designs. Moreover, its lightweight yet strong composition makes installation easier while maintaining the long-term durability and performance of the gutter system. |
| Signage Blanks | 3105 painted aluminum sheet is a top choice for signage blanks because of its combination of strength, durability, and aesthetic appeal. The painted surface provides a smooth and vibrant base that ensures the longevity of both the material and the graphics applied to it. Its resistance to fading from UV exposure and its ability to withstand harsh weather conditions make it perfect for outdoor signage. Whether used for highway signs, business advertisements, or directional markers, 3105 painted aluminum sheet offers an excellent substrate that holds up well to wear and tear, providing businesses and municipalities with signage that remains attractive and functional for years. |
| Wall Panels | 3105 painted aluminum sheet is highly suitable for both interior and exterior wall cladding applications due to its lightweight, durable, and corrosion-resistant properties. Its smooth, painted finish provides an aesthetically pleasing look that complements modern architectural designs, making it a popular choice for commercial, industrial, and residential buildings. The sheet’s resistance to weathering, including UV rays and moisture, ensures its longevity as an exterior cladding material, while its ease of cleaning and maintenance makes it ideal for interior wall applications as well. Additionally, the ability to fabricate the sheet into different shapes and sizes allows for a wide range of design possibilities, adding both functionality and beauty to the walls of any building. |
Trailer Interiors
- Description: 3105 painted aluminum sheet is used for lining trailer interiors.
- Advantages: Provides a clean, durable surface that is wear-resistant; lightweight and corrosion-resistant, ensuring a longer lifespan and ease of maintenance.
Residential Gutters and Downspouts
- Description: Material used for manufacturing gutters and downspouts.
- Advantages: Rust-resistant, ensuring durability and longevity; effectively manages rainwater flow, reducing maintenance needs and preventing water damage.
Bottle Caps and Closures
- Description: 3105 painted aluminum sheet is used for producing bottle caps and closures.
- Advantages: Enhances the appearance of bottles while providing a protective layer against environmental factors; helps maintain product freshness and integrity.
Signage Blanks
- Description: Used for creating durable and attractive signs and road signs.
- Advantages: Provides high-quality surface finishes that withstand outdoor conditions; ensures durability and visibility, suitable for long-term use.
Wall Panels
- Description: 3105 is used for wall cladding both indoors and outdoors.
- Advantages: Provides a modern appearance while withstanding environmental challenges; ideal for enhancing the aesthetics and functionality of walls in various settings.
Race Car Bodies
- Description: Building material for race car bodies.
- Advantages: 3105 is lightweight and durable, improving performance by reducing the overall weight of the vehicle; withstands high-speed stresses, enhancing speed and safety.
Haomei 3105 painted aluminum sheet stock list
| Description | Color | Thickness | Width | Length | Temper |
| 0.04" 3105 Painted Aluminum Sheet 48 X 96 | Yellow | 0.04" | 48" | 96" | H14 |
| 0.04" 3105 Painted Aluminum Sheet 12 X 48 | Chevron Blue | 0.04" | 12" | 48" | H14 |
| 0.04" 3105 Painted Aluminum Sheet 12 X 96 | Red Two Side | 0.04" | 12" | 96" | H14 |
| 0.04" 3105 Painted Aluminum Sheet 12 X 120 | White Two Side | 0.04" | 12" | 120" | H14 |
| 0.04" 3105 Painted Aluminum Sheet 24 X 48 | Super Bright White | 0.04" | 24" | 48" | H14 |
| 0.04" 3105 Painted Aluminum Sheet 24 X 96 | Chevron Blue Two Side | 0.04" | 24" | 96" | H14 |
| 0.04" 3105 Painted Aluminum Sheet 24 X 120 | Gloss Black Two Side | 0.04" | 24" | 120" | H14 |
| 0.04" 3105 Painted Aluminum Sheet 48 X 96 | Red | 0.04" | 48" | 96" | H14 |
| 0.04" 3105 Painted Aluminum Sheet 48 X 120 | Gloss Black | 0.04" | 48" | 120" | H14 |
| 0.05" 3105 Painted Aluminum Sheet 12 X 48 | Chevron Blue | 0.05" | 12" | 48" | H14 |
| 0.05" 3105 Painted Aluminum Sheet 12 X 96 | Red Two Side | 0.05" | 12" | 96" | H14 |
| 0.05" 3105 Painted Aluminum Sheet 12 X 120 | White Two Side | 0.05" | 12" | 120" | H14 |
| 0.05" 3105 Painted Aluminum Sheet 24 X 48 | Super Bright White | 0.05" | 24" | 48" | H14 |
| 0.05" 3105 Painted Aluminum Sheet 24 X 96 | Chevron Blue Two Side | 0.05" | 24" | 96" | H14 |
| 0.05" 3105 Painted Aluminum Sheet 24 X 120 | Gloss Black Two Side | 0.05" | 24" | 120" | H14 |
| 0.05" 3105 Painted Aluminum Sheet 48 X 96 | Red | 0.05" | 48" | 96" | H14 |
| 0.05" 3105 Painted Aluminum Sheet 48 X 120 | Gloss Black | 0.05" | 48" | 120" | H14 |
| 0.05" 3105 Painted Aluminum Sheet 48 X 96 | Yellow | 0.05" | 48" | 96" | H14 |
| 0.05" 3105 Painted Aluminum Sheet 12 X 120 | Red Two Side | 0.05" | 12" | 120" | H14 |
| 0.05" 3105 Painted Aluminum Sheet 24 X 48 | Red Two Side | 0.05" | 24" | 48" | H14 |
| 0.05" 3105 Painted Aluminum Sheet 24 X 96 | Red Two Side | 0.05" | 24" | 96" | H14 |
| 0.05" 3105 Painted Aluminum Sheet 24 X 120 | Red Two Side | 0.05" | 24" | 120" | H14 |
| 0.063" 3105 Painted Aluminum Sheet 48 X 96 | Yellow | 0.063" | 48" | 96" | H14 |
| 0.063" 3105 Painted Aluminum Sheet 12 X 48 | Chevron Blue | 0.063" | 12" | 48" | H14 |
| 0.063" 3105 Painted Aluminum Sheet 12 X 96 | Red Two Side | 0.063" | 12" | 96" | H14 |
| 0.063" 3105 Painted Aluminum Sheet 12 X 120 | White Two Side | 0.063" | 12" | 120" | H14 |
| 0.063" 3105 Painted Aluminum Sheet 24 X 48 | Super Bright White | 0.063" | 24" | 48" | H14 |
| 0.063" 3105 Painted Aluminum Sheet 24 X 96 | Chevron Blue Two Side | 0.063" | 24" | 96" | H14 |
| 0.063" 3105 Painted Aluminum Sheet 24 X 120 | Gloss Black Two Side | 0.063" | 24" | 120" | H14 |
| 0.063" 3105 Painted Aluminum Sheet 48 X 96 | Red | 0.063" | 48" | 96" | H14 |
| 0.063" 3105 Painted Aluminum Sheet 48 X 120 | Gloss Black | 0.063" | 48" | 120" | H14 |
Questions about 3105 painted aluminum sheet
What is 3105 aluminum used for?
3105 aluminum is commonly used for residential siding, mobile homes, rain-carrying goods, and other applications where moderate strength and corrosion resistance are required.
What is the difference between 3003 and 3105?
The difference between 3003 and 3105 is that 3105 has slightly higher strength and improved formability compared to 3003, with both being used in similar applications.
What is 3105?
3105 is an aluminum alloy primarily used for products requiring good formability, corrosion resistance, and strength.
