6082 Aluminum Plate Sheet

6082 aluminum plate belongs to the 6-series (Al-Mg-Si) alloy, which is an aluminum alloy plate that can be heat-treated for strengthening. This series of alloys has medium strength, good welding performance, and excellent corrosion resistance, making it widely used in transportation, structural engineering, and other industries.

6082 aluminum alloy is a medium-strength alloy from the 6000 series, known for its excellent corrosion resistance and high strength. It is commonly referred to as a structural alloy and is widely used in various industries.

Standards and Specifications

• Standards: ASTM B209, ASME SB209, EN 573-3 (Composition), EN 485-2 (Mechanical Properties).
• Comparable Alloys: Similar to 6061 (US), but with higher Si content and higher strength.

Haomei Aluminum is a large modernized aluminum processing enterprise integrating aluminum coils, aluminum plates, aluminum circles, aluminum strips, aluminum ingots, aluminum foil processing, manufacturing, and research. The aluminum products produced comply with ASTM B209, ASME SB209 standards and are available in large quantities in stock. Orders are welcome.

HC 6082 Aluminum Plate Inventory

6082 Aluminum Plate Informations

6082 Aluminum Plate Typical Temper

• 6082 T4 Aluminum Plate
• 6082 T6 Aluminum Plate
• 6082 T651 Aluminum Plate
• 6082 O Aluminum Plate

6082 Aluminum Plate Available Forms and Sizes

• Thickness: 6 mm to 150 mm (varies by supplier).
• Width/Length: Customizable; standard sheet width up to 2, 500 mm.
• Surface Treatment: Rolled finish, anodized, powder coating, or brushed.

6082 Aluminum Plate Sheet Feature

• Strength: The highest strength in the 6000 series alloys.
• Workability: Good machinability, especially in T6 and T651 temper. Solution heat treatment and artificial aging (T6) are used to achieve optimal strength.
• Weldability: 6082 has good weldability; however, the strength of the welded area may be reduced.
• Corrosion Resistance: Excellent atmospheric corrosion resistance; suitable for marine and industrial environments. Anodizing or coating can enhance durability in harsh conditions.
• Formability: Medium; annealed (O temper) can be formed into complex shapes.

6082 Aluminum Plate Thermal Treatment

6082 Aluminum plate is a hot -capable aluminum alloy plate material. This aluminum material is light, easy to form, and high conductivity, and can be strengthened by heat treatment.

6082 Aluminum Plate Surface Type

• Bright
• Polished
• Hair line
• Brush
• Sand blast
• Embossed
• Color coated
• Anodized

Aluminium UNS A96082 Hot Rolled Plate Equivalent Grades

Aluminium 6082 Plate Welding

6082 aluminum plate has high weldability. 6082 has very good weldability but strength is lowered in the weld zone. When welded it itself alloy 4043 wire is recommended. If welding 6082 to 7005, then the wire used should be alloy 5356.

6082 Aluminium Sheet Chemical Compositions

6082 Aluminium Sheet Mechanical properties at room temperature

6082 Aluminium Sheet Reference data for some physical properties

• Strength: 6082 aluminum plate has medium strength, able to meet various structural requirements, suitable for high-load and complex structure applications.
• Hardness: After heat treatment, it has good hardness and strength.
• Corrosion Resistance: Due to the presence of magnesium and silicon, 6082 aluminum plate has good corrosion resistance in humid or marine environments.
• Welding Performance: Good welding performance, making it suitable for industrial fields that require welding processing.

6082 Aluminium Plate Sheet Applicaitons

6082 aluminum plates for milk mixer, truss, crane, ore bucket, beer barrel, bridge, high -stress application and transportation application.

• Construction: Due to its high structural strength, 6082 aluminum plate is commonly used in construction for trusses, scaffolding, building frames, cranes, and bridges. Its strength allows it to bear heavy loads and resist deformation, making it ideal for structural applications, especially where weight support or external pressure is required. Additionally, 6082 aluminum plate's corrosion resistance ensures it has a long service life in outdoor environments, resisting weathering, corrosion, and other environmental factors.
• Transportation: 6082 aluminum plate is widely used in the transportation industry, particularly in the manufacturing of vehicle bodies, railcars, and railway components. It not only provides sufficient strength to bear the heavy loads of transportation vehicles but also helps improve fuel efficiency or reduce energy consumption by lightening the weight. Moreover, 6082 aluminum plate’s corrosion resistance makes it particularly suitable for marine structures such as hull components and offshore platform structures, effectively resisting corrosion from seawater.
• Marine: 6082 aluminum plate excels in marine applications, especially in shipbuilding. With its excellent corrosion resistance and high strength, it is widely used for manufacturing ship components such as hulls, decks, and cabins. This gives 6082 aluminum plate a long service life in marine environments, effectively resisting the corrosion of saltwater and humid conditions while maintaining strong structural performance.
• Industrial: In the industrial sector, 6082 aluminum plate is commonly used to produce various mechanical parts, hydraulic systems, and pressure vessels. Its high strength and good machinability make it highly suitable for use in complex industrial environments, especially in equipment that needs to withstand high pressures or extreme working conditions. Additionally, 6082 aluminum plate’s good weldability and formability make it convenient for deep processing and customization in industrial manufacturing.
• Aerospace: While 6082 aluminum plate is not used for critical aerospace components, it still has applications in the aerospace industry. It is typically used for non-critical structural parts such as fuselage frames, cabin interiors, and non-load-bearing components. These parts require high strength and corrosion resistance to ensure the stability of the aircraft in complex flight environments, while also helping to reduce weight and improve flight efficiency.
• General Engineering: 6082 aluminum plate has widespread applications in general engineering, particularly in various structural and engineering applications that require high strength and corrosion resistance. Due to its excellent mechanical properties and good resistance to environmental corrosion, 6082 aluminum plate is widely used in the construction of buildings, bridges, transportation infrastructure, and other public works. It provides strong structures while extending service life and reducing maintenance costs.

6082 common application examples of aluminum plate

6082 Aluminum vs Other Alloys

Compared to 5083 (5xxx): 6082 aluminum offers better machinability and strength than 5083 aluminum. While 5083 aluminum has excellent corrosion resistance, 6082 aluminum is more convenient for machining, especially in precision machining and forming. Additionally, 6082 aluminum has higher strength than 5083, which makes it advantageous in applications that require high strength and ease of machining. However, 6082 aluminum’s corrosion resistance is slightly lower than 5083, particularly in prolonged exposure to extreme environments, where 5083 might perform better.

Compared to 7075 (7xxx): 6082 aluminum performs better than 7075 aluminum in terms of weldability and corrosion resistance. Although 7075 aluminum has very high strength and is ideal for applications requiring high-strength structures, such as in aerospace, it has relatively poor weldability and weak corrosion resistance. In contrast, 6082 aluminum has clear advantages in these areas. It is not only easier to weld but also has better corrosion resistance in humid or salt-laden environments, making it suitable for applications exposed to natural conditions over long periods. However, 6082 aluminum’s strength is lower than 7075, making it less suitable for structural applications requiring extremely high strength.

Limitations of 6082 Aluminum

Not suitable for high-stress aerospace applications (use 7075 instead).

Requires proper heat treatment to avoid stress corrosion cracking.

Manufacturing Tips

Welding: Use 4043/5356 filler wire; post-weld aging treatment is recommended.

Machining: High-speed steel (HSS) or carbide tools with coolant.

Storage: Keep dry to prevent oxidation; avoid contact with dissimilar metals.

6082 Aluminum plate offers a versatile solution for applications that require strength, formability, and corrosion resistance. Its popularity in Europe and compatibility with standard manufacturing techniques make it an ideal choice for the construction and transportation industries.

6082 Aluminum is a versatile alloy that combines strength, corrosion resistance, and machinability, making it the preferred choice for structural applications in various industries.

6082 Aluminum Plate Sheet FAQ

What is aluminium grade 6082?

Aluminum 6082 is a medium -intensity alloy with excellent corrosion resistance. It has the highest intensity of 6000 series alloys (6061, 6063, and 6082), and is sometimes called structural alloy. In the form of board, 6082 is the most commonly used alloy processing.

Which is better 6061 or 6082?

• Power: 6082 is usually stronger than 6061.
• Processability: 6061 is more suitable for processing.
• Corrosion resistance: Both have good corrosion resistance, but 6082 better.
• Application: Usually use medium -intensity and good processability combinations, while 6082 is the first choice for higher intensity applications, usually 6061.

What is the differentce between aluminium 6060 and 6082?

Aluminum 6060 is a medium-intensity alloy and is usually used for architectural applications. Compared with 6063, its intensity is slightly lower, but it has better corrosion resistance.

• Power: 6082's strength is higher than 6060.
• Processability: 6060 is better than 6082.
• Application: 6060 is used in architectural applications due to its good surface effect, and 6082 is used for structural applications.

What is the differentce between 7075 and 6082 aluminum?

• Power: The strength of 7075 is significantly higher than 6082.
• Corrosion resistance: 6082 is better corrosive compared to 7075.
• Weldability: Compared with 7075, 6082 is easier to weld, which is easier to break.
• Application: 7075 is used in high pressure applications such as aircraft and military equipment, and 6082 is used in more critical structures and marine applications with corrosion resistance.

6082 Aluminum Supplied Forms

• 6082 Aluminum Sheet
• 6082 Aluminum Plate
• 6082 Aluminum Extrusion
• 6082 Aluminum Tube
• 6082 Aluminum Bar

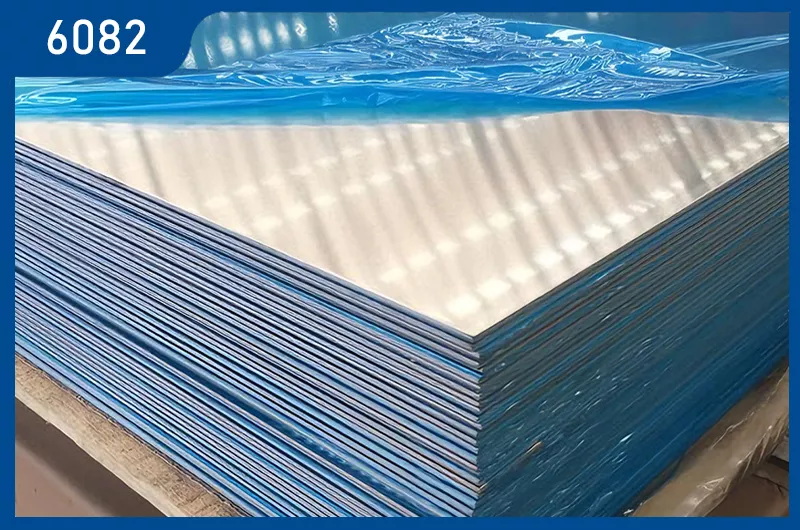

It is recommended to apply a layer of plastic coating on one or two sides of all 6082 aluminum plates to help protect the surface during transportation.
