Corrugated aluminum wall panels are a type of metal material widely used for interior and exterior wall decoration in buildings. They feature fire resistance, moisture resistance, and durability, and are commonly applied in airports, shopping malls, office buildings, and other places.
Corrugated aluminum wall panels are architectural decorative materials made of aluminum alloy as the base material, with wave-shaped patterns on the surface. They combine functionality with aesthetic value.
Corrugated Aluminum Wall Panels Specifications and Parameters
- Material and Performance: Corrugated aluminum wall panels are usually made of aluminum alloys (such as 5052, 3003, etc.). The surface can be customized to mirror finish, brushed, or color-coated. They are characterized by corrosion resistance, deformation resistance, and easy cleaning.
- Installation Method: Supports horizontal installation and hidden fastener methods, requiring fixation with steel structural framework. A gap of 8–10 mm should be left between panels, which can be filled with rubber strips to enhance sealing.
| Parameter | Common Specifications | Special Specifications | Unit |
| Length | 6'-22' | Up to 52' | Feet |
| Width | 2'8"-3'10" | Up to 4'0" | Feet |
| Thickness | 0.024"-0.080" | Up to 0.125" | Inches |
| Corrugation Height | 1/2"-7/8" | 1"-1-1/4" | Inches |
| Corrugation Pitch | 2.67"-4.2" | 2.19"-3.42" | Inches |
Corrugated Aluminum Wall Panels Length Specifications
The length specifications of corrugated aluminum wall panels are usually determined by production processes, transportation limitations, and building requirements.
Standard Length Range
The standard length of corrugated aluminum wall panels is usually between 6 feet (72 inches) and 22 feet (264 inches). This length range can meet the needs of most building projects while also facilitating transportation and installation.
Common Length Specifications
- 6'0" (72 inches) Corrugated Aluminum Wall Panels
- 8'0" (96 inches) Corrugated Aluminum Wall Panels
- 10'0" (120 inches) Corrugated Aluminum Wall Panels
- 12'0" (144 inches) Corrugated Aluminum Wall Panels
- 16'0" (192 inches) Corrugated Aluminum Wall Panels
- 20'0" (240 inches) Corrugated Aluminum Wall Panels
- 22'0" (264 inches) Corrugated Aluminum Wall Panels
Special Custom Length
For some special projects, corrugated aluminum wall panels can be customized to longer lengths, up to 52'0" (624 inches). Such extra-long specifications are suitable for large building projects or special design needs, but transportation and installation feasibility must be considered.
Corrugated Aluminum Wall Panels Width Specifications
The width specification of corrugated aluminum wall panels refers to their overall width, which usually includes the concepts of effective coverage width and total width. Effective coverage width refers to the actual width covered after installation, while total width includes the edge overlapping parts.
Standard Width Range
The standard width of corrugated aluminum wall panels is usually between 2'8" (32 inches) and 3'10" (46 inches). The specific width depends on the corrugation shape and design.
Common Width Specifications
- 2'8" (32 inches) Corrugated Aluminum Wall Panels
- 2'10-5/8" (34.625 inches) Corrugated Aluminum Wall Panels
- 3'3" (39 inches) Corrugated Aluminum Wall Panels
- 3'3-3/4" (40.75 inches) Corrugated Aluminum Wall Panels
- 3'8-1/2" (44.5 inches) Corrugated Aluminum Wall Panels
Effective Coverage Width
The effective coverage width of corrugated aluminum wall panels varies depending on the application scenario:
- For roofing applications, usually overlapping 2 corrugations, the effective coverage width is about 21.33 inches.
- For wall applications, usually overlapping 1 corrugation, the effective coverage width is about 24 inches.
Corrugated Aluminum Wall Panels Thickness Specifications
The thickness specification of corrugated aluminum wall panels refers to the thickness of the base material, usually expressed in inches or millimeters. Thickness directly affects the strength, durability, and weight of the panels.
Standard Thickness Range
The standard thickness of corrugated aluminum wall panels is usually between 0.024 inches (0.61mm) and 0.080 inches (2.03mm). This range can meet the strength requirements of different building needs.
Common Thickness Specifications
- 0.024 inches (0.61mm) Corrugated Aluminum Wall Panels
- 0.032 inches (0.81mm) Corrugated Aluminum Wall Panels
- 0.040 inches (1.02mm) Corrugated Aluminum Wall Panels
- 0.063 inches (1.60mm) Corrugated Aluminum Wall Panels
- 0.080 inches (2.03mm) Corrugated Aluminum Wall Panels
Special Application Thickness
For some special application scenarios, such as high wind pressure areas or special design needs, thicker panels may be used, even up to 0.125 inches (3.18mm) or more.
Corrugated Aluminum Wall Panels Corrugation Height Specifications
Corrugation height refers to the vertical height of the corrugation on the surface of corrugated aluminum wall panels. It directly affects the appearance and structural strength of the panels.
Standard Corrugation Height Range
The standard corrugation height of corrugated aluminum wall panels is usually between 1/2 inch (12.7mm) and 7/8 inch (22.2mm).
Common Corrugation Height Specifications
- 1/2 inch (12.7mm) Corrugated Aluminum Wall Panels
- 7/8 inch (22.2mm) Corrugated Aluminum Wall Panels
- 1 inch (25.4mm) Corrugated Aluminum Wall Panels
Special Corrugation Height
In some special designs, higher or lower corrugation heights may also be used, such as:
- 3/4 inch (19.05mm) Corrugated Aluminum Wall Panels
- 1-1/4 inch (31.75mm) Corrugated Aluminum Wall Panels, etc.
Corrugated Aluminum Wall Panels Corrugation Pitch Specifications
Corrugation pitch refers to the horizontal distance between the peaks or valleys of two adjacent corrugations. Together with corrugation height, it determines the shape and visual effect of the corrugations.
Standard Corrugation Pitch Range
The standard corrugation pitch of corrugated aluminum wall panels is usually between 2.67 inches (67.8mm) and 4.2 inches (106.7mm).
Common Corrugation Pitch Specifications
- 2.67 inches (67.8mm) Corrugated Aluminum Wall Panels
- 2.7 inches (68.6mm) Corrugated Aluminum Wall Panels
- 4.2 inches (106.7mm) Corrugated Aluminum Wall Panels
Special Corrugation Spacing
In some special designs, different corrugation spacings are also used, such as:
- 2.19 inches (55.6mm) Corrugated Aluminum Wall Panels
- 2.74 inches (69.6mm) Corrugated Aluminum Wall Panels
- 3.42 inches (86.9mm) Corrugated Aluminum Wall Panels
Common Specification Combinations of Corrugated Aluminum Wall Panels
The specification parameters of corrugated aluminum wall panels usually appear in specific combination forms. Below are several common specification combinations:
7/8 Inch Corrugated Aluminum Wall Panels
This is one of the most common series of corrugated aluminum wall panels, with the main specification parameters as follows:
- Corrugation height: 7/8 inch (22.2mm)
- Corrugation spacing: 2.67 inches (67.8mm)
- Total width: 39 inches (990.6mm)
- Thickness: 0.032 inch (0.81mm) or 0.040 inch (1.02mm)
- Length: 6'0" (72 inches) to 22'0" (264 inches)
1/2 Inch Corrugated Aluminum Wall Panels
This is another common series of corrugated aluminum wall panels, with the main specification parameters as follows:
- Corrugation height: 1/2 inch (12.7mm)
- Corrugation spacing: 2.67 inches (67.8mm)
- Total width: 39 inches (990.6mm)
- Thickness: 0.024 inch (0.61mm) to 0.080 inch (2.03mm)
- Length: customized as needed
2.5 Inch Corrugated Aluminum Wall Panels
This is a medium corrugation height series, with the main specification parameters as follows:
- Corrugation height: 2.5 inches (63.5mm)
- Corrugation spacing: 4.2 inches (106.7mm)
- Total width: determined by design
- Thickness: usually 0.032 inch (0.81mm) or 0.040 inch (1.02mm)
- Length: customized as needed
Advantages of Corrugated Aluminum Wall Panels
- Lightweight yet strong: The aluminum alloy material makes the panels lightweight but high in strength, capable of meeting the needs of large-span applications while also reducing the load on the main structure of the building.
- Variety of surface treatments: Corrugated aluminum wall panels are usually available with multiple surface treatment options such as powder coating, PE coating, and PVDF coating. These treatments not only provide a wide range of colors (such as RAL color system) and texture choices, but also enhance weather resistance and corrosion resistance, maintaining long-lasting aesthetics.
- Excellent functionality: Many corrugated aluminum wall panels have good fire resistance, thermal insulation, sound insulation, and waterproof performance. Especially when used as composite panels, their special core layer structure can effectively block the transmission of sound and heat, improving indoor comfort.
- Weather and corrosion resistance: Aluminum alloy material itself is corrosion-resistant. Combined with surface treatments, these panels can withstand various harsh environments and ensure long-term use.
- Relatively easy installation: With standardized panel specifications, they are convenient for transportation and installation. Various methods such as dry hanging and keel installation can be used, which helps improve construction efficiency and shorten the construction period.
Application Scenarios of Corrugated Aluminum Wall Panels

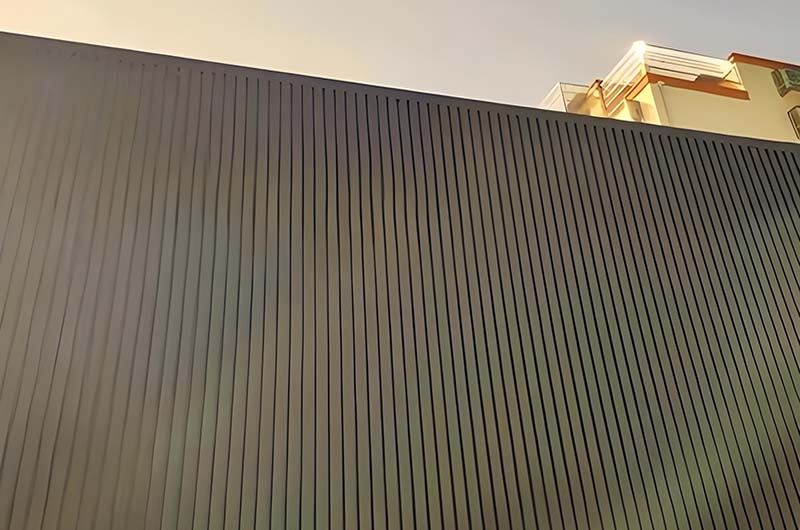

- Building exterior wall decoration: This is the most common application. Whether in commercial complexes, office buildings, hospitals, or other public buildings, it can create a modern and simple visual effect.

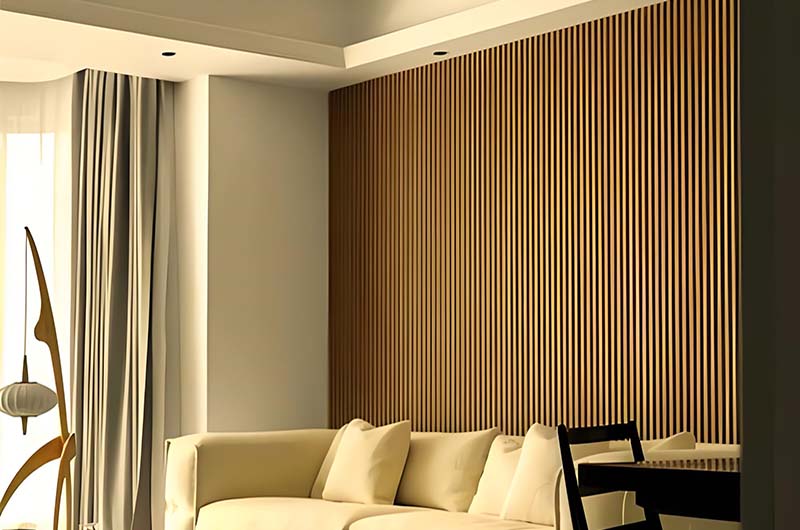

- Interior background walls and ceilings: In some design-oriented hotels, KTVs, commercial spaces, or home environments, stainless steel water ripple panels (note here, the material may be stainless steel) are often used for background walls or ceiling decoration. Their unique mirror effect and wave-like texture can create a dynamic and fashionable atmosphere.
- Advertising signs and storefront facades: Due to their strong customizability and decorative effect, they are also commonly used for storefront facades, advertising signs, and more.
- Transportation and industrial fields: They can also be used for vehicle interior and exterior panels, ships, as well as industrial equipment shells and protective covers.
Roofing Applications
Roofing applications usually need to consider waterproof performance and wind load resistance. It is recommended to choose:
- Corrugation height: 7/8 inch or higher
- Corrugation spacing: 2.67 inches
- Thickness: 0.032 inch or thicker
- Effective coverage width: 21.33 inches (with 2 corrugation overlaps)
Wall Applications
Wall applications usually focus more on aesthetics and ease of installation. It is recommended to choose:
- Corrugation height: 1/2 inch or 7/8 inch
- Corrugation spacing: 2.67 inches or 4.2 inches
- Thickness: 0.024 inch to 0.040 inch
- Effective coverage width: 24 inches (with 1 corrugation overlap)

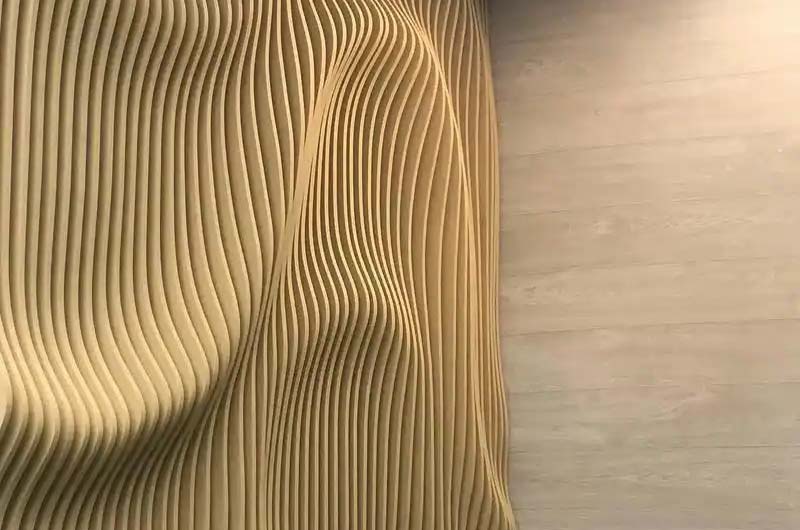

Decorative Applications
Decorative applications usually focus more on visual effects. You can choose according to design requirements:
- Corrugation height: 1/2 inch to 1-1/4 inch
- Corrugation spacing: 2.67 inches to 4.2 inches
- Thickness: 0.032 inch to 0.063 inch
- Colors and surface treatments: diverse options
The selection of corrugated aluminum wall panels needs to consider specification parameters including length, width, thickness, corrugation height, and corrugation spacing. Specification design usually follows industry standards and market demands, while also taking into account factors such as transportation convenience, ease of installation, and architectural aesthetic requirements.
