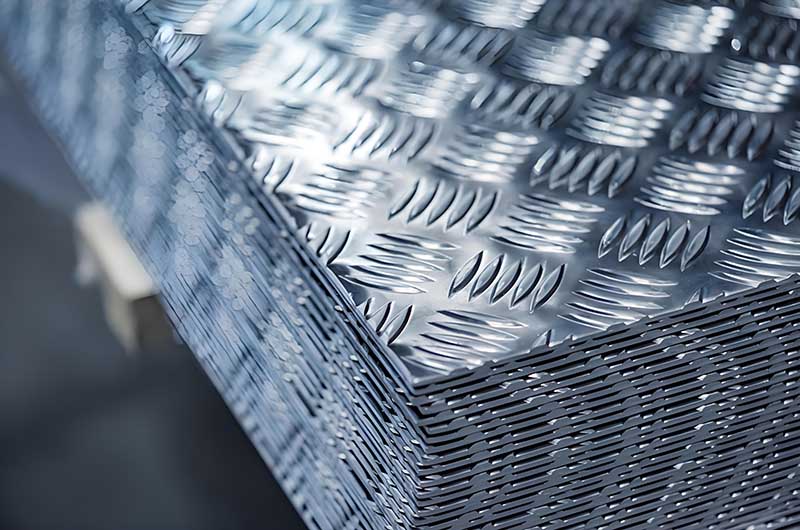

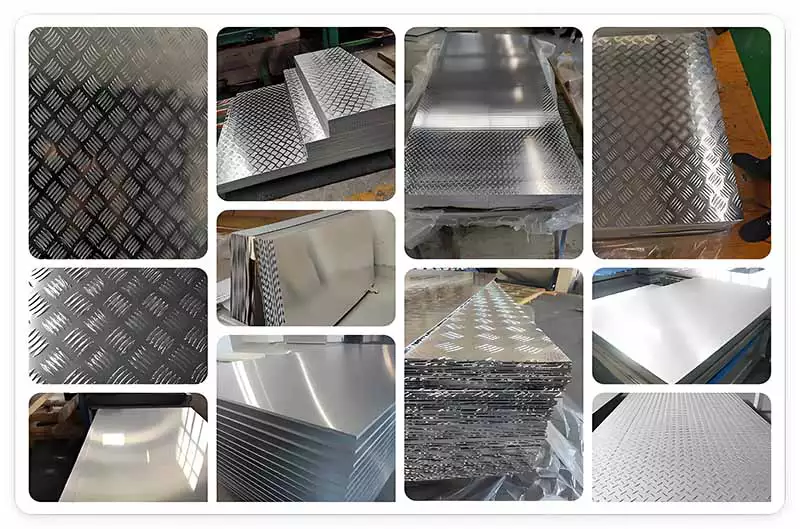

6061 aluminum tread plate, commonly known as "diamond plate" or "tread plate" is a high-strength, lightweight material widely used in applications requiring durability and slip resistance.
Due to its excellent comprehensive properties, 6061 aluminum alloy is an ideal choice for tread plates and flooring materials in industrial and construction fields.

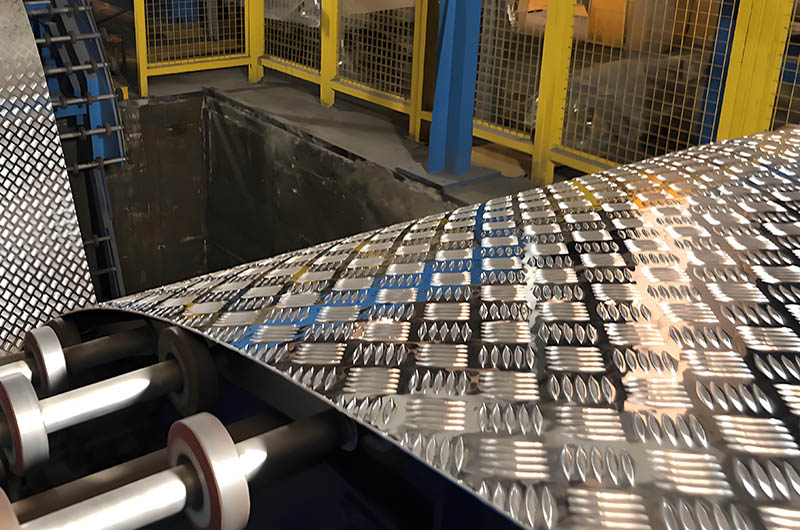

6061 aluminum is processed into patterned plates through embossing techniques. The surface texture (such as one-bar or three-bar patterns) significantly enhances slip resistance, making it suitable for wet and oily environments. 6061 aluminum tread plate features high hardness and good wear resistance, which extends its service life.
6061 aluminum tread plate is generally made of 6061-T6 aluminum alloy, a heat-treated alloy that has undergone solution heat treatment and artificial aging, resulting in improved strength and hardness. It offers an excellent strength-to-weight ratio comparable to low-carbon steel but with much lighter weight.
Haomei 6061 Aluminum Tread Plate Specifications
- Thickness: Ranges from 1/8 inch (0.125 inch) to 1/2 inch (0.5 inch).
- Standard sheet sizes: 4x8 feet, 4x10 feet, 5x12 feet.
- Custom cutting available (e.g., thicker plate sizes such as 48 inches x 192 inches).
Haomei 6061 Aluminum Tread Plate Surface Treatment

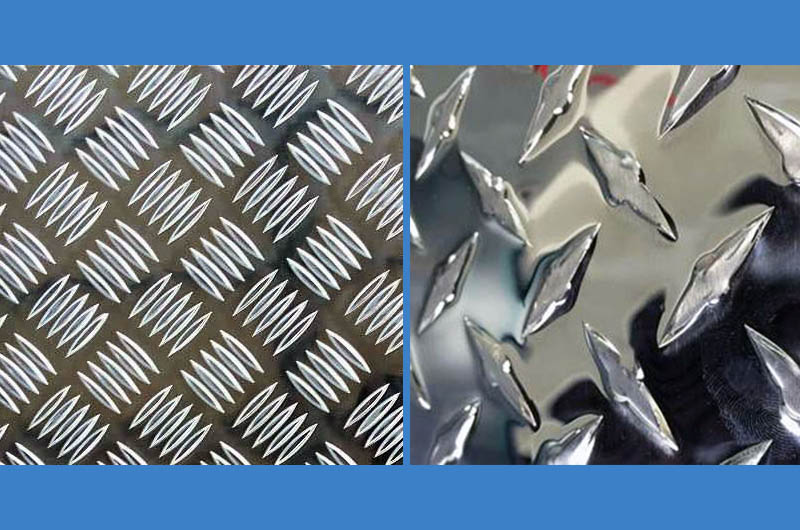

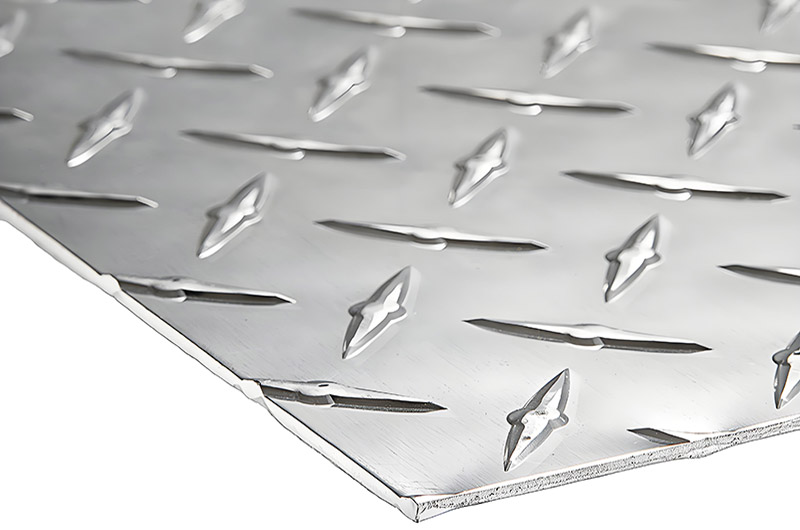

The surface of the 6061 aluminum tread plate features raised diamond patterns that provide excellent traction and reduce the risk of slipping. This design not only enhances the appearance but also serves a practical purpose, making it ideal for flooring and other applications where grip is essential.
- Mill finish: Matte, non-reflective texture with raised diamond patterns for slip resistance.
- Not suitable for decorative use; surface may have slight abrasions.
Aluminum Tread Floor Plate 6061 Chemical Composition
This alloy is primarily composed of aluminum, magnesium, and silicon. The designation "6061" indicates that this aluminum alloy is well-known for its superior mechanical properties and corrosion resistance. The "T6" temper signifies that the material has undergone heat treatment, resulting in enhanced strength and hardness.
| Element | Percentage |
| Al | 98 |
| Cr | 0.04 - 0.35 |
| Cu | 0.15 - 0.40 |
| Fe | 0.7 max |
| Mg | 0.8 - 1.2 |
| Mn | 0.15 max |
| Si | 0.4 - 0.8 |
| Ti | 0.15 max |
| Zn | 0.25 max |
Aluminum Tread Floor Plate 6061 Mechanical Information
| Param | Imperial | Metric |
| Density | 0.1 lb/in3 | 2.7 g/cc |
| Ultimate Tensile Strength | 45, 000psi | 310 MPa |
| Yield Tensile Strength | 40, 000psi | 276 MPa |
| Fatigue Strength | 14, 000psi | 96.5 MPa |
| Shear Strength | 30, 000psi | 207 MPa |
| Melting Point | 1, 080 - 1, 205°F | 582 - 652°C |
Haomei Aluminum Tread Plate 6061 Available Sizes
| Description | Thickness | Size | Surface Finish | Pattern |
| .063" (1/16) thick - Extra Wide 5 Bar Aluminum Tread Plate 6061 12" X 12" | .063" (1/16) thick - Extra Wide | 12" X 12" | Mill Finish | 5 Bar |
| .063" (1/16) thick - Extra Wide 5 Bar Aluminum Tread Plate 6061 24" X 36" | .063" (1/16) thick - Extra Wide | 24" X 36" | Highly Polished | 5 Bar |
| .063" (1/16) thick - Extra Wide 5 Bar Aluminum Tread Plate 6061 24" X 48" | .063" (1/16) thick - Extra Wide | 24" X 48" | Highly Polished | 5 Bar |
| .063" (1/16) thick - Extra Wide 5 Bar Aluminum Tread Plate 6061 36" X 36" | .063" (1/16) thick - Extra Wide | 36" X 36" | Mill Finish | 5 Bar |
| .063" (1/16) thick - Extra Wide 5 Bar Aluminum Tread Plate 6061 36" X 48" | .063" (1/16) thick - Extra Wide | 36" X 48" | Mill Finish | 5 Bar |
| .063" (1/16) thick - Extra Wide 5 Bar Aluminum Tread Plate 6061 48" X 48" | .063" (1/16) thick - Extra Wide | 48" X 48" | Mill Finish | 5 Bar |
| .063" (1/16) thick - Extra Wide 5 Bar Aluminum Tread Plate 6061 48" X 96" | .063" (1/16) thick - Extra Wide | 48" X 96" | Bright Finish | 5 Bar |
| .063" (1/16) thick - Extra Wide 6061 T6 Aluminum Diamond Tread Plate 12" X 24" | .063" (1/16) thick - Extra Wide | 12" X 24" | Mill Finish | Diamond |
| .063" (1/16) thick - Extra Wide 6061 T6 Aluminum Diamond Tread Plate 12" X 36" | .063" (1/16) thick - Extra Wide | 12" X 36" | Bright Finish | Diamond |
| .063" (1/16) thick - Extra Wide 6061 T6 Aluminum Diamond Tread Plate 12" X 48" | .063" (1/16) thick - Extra Wide | 12" X 48" | Bright Finish | Diamond |
| .063" (1/16) thick - Extra Wide 6061 T6 Aluminum Diamond Tread Plate 24" X 24" | .063" (1/16) thick - Extra Wide | 24" X 24" | Bright Finish | Diamond |
| .063" (1/16) thick 5 Bar Aluminum Tread Plate 6061 24" X 24" | .063" (1/16) thick | 24" X 24" | Mill Finish | 5 Bar |
| .063" (1/16) thick 5 Bar Aluminum Tread Plate 6061 24" X 36" | .063" (1/16) thick | 24" X 36" | Bright Finish | 5 Bar |
| .063" (1/16) thick 5 Bar Aluminum Tread Plate 6061 24" X 48" | .063" (1/16) thick | 24" X 48" | Bright Finish | 5 Bar |
| .063" (1/16) thick 5 Bar Aluminum Tread Plate 6061 36" X 36" | .063" (1/16) thick | 36" X 36" | Bright Finish | 5 Bar |
| .063" (1/16) thick 5 Bar Aluminum Tread Plate 6061 36" X 48" | .063" (1/16) thick | 36" X 48" | Highly Polished | 5 Bar |
| .063" (1/16) thick 5 Bar Aluminum Tread Plate 6061 48" X 48" | .063" (1/16) thick | 48" X 48" | Highly Polished | 5 Bar |
| .063" (1/16) thick 5 Bar Aluminum Tread Plate 6061 48" X 96" | .063" (1/16) thick | 48" X 96" | Mill Finish | 5 Bar |
| .063" (1/16) thick 6061 T6 Aluminum Diamond Tread Plate 12" X 12" | .063" (1/16) thick | 12" X 12" | Highly Polished | Diamond |
| .063" (1/16) thick 6061 T6 Aluminum Diamond Tread Plate 12" X 24" | .063" (1/16) thick | 12" X 24" | Highly Polished | Diamond |
| .063" (1/16) thick 6061 T6 Aluminum Diamond Tread Plate 12" X 36" | .063" (1/16) thick | 12" X 36" | Mill Finish | Diamond |
| .063" (1/16) thick 6061 T6 Aluminum Diamond Tread Plate 12" X 48" | .063" (1/16) thick | 12" X 48" | Mill Finish | Diamond |
| .100" thickness 5 Bar Aluminum Tread Plate 6061 12" X 12" | .100" thickness | 12" X 12" | Bright Finish | 5 Bar |
| .100" thickness 5 Bar Aluminum Tread Plate 6061 12" X 24" | .100" thickness | 12" X 24" | Bright Finish | 5 Bar |
| .100" thickness 5 Bar Aluminum Tread Plate 6061 24" X 48" | .100" thickness | 24" X 48" | Mill Finish | 5 Bar |
| .100" thickness 5 Bar Aluminum Tread Plate 6061 36" X 36" | .100" thickness | 36" X 36" | Bright Finish | 5 Bar |
| .100" thickness 5 Bar Aluminum Tread Plate 6061 36" X 48" | .100" thickness | 36" X 48" | Bright Finish | 5 Bar |
| .100" thickness 5 Bar Aluminum Tread Plate 6061 48" X 48" | .100" thickness | 48" X 48" | Bright Finish | 5 Bar |
| .100" thickness 5 Bar Aluminum Tread Plate 6061 48" X 96" | .100" thickness | 48" X 96" | Highly Polished | 5 Bar |
| .100" thickness 6061 T6 Aluminum Diamond Tread Plate 12" X 36" | .100" thickness | 12" X 36" | Highly Polished | Diamond |
| .100" thickness 6061 T6 Aluminum Diamond Tread Plate 12" X 48" | .100" thickness | 12" X 48" | Highly Polished | Diamond |
| .100" thickness 6061 T6 Aluminum Diamond Tread Plate 24" X 24" | .100" thickness | 24" X 24" | Mill Finish | Diamond |
| .100" thickness 6061 T6 Aluminum Diamond Tread Plate 24" X 36" | .100" thickness | 24" X 36" | Mill Finish | Diamond |
| .125" (1/8) thick - Extra Wide 5 Bar Aluminum Tread Plate 6061 12" X 12" | .125" (1/8) thick - Extra Wide | 12" X 12" | Mill Finish | 5 Bar |
| .125" (1/8) thick - Extra Wide 5 Bar Aluminum Tread Plate 6061 12" X 24" | .125" (1/8) thick - Extra Wide | 12" X 24" | Bright Finish | 5 Bar |
| .125" (1/8) thick - Extra Wide 5 Bar Aluminum Tread Plate 6061 12" X 36" | .125" (1/8) thick - Extra Wide | 12" X 36" | Bright Finish | 5 Bar |
| .125" (1/8) thick - Extra Wide 5 Bar Aluminum Tread Plate 6061 12" X 48" | .125" (1/8) thick - Extra Wide | 12" X 48" | Bright Finish | 5 Bar |
| .125" (1/8) thick - Extra Wide 5 Bar Aluminum Tread Plate 6061 36" X 48" | .125" (1/8) thick - Extra Wide | 36" X 48" | Mill Finish | 5 Bar |
| .125" (1/8) thick - Extra Wide 5 Bar Aluminum Tread Plate 6061 48" X 48" | .125" (1/8) thick - Extra Wide | 48" X 48" | Bright Finish | 5 Bar |
| .125" (1/8) thick - Extra Wide 5 Bar Aluminum Tread Plate 6061 48" X 96" | .125" (1/8) thick - Extra Wide | 48" X 96" | Bright Finish | 5 Bar |
| .125" (1/8) thick - Extra Wide 6061 T6 Aluminum Diamond Tread Plate 24" X 24" | .125" (1/8) thick - Extra Wide | 24" X 24" | Highly Polished | Diamond |
| .125" (1/8) thick - Extra Wide 6061 T6 Aluminum Diamond Tread Plate 24" X 36" | .125" (1/8) thick - Extra Wide | 24" X 36" | Highly Polished | Diamond |
| .125" (1/8) thick - Extra Wide 6061 T6 Aluminum Diamond Tread Plate 24" X 48" | .125" (1/8) thick - Extra Wide | 24" X 48" | Mill Finish | Diamond |
| .125" (1/8) thick - Extra Wide 6061 T6 Aluminum Diamond Tread Plate 36" X 36" | .125" (1/8) thick - Extra Wide | 36" X 36" | Mill Finish | Diamond |
| .125" (1/8) thick 5 Bar Aluminum Tread Plate 6061 12" X 12" | .125" (1/8) thick | 12" X 12" | Highly Polished | 5 Bar |
| .125" (1/8) thick 5 Bar Aluminum Tread Plate 6061 12" X 12" | .125" (1/8) thick | 12" X 12" | Bright Finish | 5 Bar |
| .125" (1/8) thick 5 Bar Aluminum Tread Plate 6061 12" X 24" | .125" (1/8) thick | 12" X 24" | Mill Finish | 5 Bar |
| .125" (1/8) thick 5 Bar Aluminum Tread Plate 6061 12" X 24" | .125" (1/8) thick | 12" X 24" | Highly Polished | 5 Bar |
| .125" (1/8) thick 5 Bar Aluminum Tread Plate 6061 12" X 36" | .125" (1/8) thick | 12" X 36" | Mill Finish | 5 Bar |
| .125" (1/8) thick 5 Bar Aluminum Tread Plate 6061 12" X 36" | .125" (1/8) thick | 12" X 36" | Highly Polished | 5 Bar |
| .125" (1/8) thick 5 Bar Aluminum Tread Plate 6061 12" X 48" | .125" (1/8) thick | 12" X 48" | Mill Finish | 5 Bar |
| .125" (1/8) thick 5 Bar Aluminum Tread Plate 6061 24" X 24" | .125" (1/8) thick | 24" X 24" | Mill Finish | 5 Bar |
| .125" (1/8) thick 5 Bar Aluminum Tread Plate 6061 36" X 36" | .125" (1/8) thick | 36" X 36" | Highly Polished | 5 Bar |
| .125" (1/8) thick 5 Bar Aluminum Tread Plate 6061 36" X 48" | .125" (1/8) thick | 36" X 48" | Highly Polished | 5 Bar |
| .125" (1/8) thick 5 Bar Aluminum Tread Plate 6061 48" X 48" | .125" (1/8) thick | 48" X 48" | Mill Finish | 5 Bar |
| .125" (1/8) thick 5 Bar Aluminum Tread Plate 6061 48" X 48" | .125" (1/8) thick | 48" X 48" | Highly Polished | 5 Bar |
| .125" (1/8) thick 5 Bar Aluminum Tread Plate 6061 48" X 96" | .125" (1/8) thick | 48" X 96" | Mill Finish | 5 Bar |
| .125" (1/8) thick 5 Bar Aluminum Tread Plate 6061 48" X 96" | .125" (1/8) thick | 48" X 96" | Highly Polished | 5 Bar |
| .125" (1/8) thick 6061 T6 Aluminum Diamond Tread Plate 12" X 48" | .125" (1/8) thick | 12" X 48" | Mill Finish | Diamond |
| .125" (1/8) thick 6061 T6 Aluminum Diamond Tread Plate 24" X 24" | .125" (1/8) thick | 24" X 24" | Bright Finish | Diamond |
| .125" (1/8) thick 6061 T6 Aluminum Diamond Tread Plate 24" X 36" | .125" (1/8) thick | 24" X 36" | Bright Finish | Diamond |
| .125" (1/8) thick 6061 T6 Aluminum Diamond Tread Plate 24" X 36" | .125" (1/8) thick | 24" X 36" | Mill Finish | Diamond |
| .125" (1/8) thick 6061 T6 Aluminum Diamond Tread Plate 24" X 48" | .125" (1/8) thick | 24" X 48" | Bright Finish | Diamond |
| .125" (1/8) thick 6061 T6 Aluminum Diamond Tread Plate 24" X 48" | .125" (1/8) thick | 24" X 48" | Bright Finish | Diamond |
| .125" (1/8) thick 6061 T6 Aluminum Diamond Tread Plate 36" X 36" | .125" (1/8) thick | 36" X 36" | Bright Finish | Diamond |
| .125" (1/8) thick 6061 T6 Aluminum Diamond Tread Plate 36" X 48" | .125" (1/8) thick | 36" X 48" | Bright Finish | Diamond |
| .188" (3/16) thick - Extra Wide Aluminum Tread Floor Plate 6061 12" X 12" | .188" (3/16) thick - Extra Wide | 12" X 12" | Bright Finish | 5 Bar |
| .188" (3/16) thick - Extra Wide Aluminum Tread Floor Plate 6061 12" X 24" | .188" (3/16) thick - Extra Wide | 12" X 24" | Bright Finish | 5 Bar |
| .188" (3/16) thick - Extra Wide Aluminum Tread Floor Plate 6061 12" X 36" | .188" (3/16) thick - Extra Wide | 12" X 36" | Bright Finish | 5 Bar |
| .188" (3/16) thick - Extra Wide Aluminum Tread Floor Plate 6061 12" X 48" | .188" (3/16) thick - Extra Wide | 12" X 48" | Highly Polished | 5 Bar |
| .188" (3/16) thick - Extra Wide Aluminum Tread Floor Plate 6061 24" X 24" | .188" (3/16) thick - Extra Wide | 24" X 24" | Highly Polished | 5 Bar |
| .188" (3/16) thick - Extra Wide Aluminum Tread Floor Plate 6061 24" X 36" | .188" (3/16) thick - Extra Wide | 24" X 36" | Mill Finish | 5 Bar |
| .188" (3/16) thick - Extra Wide Aluminum Tread Floor Plate 6061 24" X 48" | .188" (3/16) thick - Extra Wide | 24" X 48" | Mill Finish | 5 Bar |
| .188" (3/16) thick - Extra Wide 6061 T6 Aluminum Diamond Tread Plate 36" X 36" | .188" (3/16) thick - Extra Wide | 36" X 36" | Mill Finish | Diamond |
| .188" (3/16) thick - Extra Wide 6061 T6 Aluminum Diamond Tread Plate 36" X 48" | .188" (3/16) thick - Extra Wide | 36" X 48" | Bright Finish | Diamond |
| .188" (3/16) thick - Extra Wide 6061 T6 Aluminum Diamond Tread Plate 48" X 48" | .188" (3/16) thick - Extra Wide | 48" X 48" | Bright Finish | Diamond |
| .188" (3/16) thick - Extra Wide 6061 T6 Aluminum Diamond Tread Plate 48" X 96" | .188" (3/16) thick - Extra Wide | 48" X 96" | Bright Finish | Diamond |
| .188" (3/16) thick Aluminum Tread Floor Plate 6061 12" X 12" | .188" (3/16) thick | 12" X 12" | Mill Finish | 5 Bar |
| .188" (3/16) thick Aluminum Tread Floor Plate 6061 12" X 24" | .188" (3/16) thick | 12" X 24" | Mill Finish | 5 Bar |
| .188" (3/16) thick Aluminum Tread Floor Plate 6061 12" X 36" | .188" (3/16) thick | 12" X 36" | Mill Finish | 5 Bar |
| .188" (3/16) thick Aluminum Tread Floor Plate 6061 12" X 48" | .188" (3/16) thick | 12" X 48" | Bright Finish | 5 Bar |
| .188" (3/16) thick Aluminum Tread Floor Plate 6061 24" X 24" | .188" (3/16) thick | 24" X 24" | Bright Finish | 5 Bar |
| .188" (3/16) thick Aluminum Tread Floor Plate 6061 24" X 36" | .188" (3/16) thick | 24" X 36" | Bright Finish | 5 Bar |
| .188" (3/16) thick Aluminum Tread Floor Plate 6061 48" X 96" | .188" (3/16) thick | 48" X 96" | Mill Finish | 5 Bar |
| .188" (3/16) thick 6061 T6 Aluminum Diamond Tread Plate 24" X 48" | .188" (3/16) thick | 24" X 48" | Highly Polished | Diamond |
| .188" (3/16) thick 6061 T6 Aluminum Diamond Tread Plate 36" X 36" | .188" (3/16) thick | 36" X 36" | Highly Polished | Diamond |
| .188" (3/16) thick 6061 T6 Aluminum Diamond Tread Plate 36" X 48" | .188" (3/16) thick | 36" X 48" | Mill Finish | Diamond |
| .188" (3/16) thick 6061 T6 Aluminum Diamond Tread Plate 48" X 48" | .188" (3/16) thick | 48" X 48" | Mill Finish | Diamond |
| .250" (1/4) thick - Extra Wide Aluminum Tread Floor Plate 6061 12" X 24" | .250" (1/4) thick - Extra Wide | 12" X 24" | Mill Finish | 5 Bar |
| .250" (1/4) thick - Extra Wide Aluminum Tread Floor Plate 6061 12" X 36" | .250" (1/4) thick - Extra Wide | 12" X 36" | Bright Finish | 5 Bar |
| .250" (1/4) thick - Extra Wide Aluminum Tread Floor Plate 6061 12" X 48" | .250" (1/4) thick - Extra Wide | 12" X 48" | Bright Finish | 5 Bar |
| .250" (1/4) thick - Extra Wide Aluminum Tread Floor Plate 6061 24" X 24" | .250" (1/4) thick - Extra Wide | 24" X 24" | Bright Finish | 5 Bar |
| .250" (1/4) thick - Extra Wide Aluminum Tread Floor Plate 6061 24" X 36" | .250" (1/4) thick - Extra Wide | 24" X 36" | Highly Polished | 5 Bar |
| .250" (1/4) thick - Extra Wide Aluminum Tread Floor Plate 6061 24" X 48" | .250" (1/4) thick - Extra Wide | 24" X 48" | Highly Polished | 5 Bar |
| .250" (1/4) thick - Extra Wide Aluminum Tread Floor Plate 6061 36" X 36" | .250" (1/4) thick - Extra Wide | 36" X 36" | Mill Finish | 5 Bar |
| .250" (1/4) thick - Extra Wide Aluminum Tread Floor Plate 6061 36" X 48" | .250" (1/4) thick - Extra Wide | 36" X 48" | Mill Finish | 5 Bar |
| .250" (1/4) thick - Extra Wide 6061 T6 Aluminum Diamond Tread Plate 12" X 12" | .250" (1/4) thick - Extra Wide | 12" X 12" | Mill Finish | Diamond |
| .250" (1/4) thick - Extra Wide 6061 T6 Aluminum Diamond Tread Plate 48" X 48" | .250" (1/4) thick - Extra Wide | 48" X 48" | Mill Finish | Diamond |
| .250" (1/4) thick - Extra Wide 6061 T6 Aluminum Diamond Tread Plate 48" X 96" | .250" (1/4) thick - Extra Wide | 48" X 96" | Bright Finish | Diamond |
| .250" (1/4) thick Aluminum Tread Floor Plate 6061 12" X 12" | .250" (1/4) thick | 12" X 12" | Highly Polished | 5 Bar |
| .250" (1/4) thick Aluminum Tread Floor Plate 6061 12" X 24" | .250" (1/4) thick | 12" X 24" | Highly Polished | 5 Bar |
| .250" (1/4) thick Aluminum Tread Floor Plate 6061 12" X 36" | .250" (1/4) thick | 12" X 36" | Mill Finish | 5 Bar |
| .250" (1/4) thick Aluminum Tread Floor Plate 6061 12" X 48" | .250" (1/4) thick | 12" X 48" | Mill Finish | 5 Bar |
| .250" (1/4) thick Aluminum Tread Floor Plate 6061 24" X 24" | .250" (1/4) thick | 24" X 24" | Mill Finish | 5 Bar |
| .250" (1/4) thick Aluminum Tread Floor Plate 6061 24" X 36" | .250" (1/4) thick | 24" X 36" | Bright Finish | 5 Bar |
| .250" (1/4) thick Aluminum Tread Floor Plate 6061 24" X 48" | .250" (1/4) thick | 24" X 48" | Bright Finish | 5 Bar |
| .250" (1/4) thick Aluminum Tread Floor Plate 6061 36" X 36" | .250" (1/4) thick | 36" X 36" | Bright Finish | 5 Bar |
| .250" (1/4) thick 6061 T6 Aluminum Diamond Tread Plate 36" X 48" | .250" (1/4) thick | 36" X 48" | Highly Polished | Diamond |
| .250" (1/4) thick 6061 T6 Aluminum Diamond Tread Plate 48" X 48" | .250" (1/4) thick | 48" X 48" | Highly Polished | Diamond |
| .250" (1/4) thick 6061 T6 Aluminum Diamond Tread Plate 48" X 96" | .250" (1/4) thick | 48" X 96" | Mill Finish | Diamond |
| 1/2" thick Aluminum Tread Floor Plate 6061 12" X 48" | 1/2" thick | 12" X 48" | Mill Finish | 5 Bar |
| 1/2" thick Aluminum Tread Floor Plate 6061 24" X 24" | 1/2" thick | 24" X 24" | Bright Finish | 5 Bar |
| 1/2" thick Aluminum Tread Floor Plate 6061 24" X 36" | 1/2" thick | 24" X 36" | Bright Finish | 5 Bar |
| 1/2" thick Aluminum Tread Floor Plate 6061 24" X 48" | 1/2" thick | 24" X 48" | Bright Finish | 5 Bar |
| 1/2" thick Aluminum Tread Floor Plate 6061 36" X 36" | 1/2" thick | 36" X 36" | Highly Polished | 5 Bar |
| 1/2" thick Aluminum Tread Floor Plate 6061 36" X 48" | 1/2" thick | 36" X 48" | Highly Polished | 5 Bar |
| 1/2" thick Aluminum Tread Floor Plate 6061 48" X 48" | 1/2" thick | 48" X 48" | Mill Finish | 5 Bar |
| 1/2" thick Aluminum Tread Floor Plate 6061 48" X 96" | 1/2" thick | 48" X 96" | Mill Finish | 5 Bar |
| 1/2" thick 6061 T6 Aluminum Diamond Tread Plate 12" X 12" | 1/2" thick | 12" X 12" | Highly Polished | Diamond |
| 1/2" thick 6061 T6 Aluminum Diamond Tread Plate 12" X 24" | 1/2" thick | 12" X 24" | Mill Finish | Diamond |
| 1/2" thick 6061 T6 Aluminum Diamond Tread Plate 12" X 36" | 1/2" thick | 12" X 36" | Mill Finish | Diamond |
| 3/8" thick Aluminum Tread Floor Plate 6061 12" X 36" | 3/8" thick | 12" X 36" | Highly Polished | 5 Bar |
| 3/8" thick Aluminum Tread Floor Plate 6061 12" X 48" | 3/8" thick | 12" X 48" | Highly Polished | 5 Bar |
| 3/8" thick Aluminum Tread Floor Plate 6061 24" X 24" | 3/8" thick | 24" X 24" | Mill Finish | 5 Bar |
| 3/8" thick Aluminum Tread Floor Plate 6061 24" X 36" | 3/8" thick | 24" X 36" | Mill Finish | 5 Bar |
| 3/8" thick Aluminum Tread Floor Plate 6061 24" X 48" | 3/8" thick | 24" X 48" | Mill Finish | 5 Bar |
| 3/8" thick Aluminum Tread Floor Plate 6061 36" X 36" | 3/8" thick | 36" X 36" | Bright Finish | 5 Bar |
| 3/8" thick Aluminum Tread Floor Plate 6061 36" X 48" | 3/8" thick | 36" X 48" | Bright Finish | 5 Bar |
| 3/8" thick Aluminum Tread Floor Plate 6061 48" X 48" | 3/8" thick | 48" X 48" | Bright Finish | 5 Bar |
| 3/8" thick 6061 T6 Aluminum Diamond Tread Plate 12" X 12" | 3/8" thick | 12" X 12" | Bright Finish | Diamond |
| 3/8" thick 6061 T6 Aluminum Diamond Tread Plate 12" X 24" | 3/8" thick | 12" X 24" | Bright Finish | Diamond |
| 3/8" thick 6061 T6 Aluminum Diamond Tread Plate 48" X 96" | 3/8" thick | 48" X 96" | Highly Polished | Diamond |
6061 Aluminum Tread Floor Plate Applications
| Application | Description |
| Truck Beds and Trailer Floors | Truck beds and trailer floors are key application areas for 6061 aluminum tread plate. With its high strength and wear resistance, the aluminum plate can withstand repeated rolling of heavy cargo without deformation. The diamond pattern on the surface enhances slip resistance, ensuring safety during loading and unloading. Additionally, the lightweight nature of 6061 aluminum reduces vehicle weight, improving transportation efficiency and fuel economy. |
| Indoor and Outdoor Platforms & Stair Treads | Indoor and outdoor platforms and stair treads commonly use 6061 aluminum tread plate as a slip-resistant flooring material. With excellent mechanical strength and corrosion resistance, it is ideal for high-traffic, frequently stepped-on environments. The patterned surface enhances friction and effectively prevents slipping accidents, making it especially suitable for commercial buildings, industrial platforms, and stair systems in multi-story structures. |
| Ship Decks | Ship decks represent a typical marine application of 6061 aluminum tread plate. The alloy offers excellent resistance to seawater corrosion, maintaining structural stability even in high-salinity and high-humidity marine environments. The anti-slip pattern on the surface provides extra traction under wet conditions, enhancing the safety of crew operations. It is widely used on the decks of yachts, fishing boats, and work vessels. |
| Vehicle Ramps and Step Rails | 6061 aluminum tread plate is ideal for vehicle ramps and step rails, significantly enhancing safety. The anti-slip texture ensures sufficient friction for wheelchairs, trolleys, and pedestrians moving up and down ramps, preventing slippage. Meanwhile, its lightweight nature allows for easy installation and mobility, making it particularly suitable for removable ramps, temporary passages, and outdoor facilities. |
| Safety Walkways and Trench Covers | Safety walkways and trench covers are key applications of 6061 aluminum tread plate in industrial and municipal facilities. The aluminum tread plate not only offers excellent load-bearing capacity but also maintains anti-slip performance in rainy or snowy conditions, effectively preventing accidents. Its corrosion resistance also makes it suitable for use in high-moisture or corrosive environments such as wastewater treatment plants, power stations, and subway ventilation shafts, providing safe passageways for maintenance personnel. |
Advantages of 6061 Aluminum Tread Floor Plate
| Advantage Category | Description |
| High Strength-to-Weight Ratio | 6061 Aluminum Tread Floor Plate offers an excellent high strength-to-weight ratio, providing sufficient mechanical support while maintaining a lightweight structure. This characteristic makes it an ideal choice for applications such as transportation equipment, construction platforms, and structural components. It not only reduces overall load but also ensures stability and safety under heavy pressure or impact. |
| Corrosion Resistance | 6061 Aluminum Tread Floor Plate has outstanding corrosion resistance, making it especially suitable for engineering projects frequently exposed to humid environments, rainy and snowy weather, or marine climates. Its natural resistance to oxidation and corrosion allows it to maintain structural integrity and surface quality over time, without the need for frequent maintenance. |
| Formability | 6061 Aluminum Tread Floor Plate exhibits good formability and is easy to weld, drill, bend, and perform other mechanical processing operations. Its processing flexibility allows engineers to customize the material based on various application requirements. Whether used for standard structural parts or complex geometric shapes, it meets the technical needs of production and assembly. |
| Aesthetics | 6061 Aluminum Tread Floor Plate features a simple yet modern aesthetic appearance. Its uniform pattern and metallic luster add professionalism and visual appeal to architectural and industrial projects. This attractive appearance makes it suitable not only for functional flooring but also for visible structures requiring appearance, such as stairs, display platforms, or decorative installations. |
Comparison of 6061 Aluminum and 3003 Aluminum
- Strength: 6061-T6 is approximately 20% stronger than 3003.
- Application Cases: 6061 is suitable for structural/industrial applications, while 3003 (polished surface) is more suitable for decorative applications.
- Heat Treatment: 6061 is heat-treatable (T6 condition), whereas 3003 is not heat-treatable.
Design and Fabrication
- Formability: Limited; bending radius must be gradually reduced to avoid cracking.
- Machinability: Excellent for drilling, welding, and cutting.
- Tread Patterns: Offers embossed fire truck quality (FTQ), 5-Bar, and Tread Brite tread patterns to enhance grip.
Selection Recommendations for 6061 Aluminum Tread Floor Plate
- General anti-slip requirements: Choose tread plates (such as three-bar type) for a balance between cost and performance.
- High load-bearing scenarios: Prioritize T6 heat-treated plates to ensure strength compliance.
- Corrosive environments: Pair with anodizing process to extend service life.
Through proper material selection and process optimization, 6061 aluminum tread/floor plates can be widely applied across multiple fields, achieving a balance of safety, durability, and lightweight performance.
6061 aluminum tread plate combines mechanical strength, corrosion resistance, and functional design, making it the preferred choice for applications focused on durability and safety.
Haomei Other Alloy Aluminum Tread Plate
-
3003 Aluminum tread plate, commonly known as “diamond plate” or “floor plate”.
-
Aluminum Tread Plate 4017 is slightly stronger than 3003, making it suitable for applications requiring higher strength, particularly in outdoor or construction environments.
Aluminum terad plate similar products
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Red aluminum diamond plate
-
Grey aluminum diamond plate
-
-
-
-
-
-
-
-
-
-
-
