Aluminum Tread Plate 4017

The 4017 aluminum tread plate, also known as aluminum checker plate or diamond plate, is a versatile material characterized by raised patterns on one side, typically in diamond or linear shapes, which enhance its anti-slip properties. This feature makes it particularly suitable for applications requiring high durability and safety.

The 4017 aluminum tread plate is a widely used anti-slip material, known for its durability and adaptability in industrial, construction, and transportation sectors.

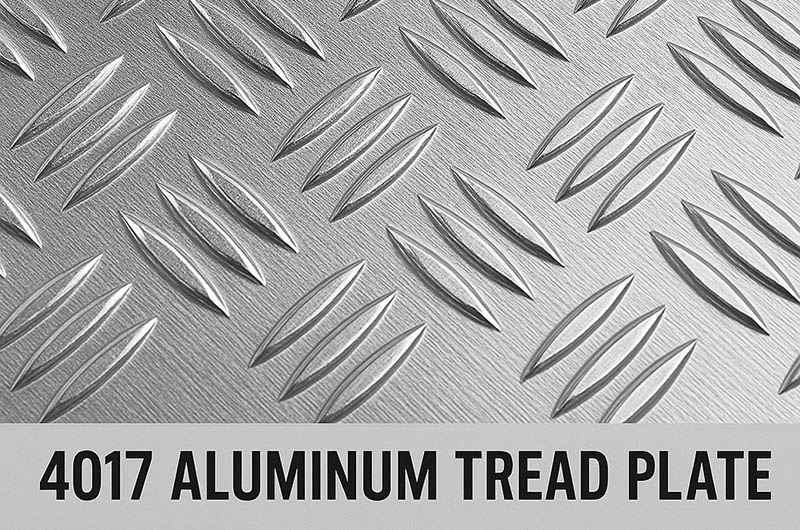

4017 aluminum tread plate

The 4017 aluminum tread plate is slightly stronger than 3003, making it suitable for applications requiring higher strength, especially in outdoor or construction environments.

The 4017 aluminum tread plate is a textured flat aluminum alloy plate, usually featuring diamond or five-bar patterns. These patterns enhance grip and durability, making it ideal for various anti-slip and wear-resistant applications.

The 4017 alloy offers excellent corrosion resistance, comparable to 3003 and other 3xxx series aluminum alloys, making it suitable for various outdoor and harsh environment applications.

The 4017 alloy has good corrosion resistance, making it highly suitable for use in moist, external, or industrial environments.

What is 4017 aluminum?

The name "4017" typically refers to a specific aluminum alloy composition. In this case, it is most likely an aluminum-magnesium-silicon alloy, offering good strength, corrosion resistance, and weldability.

This material is easy to form, drill, and weld, giving it a high degree of manufacturability.

The 4017 alloy is particularly suitable for coating processes, including coil coating, powder coating, and painting. It is compatible with various welding methods, such as MIG (Metal Inert Gas), TIG (Tungsten Inert Gas), laser welding, and high-frequency techniques, making it a versatile material for manufacturing and construction.

Features of Tread Plate Aluminum 4017

Welding: Good
Machining/Grinding: Good
Bending/Forming: Good
Wear resistance: Good
Corrosion resistance: Good

4017 Aluminum Tread Plate Specifications

Item	Parameter Range/Options
Thickness	0.8–7.0 mm (customizable, maximum thickness 10 mm)
Width	500–2600 mm
Length	Maximum length 16, 000 mm, or supplied in coil form
Standard Size	1220×2440 mm, 1500×3000 mm, 4×8 ft sheets
Pattern Type	1 bar, 2 bar, 3 bar, 5 bar
Surface Finish	Mill finish, Polished finish, Mirror finish with film coating

Haomei Provide 4017 Tread Aluminum Sheet Plate Sizes

0.045" thick 4017 H22 Brite Aluminum Diamond Plate

Surface Finish: Bright Finish, Pattern: Diamond
0.045" thick 4017 H22 Brite Aluminum Tread Plate

Surface Finish: Bright Finish, Pattern: 5 Bar
.063" (1/16) thick 4017 H22 Brite Aluminum Diamond Plate

Surface Finish: Bright Finish, Pattern: Diamond
.063" (1/16) thick 4017 H22 Brite Aluminum Tread Plate

Surface Finish: Bright Finish, Pattern: 5 Bar
0.100" thick 4017 H22 Brite Aluminum Diamond Plate

Surface Finish: Bright Finish, Pattern: Diamond
0.100" thick 4017 H22 Brite Aluminum Tread Plate

Surface Finish: Bright Finish, Pattern: 5 Bar
.188" (3/16) thick 4017 H22 Brite Aluminum Diamond Plate

Surface Finish: Bright Finish, Pattern: Diamond
.188" (3/16) thick 4017 H22 Brite Aluminum Tread Plate

Surface Finish: Bright Finish, Pattern: 5 Bar
.250" (1/4) thick 4017 H22 Brite Aluminum Diamond Plate

Surface Finish: Bright Finish, Pattern: Diamond
.250" (1/4) thick 4017 H22 Brite Aluminum Tread Plate

Surface Finish: Bright Finish, Pattern: 5 Bar
0.045" thick 4017 Aluminum Diamond Plate

Surface Finish: Highly Polished, Pattern: Diamond
0.045" thick Aluminum 4017 Tread Plate

Surface Finish: Highly Polished, Pattern: 5 Bar
.063" (1/16) thick 4017 Aluminum Diamond Plate

Surface Finish: Highly Polished, Pattern: Diamond
.063" (1/16) thick Aluminum 4017 Tread Plate

Surface Finish: Highly Polished, Pattern: 5 Bar
0.100" thick 4017 Aluminum Diamond Plate

Surface Finish: Highly Polished, Pattern: Diamond
0.100" thick Aluminum 4017 Tread Plate

Surface Finish: Highly Polished, Pattern: 5 Bar
.188" (3/16) thick 4017 Aluminum Diamond Plate

Surface Finish: Highly Polished, Pattern: Diamond
.188" (3/16) thick Aluminum 4017 Tread Plate

Surface Finish: Highly Polished, Pattern: 5 Bar
.250" (1/4) thick 4017 Aluminum Diamond Plate

Surface Finish: Highly Polished, Pattern: Diamond
.250" (1/4) thick Aluminum 4017 Tread Plate

Surface Finish: Highly Polished, Pattern: 5 Bar
0.045" thick 4017 Aluminum Diamond Plate

Surface Finish: Mill Finish, Pattern: Diamond
0.045" thick Aluminum 4017 Tread Plate

Surface Finish: Mill Finish, Pattern: 5 Bar
.063" (1/16) thick 4017 Aluminum Diamond Plate

Surface Finish: Mill Finish, Pattern: Diamond
.063" (1/16) thick Aluminum 4017 Tread Plate

Surface Finish: Mill Finish, Pattern: 5 Bar
0.100" thick 4017 Aluminum Diamond Plate

Surface Finish: Mill Finish, Pattern: Diamond
0.100" thick Aluminum 4017 Tread Plate

Surface Finish: Mill Finish, Pattern: 5 Bar
.188" (3/16) thick 4017 Aluminum Diamond Plate

Surface Finish: Mill Finish, Pattern: Diamond
.188" (3/16) thick Aluminum 4017 Tread Plate

Surface Finish: Mill Finish, Pattern: 5 Bar
.250" (1/4) thick 4017 Aluminum Diamond Plate

Surface Finish: Mill Finish, Pattern: Diamond
.250" (1/4) thick Aluminum 4017 Tread Plate

Surface Finish: Mill Finish, Pattern: 5 Bar

4017 Aluminum Tread Plate Chemical Composition

The 4017 aluminum tread plate is an aluminum-based alloy with added elements such as silicon (Si), manganese (Mn), magnesium (Mg), and copper (Cu).

4017 aluminum contains silicon (0.6-1.6%), manganese (0.6-1.2%), magnesium (0.1-0.5%), and trace amounts of copper, iron, and zinc. This composition enhances strength while maintaining corrosion resistance comparable to the widely used 3003 alloy.

%	Si	Fe	Cu	Mn	Mg	Zn	Other Each		Al
							Each	Total
Range	0.6-1.6	<0.7	0.10-0.50	0.6-1.2	0.10-0.50	<0.20	<0.05	<0.15	Remainder

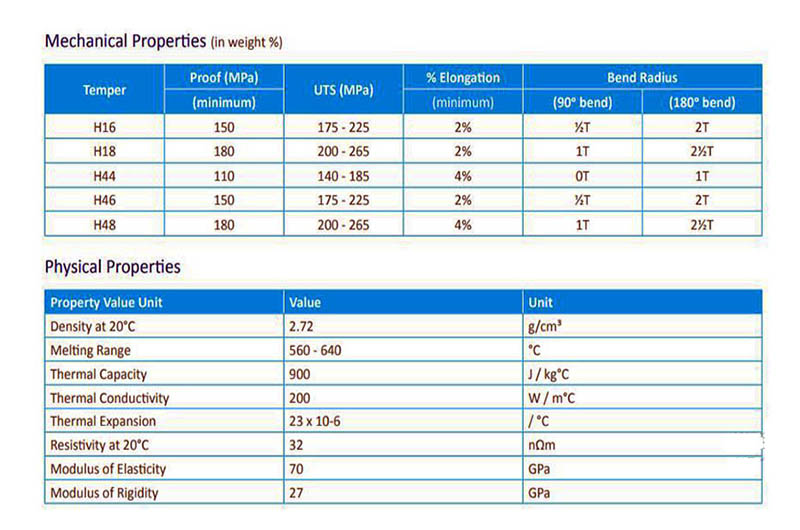

Tread Plate Aluminum 4017 Mechanical Properties

The mechanical properties of the 4017 aluminum tread plate vary depending on the temper. For example, in H22 temper, it has higher hardness and durability while maintaining good bending and formability.

Available in H-series tempers (such as H16, H18, H22, H24), these affect the hardness and tensile strength. For example:

H16: Minimum yield strength of 150 MPa, tensile strength of 175–225 MPa.
H22: Balances formability and strength, commonly used for tread plates.

Tread Plate Aluminum 4017 Mechanical Properties

4017 Aluminum Tread Plate Properties

Corrosion Resistance: Compared to 3003 aluminum alloy, 4017 exhibits excellent corrosion resistance, suitable for humid and chemical environments. Its corrosion resistance is close to that of 3-series aluminum alloys and performs better especially after surface treatment.
Formability: The 4017 alloy has good formability, easily roll-formed and processed into various shapes without compromising structural integrity.
Weldability: 4017 aluminum tread plate supports efficient welding using MIG, TIG, laser, and high-frequency welding techniques.
Surface Finish: Its bright and reflective surface enhances both aesthetics and functionality.

4017 Aluminum Tread Plate Surface and Pattern Options

Pattern: Diamond, single bar, three-bar, five-bar, or propeller-type design with excellent anti-slip performance.
Surface Finish: Mill finish, polished, or mirror finish; some styles use color coating for aesthetic or protective purposes.

Product	Image	Description
4017 Aluminum Diamond Plate		The 5 Bar 4017 Aluminum Diamond Plate provides excellent anti-slip performance with its unique five parallel diamond-patterned design. It is an ideal choice for industrial flooring, loading platforms, and vehicle flooring. This product not only offers good corrosion resistance and medium strength but also provides high visual recognition, making it suitable for areas requiring increased friction and visual guidance while being both aesthetically pleasing and practical.
5 Bar 4017 Aluminum Tread Plate		The 5 Bar 4017 Aluminum Tread Plate features five orderly arranged pattern bars, offering good anti-slip effect and impact resistance. It is widely used in walkways, stair treads, vehicle pedals, and ship decks, where high slip resistance is required. Additionally, its excellent formability and processing performance make it equally outstanding in the construction and transportation sectors.
3 Bar 4017 Aluminum Tread Plate		The 3 Bar 4017 Aluminum Tread Plate is characterized by three pattern bars, balancing decorative and functional purposes. This product offers a finer visual effect, making it suitable for indoor decoration, tool box coverings, and signage panels that require high aesthetic standards, while still maintaining a certain level of anti-slip functionality. It is a combination of industrial aesthetics and practicality.

4017 Aluminum Tread Plate Applications

Application Area	Specific Applications	Description
Transportation	Truck cargo areas, trailer floors, vehicle floors, aircraft floors	The 4017 aluminum tread plate is used as flooring material in truck cargo areas and trailer floors. Its excellent corrosion resistance protects against the erosion from rain and road salt, while its unique anti-slip pattern structure provides reliable traction even under wet conditions, ensuring safety during loading and unloading processes.
Construction	Stair treads, walkways, paths, and floors	Stair treads and walkways made from 4017 aluminum tread plates are ideal safety materials for high foot traffic areas due to their lightweight high strength and anti-slip surface treatment. Its wear resistance ensures long-term stable use in outdoor and industrial environments, reducing maintenance frequency.
Architectural Applications	Wall panels, decorative strips, functional and aesthetic design elements	Wall panels and decorative strips leverage the decorative and practical advantages of 4017 aluminum tread plates. Not only do they enhance the metallic feel of building facades or interior spaces, but they also serve as protective layers, resisting mechanical impacts, scratches, and corrosion from damp environments.
Industrial Use	Toolboxes, storage cabinets, and other durable, corrosion-resistant enclosures	Toolboxes and storage cabinets use 4017 aluminum tread plates as enclosure materials. Its robustness and corrosion resistance make it especially suitable for industrial and outdoor environments, effectively protecting the internal tools and equipment from impacts and corrosion, while the anti-slip surface facilitates handling and placement.
Decoration	Signage, cosmetics packaging, interior design elements	Signage and cosmetics packaging use 4017 aluminum tread plates with a mirror-polished finish and film coating. This not only enhances visual appeal and brand recognition but also improves resistance to oxidation and fingerprint marks, making it widely favored in high-end decoration, display, and retail environments.

Advantages of 4017 Aluminum Over Other Alloys

Advantage Category	Description
Cost-Effective	4017 aluminum is more cost-effective compared to commonly used alloys like 6061-T6. It offers lower material costs while still providing excellent anti-slip performance, making it a highly cost-effective choice for industrial and construction applications, especially for large-area uses where budget control is critical.
Versatility	4017 aluminum is highly versatile and can be compatible with various surface treatments, such as roller coating or coil coating. These treatments not only enhance its corrosion resistance and weatherability but also allow it to meet diverse design needs in terms of color and gloss, making it widely used in architectural decoration and signage.
Environmental Performance	Due to its lightweight and high strength, 4017 aluminum significantly reduces energy consumption and labor costs during transportation and installation. Additionally, its durability extends its lifespan, reducing replacement frequency and thus lowering environmental impact, making it an eco-friendly and efficient material solution.

4017 Aluminum Tread Plate combines functionality and aesthetics, making it the first choice for safety-critical and decorative projects. Its cross-industry adaptability, along with its highly competitive price, makes it a practical alternative to 3003 and 6061 alloys.

4017 Aluminum Tread Plate Manufacturing Process

‌Preparation Process‌

‌Melting and Casting‌: Raw materials are melted and cast according to the specified ratio;
‌Hot Rolling and Cold Rolling‌: The cast ingot is heated and hot rolled into billets, then cold rolled to the target thickness;
‌Embossing and Annealing‌: After cold rolling, the material is embossed, followed by continuous annealing to stabilize the material's properties;
‌Post-Processing‌: Stretching or transverse cutting to ensure surface flatness.

‌Heat Treatment Specifications‌

Annealing temperature range: 350–460℃, specific process adjusted according to plate thickness.

4017 Aluminum Tread Plate is a powerful and aesthetically pleasing material, making it the preferred choice for industries with high demands for durability, safety, and visual appeal.

Haomei Other Alloy Aluminum Tread Plate

Aluminum Tread Plate 3003

3003 Aluminum tread plate, commonly known as “diamond plate” or “floor plate”.
Aluminum Tread Floor Plate 6061

6061 aluminum tread plate is widely used due to its lightweight characteristics. It features a matte mill finish with a raised diamond pattern on the surface, which not only enhances its appearance but also provides excellent anti-slip performance.
