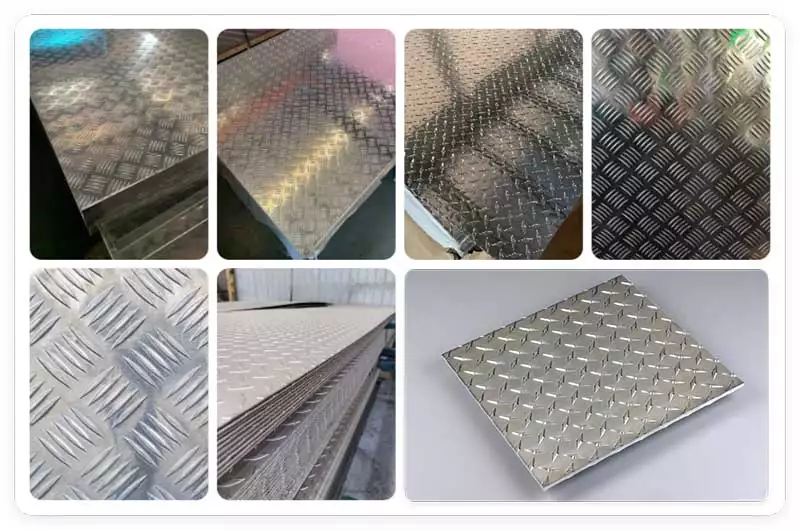

Aluminium floor plate, also known as tread plate or checker plate, is a durable and corrosion-resistant material widely used in industrial and architectural applications.
Aluminum floor is a material widely used in various industries, and is favored for its light weight, corrosion resistance and high strength. Common aluminum alloys for aluminum floor are 3003, 5086, and 6061.
Aluminum floor can meet different application requirements due to its diverse alloy types and characteristics. Whether in transportation, construction or marine applications, choosing the right type of aluminum floor can ensure the safety and durability of the structure.
Aluminium Floor Plate Materials and Alloys
Aluminium floor plates are usually made of alloys such as 3003, 5052, 5086, 5754, 5083, and 6061, each alloy having its unique properties.
- 3003 Alloy: Known for its good formability, corrosion resistance, and cost-effectiveness. Its surface is polished with raised diamond patterns to provide traction.
- 5052 Alloy: Offers excellent corrosion resistance, weldability, and fatigue strength, suitable for marine and commercial environments.
- 5086 Alloy: A high-strength, corrosion-resistant "marine-grade" alloy, ideal for shipbuilding and other harsh conditions.
- 6061 Alloy: A high-strength, heat-treatable alloy with excellent machinability and corrosion resistance, commonly used in structural applications.
Aluminium Floor Plate Technical Specifications
- Thickness: Depending on the application, thickness ranges from 0.5 mm to 25 mm.
- Size: Available in standard widths (e.g., 48-60 inches) and lengths (up to 192 inches).
- Pattern: Diamond, five-bar, three-bar, or custom designs to enhance grip.
- Surface Finish: Mill finish, anodized, powder-coated, or brushed, combining aesthetics with corrosion resistance.
Aluminium Floor Plate Thickness Options
- .063"(1/16") floor tread aluminum plate
- .100" floor tread aluminum plate
- .125"(1/8") floor tread aluminum plate
- .188"(3/16") floor tread aluminum plate
- .250"(1/4") floor tread aluminum plate
- .375"(3/8") floor tread aluminum plate
- .500"(1/2") floor tread aluminum plate
Aluminium Floor Plate Size Selection
- 1' x 1' (12 x 12) floor tread aluminum plate
- 1' x 2' (12 x 24) floor tread aluminum plate
- 1' x 4' (12 x 48) floor tread aluminum plate
- 1' x 10' (12 x 120) floor tread aluminum plate
- 1.5' x 10' (18 x 120) floor tread aluminum plate
- 2' x 2' (24 x 24) floor tread aluminum plate
- 2' x 4' (24 x 48) floor tread aluminum plate
- 2' x 5' (24 x 60) floor tread aluminum plate
- 2' x 6' (24 x 72) floor tread aluminum plate
- 2' x 8' (24 x 96) floor tread aluminum plate
- 2' x 10' (24 x 120) floor tread aluminum plate
- 3' x 3' (36 x 36) floor tread aluminum plate
- 3' x 4' (36 x 48) floor tread aluminum plate
- 3' x 10' (36 x 120) floor tread aluminum plate
- 4' x 4' (48 x 48) floor tread aluminum plate
- 4' x 8' (48 x 96) floor tread aluminum plate
- 4' x 10' (48 x 120) floor tread aluminum plate
- 5' x 8' (60 x 96) floor tread aluminum plate
Aluminium Floor Plate Pattern Choices
Aluminium Floor Plate Surface Finishes
-
-
-
-
-
Red aluminum diamond tread plate
-
Grey aluminum diamond tread plate
Haomei popular aluminum floor plate
3003 H22 Aluminum Floor Plate
3003 H22 aluminum floor, commonly known as "diamond plate" or "patterned plate", is famous for its good processing performance and adaptability to a variety of internal and external applications.
3003 H22 Aluminum Floor Plate Features
- Lightweight: 3003 aluminum alloy has a lower density, which is easy to handle and install.
- Surface treatment: Its surface is highly polished to form a smooth texture.
- Traction: The raised diamond pattern design on the surface enhances friction, providing better grip when walking or transporting.
- Corrosion resistance: This aluminum alloy has good corrosion resistance and is suitable for use in humid or corrosive environments.
- Application areas: Commonly used in truck compartments, support structures, walkways, trench covers and other occasions.
6061 T6 Aluminum Floor Plate
6061 T6 aluminum floor is also called "diamond plate" or "pattern plate" and is widely used due to its excellent mechanical properties and corrosion resistance.
6061 T6 Aluminum Floor Plate Features
- High strength: 6061 aluminum alloy has the highest strength among all heat-treated aluminums and is suitable for applications with high load-bearing requirements.
- Surface treatment: The surface has a matte mill texture, which is beautiful and not easy to leave fingerprints.
- Traction: The raised diamond pattern design provides excellent traction and ensures safety.
- Corrosion resistance: 6061 T6 aluminum alloy has excellent corrosion resistance and is suitable for use in various environments.
- Application areas: Widely used in truck compartments, support structures, walkways, trench covers, etc.
5086 H32 Aluminum Floor Plate
5086 H32 Aluminum flooring is considered a "marine-grade" flooring and is favored for its excellent strength and corrosion resistance.
5086 H32 Aluminum Floor Plate Features
- High Strength: 5086 aluminum alloy has higher strength than 5052 or 5083, suitable for withstanding greater pressure and loads.
- Corrosion Resistance: With above-average corrosion resistance, it is particularly suitable for marine environments and other harsh conditions.
- Application Areas: Commonly used in marine applications, support structures, walkways and trench covers, etc., especially suitable for occasions requiring high strength and corrosion resistance.
Typical Aluminum floor plate Chemical Composition
3003 H22 Aluminum Floor Plate Chemical Composition
| Element | Percentage |
| Al | 98.7 |
| Cu | 0.05 - 0.2 |
| Fe | 0.7 max |
| Mn | 1 - 1.5 |
| Si | 0.6 max |
| Zn | 0.1 max |
6061 T6 Aluminum Floor Plate Chemical Composition
| Element | Percentage |
| Al | 98 |
| Cr | 0.04 - 0.35 |
| Cu | 0.15 - 0.40 |
| Fe | 0.7 max |
| Mg | 0.8 - 1.2 |
| Mn | 0.15 max |
| Si | 0.4 - 0.8 |
| Ti | 0.15 max |
| Zn | 0.25 max |
5086 H32 Aluminum Floor Plate Chemical Composition
| Element | Percentage |
| Al | 95.4 |
| Cr | 0.05 - 0.25 |
| Cu | 0.1 max |
| Mg | 3.5 - 4.5 |
| Fe | 0.5 max |
| Mn | 0.2 - 0.7 |
| Si | 0.4 max |
| Zn | 0.25 max |
Typical Aluminum floor plate Mechanical Informations
3003 H22 Aluminum Floor Plate Mechanical Information
| Imperial | Metric | |
| Density | 0.1 lb/in3 | 2.78 g/cc |
| Ultimate Tensile Strength | 22, 000psi | 152 MPa |
| Yield Tensile Strength | 21, 000psi | 145 MPa |
| Fatigue Strength | 9, 000psi | 62.1 MPa |
| Shear Strength | 14, 000psi | 96.5 MPa |
| Melting Point | 1, 190 - 1, 210°F | 643 - 654°C |
6061 T6 Aluminum Floor Plate Mechanical Information
| Imperial | Metric | |
| Density | 0.1 lb/in3 | 2.7 g/cc |
| Ultimate Tensile Strength | 45, 000psi | 310 MPa |
| Yield Tensile Strength | 40, 000psi | 276 MPa |
| Fatigue Strength | 14, 000psi | 96.5 MPa |
| Shear Strength | 30, 000psi | 207 MPa |
| Melting Point | 1, 080 - 1, 205°F | 582 - 652°C |
5086 H32 Aluminum Floor Plate Mechanical Information
| Imperial | Metric | |
| Density | 0.0961 lb/in3 | 2.66 g/cc |
| Ultimate Tensile Strength | 42, 000psi | 290 MPa |
| Yield Tensile Strength | 30, 000psi | 207 MPa |
| Fatigue Strength | 21, 800psi | 150 MPa |
| Shear Strength | 35, 400psi | 175 MPa |
| Melting Point | 1, 085 - 1, 185°F | 585 - 640°C |
Aluminium Floor Plate Applications
Aluminium floor plates are mainly used for anti-slip flooring in industry, transportation (buses, trucks, ships), and architectural decoration. They are suitable for environments requiring resistance to seawater, pollution, and heavy wear.
- Industry: Flooring for walkways, ramps, docks, and platforms.
- Transportation: Truck beds, trailers, and vehicle steps.
- Architecture: Decorative flooring, stair treads, and structural components.
- Marine: Due to its corrosion resistance, it is used for ship decks and marine structures.
- Commercial: Retail spaces, exhibitions, and stages (e.g., interactive LED video displays for events).
Aluminium Floor Plate Advantages and Disadvantages
- Advantages: Lightweight, corrosion-resistant, low maintenance cost, and versatile applications.
- Disadvantages: Higher cost compared to steel; limited formability of some alloys (e.g., 6061-T6).
Aluminium Floor Plate Selection Criteria
- Load requirements: For areas with high foot traffic, choose thicker plates (e.g., 2-3 mm).
- Environment: For corrosive environments, choose marine-grade alloys (e.g., 5086).
- Traction needs: Patterned plates (e.g., diamond pattern) can enhance anti-slip performance.
- Cost: 3003 is economical, while 6061 and 5086 are premium materials for heavy-duty applications.
Haomei aluminum floor plate available sizes
| Stock Description | Thickness | Width | Length |
| 0.063" 3003 H22 Aluminum Floor Plate 48.00" × 120.00" | 0.063" | 48.00" | 120.00" |
| 0.063" 3003 H22 Aluminum Floor Plate 48.00" × 192.00" | 0.063" | 48.00" | 192.00" |
| 0.063" 3003 H22 Aluminum Floor Plate 48.00" × 96.00" | 0.063" | 48.00" | 96.00" |
| 0.1" 3003 H22 Aluminum Floor Plate 48.00" × 120.00" | 0.1" | 48.00" | 120.00" |
| 0.1" 3003 H22 Aluminum Floor Plate 48.00" × 192.00" | 0.1" | 48.00" | 192.00" |
| 0.1" 3003 H22 Aluminum Floor Plate 48.00" × 96.00" | 0.1" | 48.00" | 96.00" |
| 0.1" 3003 H22 Aluminum Floor Plate 60.00" × 120.00" | 0.1" | 60.00" | 120.00" |
| 0.1" 3003 H22 Aluminum Floor Plate 60.00" × 192.00" | 0.1" | 60.00" | 192.00" |
| 0.125" 3003 H22 Aluminum Floor Plate 48.00" × 120.00" | 0.125" | 48.00" | 120.00" |
| 0.125" 3003 H22 Aluminum Floor Plate 48.00" × 192.00" | 0.125" | 48.00" | 192.00" |
| 0.125" 3003 H22 Aluminum Floor Plate 48.00" × 96.00" | 0.125" | 48.00" | 96.00" |
| 0.125" 3003 H22 Aluminum Floor Plate 60.00" × 120.00" | 0.125" | 60.00" | 120.00" |
| 0.1875" 3003 H22 Aluminum Floor Plate 48.00" × 120.00" | 0.1875" | 48.00" | 120.00" |
| 0.1875" 3003 H22 Aluminum Floor Plate 48.00" × 192.00" | 0.1875" | 48.00" | 192.00" |
| 0.1875" 3003 H22 Aluminum Floor Plate 48.00" × 96.00" | 0.1875" | 48.00" | 96.00" |
| 0.1875" 3003 H22 Aluminum Floor Plate 60.00" × 120.00" | 0.1875" | 60.00" | 120.00" |
| 0.25" 3003 H22 Aluminum Floor Plate 48.00" × 120.00" | 0.25" | 48.00" | 120.00" |
| 0.25" 3003 H22 Aluminum Floor Plate 48.00" × 144.00" | 0.25" | 48.00" | 144.00" |
| 0.25" 3003 H22 Aluminum Floor Plate 48.00" × 192.00" | 0.25" | 48.00" | 192.00" |
| 0.25" 3003 H22 Aluminum Floor Plate 48.00" × 96.00" | 0.25" | 48.00" | 96.00" |
| 0.25" 3003 H22 Aluminum Floor Plate 60.00" × 120.00" | 0.25" | 60.00" | 120.00" |
| 1/8" 6061 T6 Aluminum Floor Plate 48.00" × 192.00" | 1/8" | 48.00" | 192.00" |
| 3/16" 6061 T6 Aluminum Floor Plate 48.00" × 192.00" | 3/16" | 48.00" | 192.00" |
| 1/4" 6061 T6 Aluminum Floor Plate 48.00" × 192.00" | 1/4" | 48.00" | 192.00" |
| 1/4" 6061 T6 Aluminum Floor Plate 60.00" × 192.00" | 1/4" | 60.00" | 192.00" |
| 3/8" 6061 T6 Aluminum Floor Plate 48.00" × 144.00" | 3/8" | 48.00" | 144.00" |
| 3/8" 6061 T6 Aluminum Floor Plate 48.00" × 192.00" | 3/8" | 48.00" | 192.00" |
| 3/8" 6061 T6 Aluminum Floor Plate 60.00" × 192.00" | 3/8" | 60.00" | 192.00" |
| 1/2" 6061 T6 Aluminum Floor Plate 60.00" × 192.00" | 1/2" | 60.00" | 192.00" |
| 3/16" 5086 H32 Aluminum Floor Plate 48.00" × 144.00" | 3/16" | 48.00" | 144.00" |
| 3/16" 5086 H32 Aluminum Floor Plate 48.00" × 192.00" | 3/16" | 48.00" | 192.00" |
