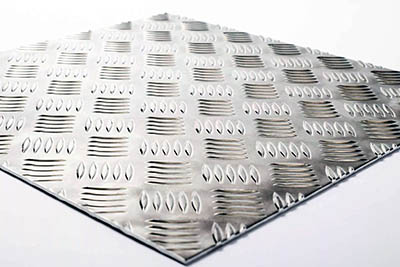

1mm aluminum checker plate, also known as aluminum tread plate or diamond plate, is a lightweight yet durable sheet of aluminum featuring a raised pattern, typically in a diamond or five-bar design. This material is widely used in various industries due to its excellent slip resistance, corrosion resistance, and aesthetic appeal.
The 1mm thickness strikes a balance between strength and weight, making it suitable for a range of applications.
Properties of 1mm Aluminium Checker Plate
- Lightweight: Aluminium is much lighter than steel, making 1mm checker plate easy to handle and install without compromising strength.
- Corrosion Resistance: Aluminium naturally forms a protective oxide layer that resists corrosion, making it an ideal choice for both indoor and outdoor applications.
- Strength-to-Weight Ratio: Despite its lightweight nature, aluminium has a high strength-to-weight ratio, allowing it to effectively bear heavy loads and impacts.
- Slip Resistance: The raised pattern on the surface enhances grip, providing excellent traction and reducing the risk of slipping and falling, especially in wet or greasy conditions.
Specifications of 1mm Aluminium Checker Plate
- Pattern Options: Common patterns include diamond and five-bar designs, which not only enhance traction but also add decorative elements to the material.
- Surface Treatment: The surface of the 1mm aluminium checker plate can be finished with methods such as milling, anodizing, or painting, depending on the desired aesthetics and functional characteristics.
- Custom Sizes: 1mm checker plate can be cut into various sizes to meet specific project requirements, making it suitable for different applications.
1mm Aluminium Checker Plate Pattern Options

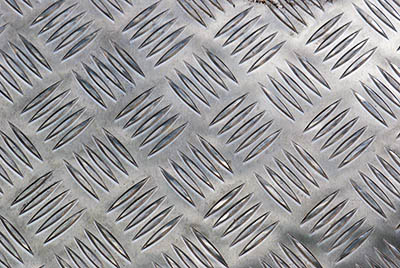

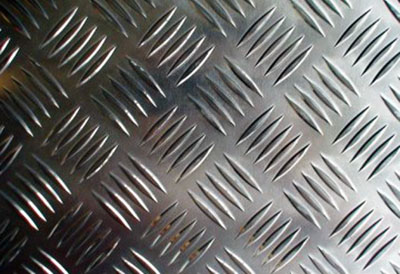

- Diamond (5-bar): Most commonly used for anti-slip applications, featuring raised diamond-shaped ribs.
- Diamond (1-bar): Linear ribs designed for directional grip, used for sidewalks and ramps.
- Orange Peel Texture: A decorative texture with small dimples, often used for interior decoration.
- Pattern Height: Typically raised 0.2–0.5 mm above the base plate to ensure grip while maintaining a slim profile.
1mm Aluminium Checker Plate Surface Finish Options
- Anodized: Enhances corrosion resistance and provides a matte or glossy finish. Common for outdoor applications .
- Painted/Coated: Available in custom colors for aesthetics or additional protection (e.g., polyester or fluorocarbon coatings) .
- Mill Finish: Uncoated surface with natural aluminum appearance, suitable for indoor use.
-
-
-
-
-
Red aluminum diamond tread plate
-
Grey aluminum diamond tread plate
1mm Aluminium Checker Plate Size Options
- 1' x 1' (12 x 12) aluminum diamond checker plate
- 1' x 2' (12 x 24) aluminum diamond checker plate
- 1' x 4' (12 x 48) aluminum diamond checker plate
- 1' x 10' (12 x 120) aluminum diamond checker plate
- 1.5' x 10' (18 x 120) aluminum diamond checker plate
- 2' x 2' (24 x 24) aluminum diamond checker plate
- 2' x 4' (24 x 48) aluminum diamond checker plate
- 2' x 5' (24 x 60) aluminum diamond checker plate
- 2' x 6' (24 x 72) aluminum diamond checker plate
- 2' x 8' (24 x 96) aluminum diamond checker plate
- 2' x 10' (24 x 120) aluminum diamond checker plate
- 3' x 3' (36 x 36) aluminum diamond checker plate
- 3' x 4' (36 x 48) aluminum diamond checker plate
- 3' x 10' (36 x 120) aluminum diamond checker plate
- 4' x 4' (48 x 48) aluminum diamond checker plate
- 4' x 8' (48 x 96) aluminum diamond checker plate
- 4' x 10' (48 x 120) aluminum diamond checker plate
- 5' x 8' (60 x 96) aluminum diamond checker plate
Haomei 1mm aluminium checker plate available grades
Common Alloys for 1mm Aluminium Checker Plate
- 1000 Series (e.g., 1050, 1060): High purity (aluminum content over 99%), very suitable for cost-sensitive applications requiring basic corrosion resistance. Tensile strength in H14 temper is 90–120 MPa.
- 3003 (Al-Mn alloy): Higher strength (tensile strength in H24 temper is 180–220 MPa) and better corrosion resistance than the 1000 series, suitable for structural uses such as trailer flooring.
- 5052 (Al-Mg alloy): Offers higher strength and better formability, commonly used in marine environments.
Material Tempers of 1mm Aluminium Checker Plate
- H14/H24: Semi-hard temper, balancing strength and workability, commonly used for 1mm thick plates.
- O (Annealed): The softest temper, suitable for deep drawing, but with lower rigidity.
-
1mm aluminium checker plate 3003
1mm aluminium checker plate 3003 is known for its excellent corrosion resistance and formability, making it an ideal choice for decorative applications and is often used in wall panels and storage units.
-
1mm aluminium checker plate 4017
1mm aluminium checker plate 4017 has good weldability and medium strength and is suitable for truck beds, trailers, walkways and floors.
-
1mm aluminium checker plate 6061
1mm aluminium checker plate 6061 is known for its high strength and versatility and is often used in floors, ramps, bridge decks, channels, drain covers, platforms and stair treads.
-
1mm aluminium checker plate 5052
1mm aluminium checker plate 5052 has excellent corrosion resistance and weldability, making it a popular choice for marine applications such as boat decks and fuel tanks, as well as automotive components.
Other Popular Aluminum Checker Plate Thickness Options
Applications of 1mm Aluminium Checker Plate
- Flooring: Crucial for slip resistance in commercial kitchens, restaurants, and industrial environments.
- Wall Cladding: Commonly used as decorative wall panels in residential and commercial buildings, providing an industrial look while protecting walls.
- Vehicle Trailers: Frequently used in trailers and truck beds, providing a durable, slip-resistant surface for transporting goods.
- Staircases: Suitable for stair treads and platforms, enhancing safety in both indoor and outdoor stair applications.
- Workshops and Garages: Ideal for flooring in workshops, garages, and other areas using heavy equipment, offering durability and slip resistance.
